Switch LNX-C500-T (5* 10/100TX) | EOT -40~75C
LNX-C500-T

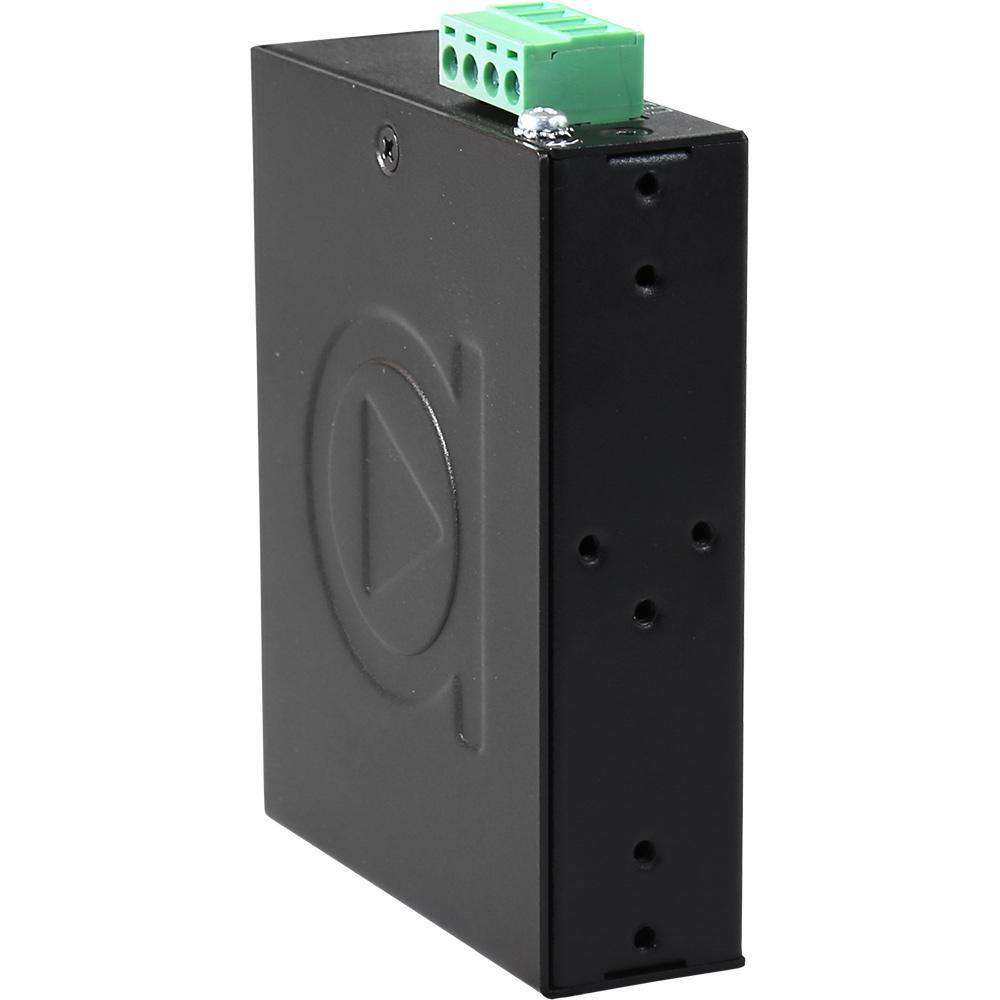

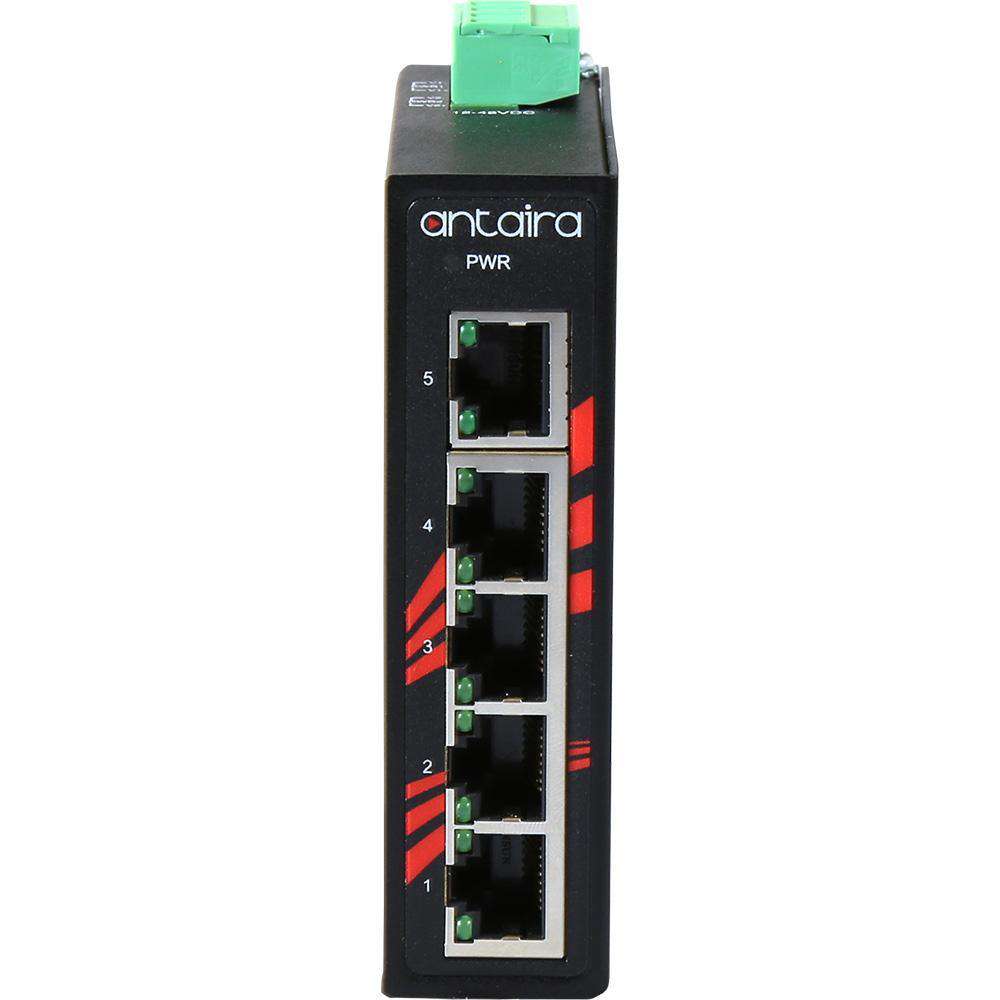

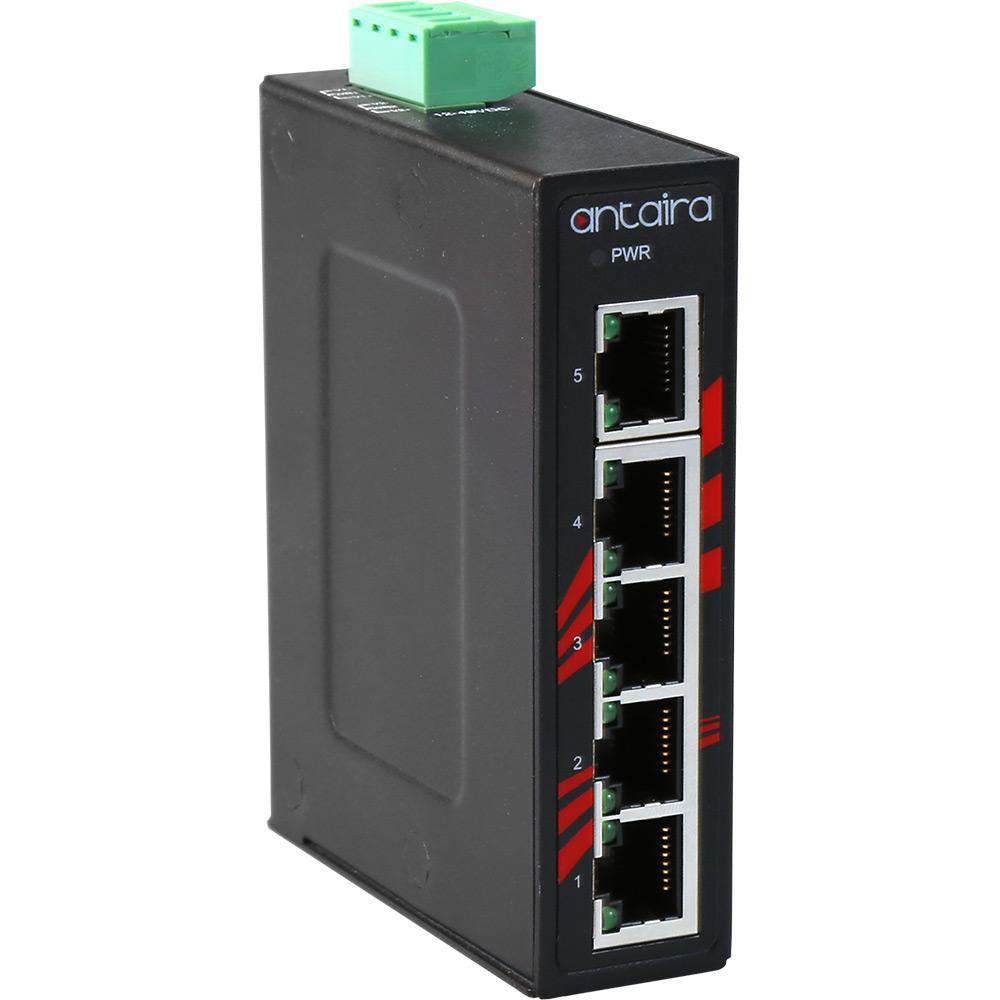

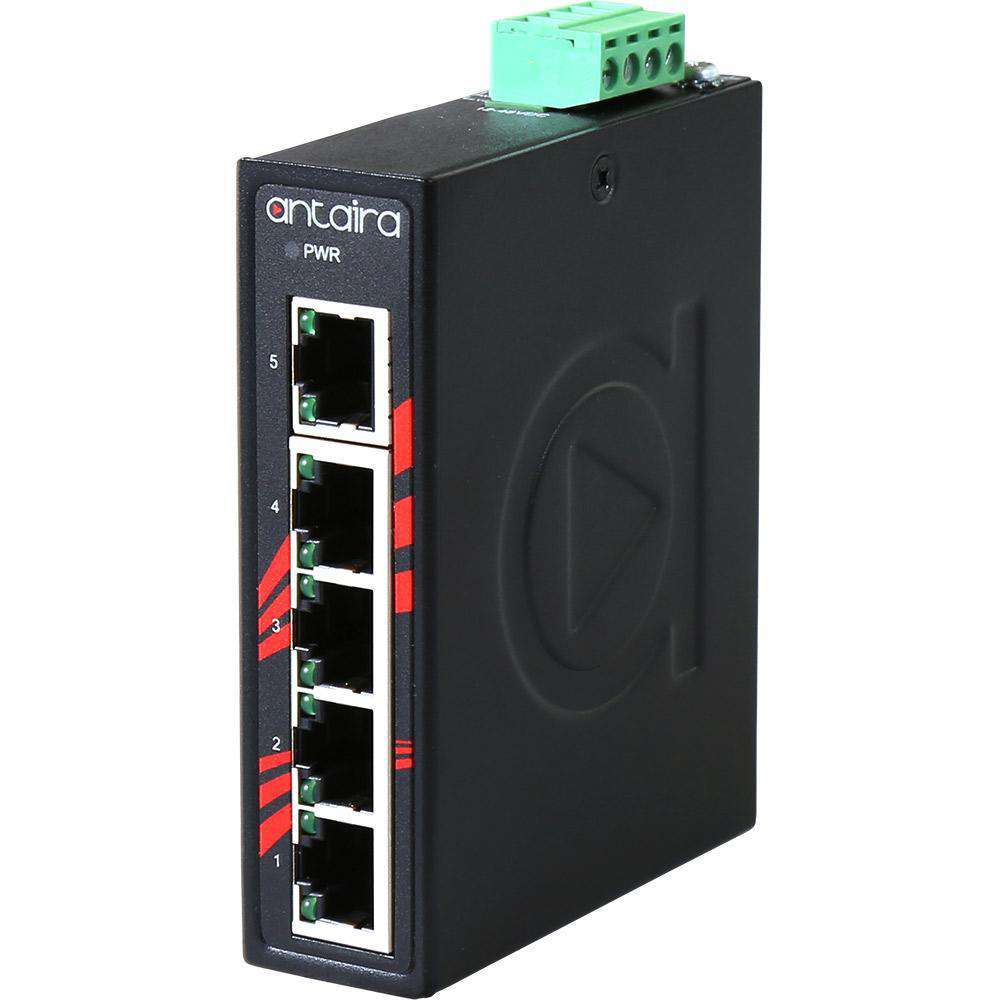

The Antaira LNX-C500-T compact industrial unmanaged Ethernet switch is IP30-rated and DIN-Rail mountable. The LNX-C500-T is equipped with 5*10/100Tx RJ45 Ethernet ports and offers a backplane speed of 1gbps. The compact form factor of this industrial switch is 30% smaller, allowing for more versatile deployment.
This product series provides high EFT and ESD protection against unregulated voltage and is suitable for harsh environments. It also supports an extended operating temperature range from -40 to 75°C.
The LNX-C500-T is an ideal industrial networking product for applications such as power/utilities, water and wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.
- Compact industrial-grade design
- Supports 5*10/100Tx
- Supports Auto MDI/MDI-X function
- Store-and-Forward switching architecture
- 8K MAC address table
- Surge protection: 2,000 VDC support
- ESD protection: 6,000 VDC support
- Redundant power input design: 12~48VDC
- IP30 rugged metal enclosure design
- DIN-Rail and wall-mount support
- Operating temperature range: -40° to 75° C
- 5-Year warranty
