Mini-PC MPC-6LAN-N3700 (Intel Pentium N3700, 6 Intel I225-V 2.5GbE)
Price excludes VAT
298.00€
Sale price
Price excludes VAT
298.00€
Regular price
Total with VAT (23%): 366.54€
Shipping calculated at checkout.
MPC-6LAN-N3700
- Intel® Pentium Processor N3700
- SO-DIMM DDR3L slot (8GB Max.)
- 6x 2.5GbE LAN (Intel I225-V)
- HDMI
- mSATA SSD
- MiniPCIe for 3G/4G or Wlan/Bluetooth (SIM card slot)
- Perfect for use as a router (e.g. pfsense, OPNsense, etc.)
| Operating Properties | Operating temperature: -10°C to 60°C Operating humidity: 0%-95% (non-condensing) |
| CPU | Intel® Pentium N3700 processor 4 cores, 4 threads 1.60 - 2.40 GHz 2MB L2 cache 6W max. TDP |
| Memory | 1 x SO-DIMM slot 1.35V DDR3L memory Up to 8GB 1600/1866MHz |
| LAN | 6 x 2.5GbE LAN ports (Intel I225-V) |
| Video | Intel HD Graphics for Intel Atom Processor Z3700 Series 1x HDMI |
| Audio | No audio port |
| Expansion Slots | 1 x full-size Mini-PCIe slot (for a 3G module or Wi-Fi/Bluetooth) 1 x mSATA storage |
| Rear I/O | 4 x RJ45 1 x DC |

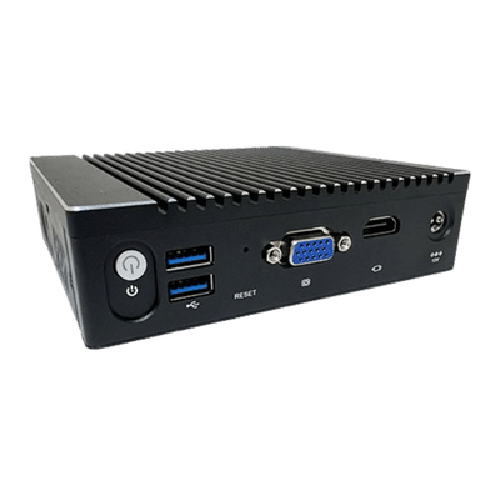

| Front I/O | 2 x USB 3.0 1 x VGA 1 x HDMI |
| Power Supply | AC 100~240V 12V DC-in 36W / 3.00A |
| Package Contents | 1 x User Manual 1 x MPC-6LAN-N3700 system 1 x AC/DC power adapter 1 x Power cord 1x Bracket 1x QC Card 1x Screws |
| OS Compatibility | Windows XP / Linux |
| System Fans | Fanless |
| Dimensions | 133.8 x 126.6 x 36.5 mm |
| Weight | 0,6 kg |
