Sku: MA1-NX-16GB
Product Type:
AI Edge box PC
Vendor:
MiTAC

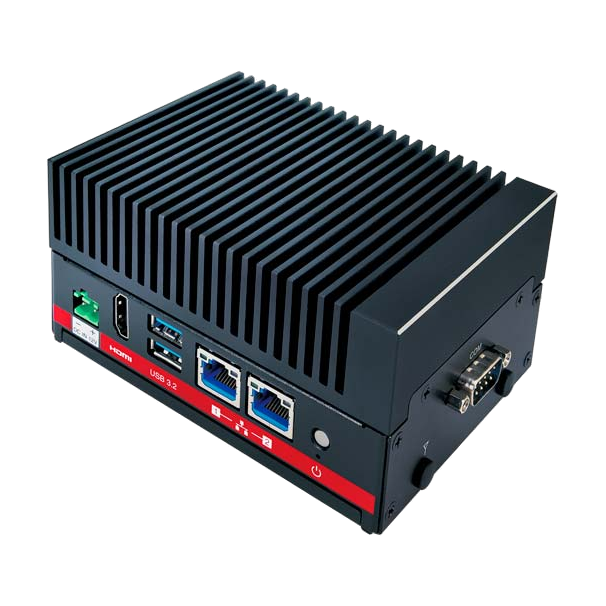

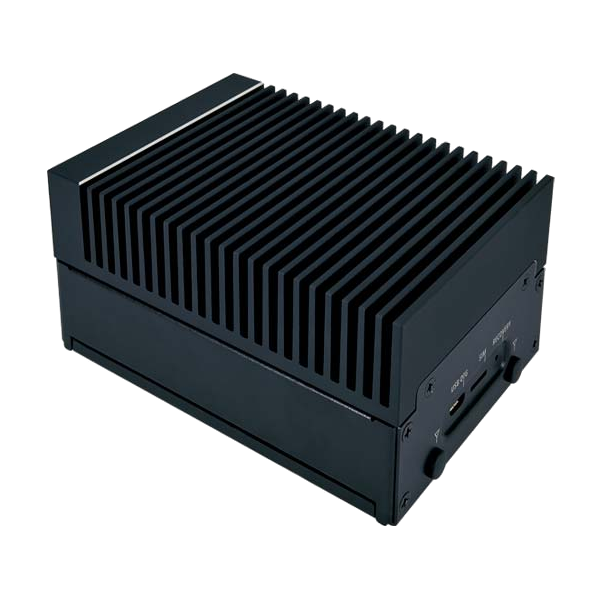

MA1 NX 16GB
Industrial Edge AI BoxPC alimentado pelo módulo NVIDIA® Jetson Orin™ NX de 16G
- Box PC NVIDIA® Jetson Orin™ Nano e NX, até 100TOPS/25W
- Design Industrial Fanless e Compacto
- Ampla temperatura de operação -25~60°C
- HDMI com resolução 4K@60Hz
- 2x RJ-45 GbE LAN
- 2x USB3.2 Gen2 Type A
- 1x D-Sub9 RS-232 (4-wire)
- M.2 2280 PCIe x4 NVMe de Alta Velocidade
- Suporta 5G/LTE e WiFi-6E
Caraterísticas
Especificações
Downloads
Caraterísticas
Introducing the Latest Industrial Edge AI Computer
Introducing the latest industrial Edge AI Computer, MA1, a cutting-edge solution powered by the formidable NVIDIA Jetson Orin NX & Nano SOM. Designed to excel in various industrial applications, this compact Box PC is compatible with NVIDIA Jetson Orin Nano and NX SOM, delivering exceptional AI performance with up to 100TOPS.
Supporting both NVIDIA® Jetson Orin™ NX and Nano SOMs, delivering 20~100 TOPS of AI performance at the edge, even in harsh environments.
The 1st desktop processor with Intel new hybrid technology 8+8 cores to intelligently allocate resource.
Public Safety
- Disaster Response
- Anomaly Detection
- Infrastructure Protection
Smart Retail
- Asset Protection
- Autonomous Shopping
- Customer and Store Analytics
Traffic Management
- Real Time Alerts
- Incident Detection
- Speed Estimation
-25~60°C Wide Temperature
Thrive in extreme conditions with an operating temperature range of -25°C to 60°C , providing unmatched reliability for diverse industrial applications.

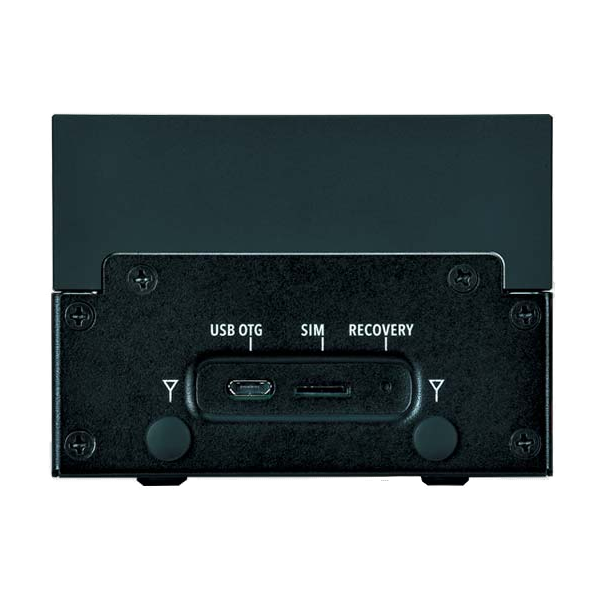

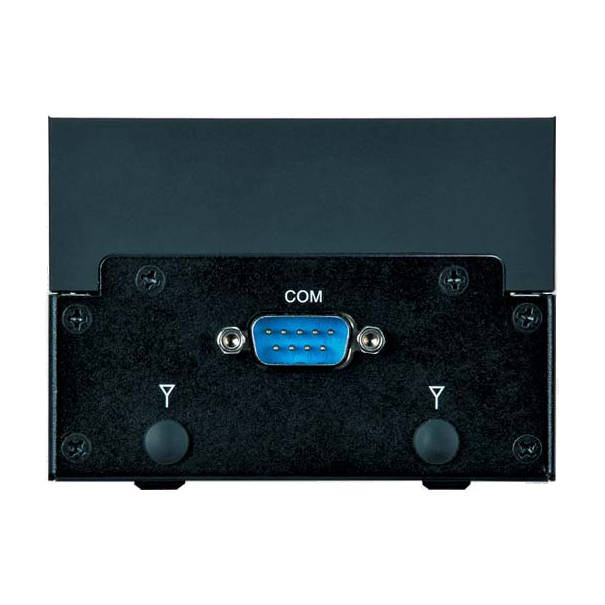

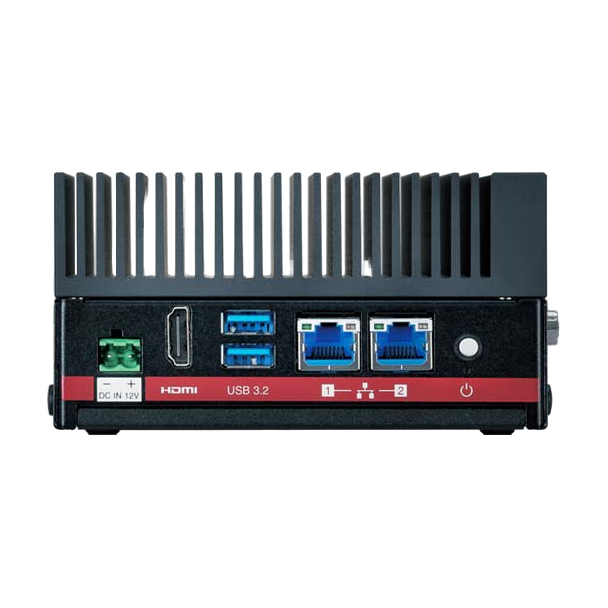

MA1 IO
MA1 Dimension
Especificações
| MA1 (MA1) Specifications | |||
|---|---|---|---|
| SYSTEM | NVIDIA® Jetson Orin™ Compatible Module | NVIDIA® Jetson Orin™ Nano 4GB Module (7~10W) / NVIDIA® Jetson Orin™ Nano 8GB Module (7~15W) / NVIDIA® Jetson Orin™ NX 8GB Module (10~20W) / NVIDIA® Jetson Orin™ NX 16GB Module (10~25W) | |
| DISPLAY INTERFACE | 1 x HDMI 2.0 Type A, Up to 3840 x 2160 at 60 Hz Resolution | ||
| I/O PORT | 2 x USB 3.2 Gen 2 Type A / 1 x USB2.0 MicroUSB OTG with Recovery Button (for Recovery Mode Only) | ||
| EXPANSION SLOT | 1 x M.2 3042/3052 B-Key Slot (USB3.2) for 5G/LTE Module / 1 x Nano-SIM Slot / 1 x M.2 2230 E-Key Slot (PCIe/USB2.0) for WiFi Module | ||
| REAR I/O | 2 x 1GbE RJ-45 / 1 x RS-232 DB9 (4-wire) | ||
| STORAGE | 1 x M.2 2280 M-Key Slot (PCIe x4 for NVMe) | ||
| POWER REQUIREMENT | POWER INPUT | 12V DC Input | |
| POWER ADAPTER | 60W AC-DC Power Adapter with 2-PIN Terminal Block | ||
| MECHANICAL | THERMAL DESIGN | Fanless | |
| DIMENSIONS (W X D X H) | 90 x 125 x 65 mm | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | -25°C ~ 60°C | |
| OPERATING HUMIDITY | 10% ~ 95% R/H (Non-condensing) | ||
| CERTIFICATION | CE / FCC Class B | ||
| OS | OS SUPPORT | NVIDIA JetPack 5.1.1 (Ubuntu 20.04 with Linux Kernel 5.10 LTS) | |
| PACKING LIST | PACKAGE | 1 x Embedded System / 1 x AC-DC Power Adapter with 2-Pin Terminal Block / 1 x MicroUSB cable / 1 x Power Cord | |
