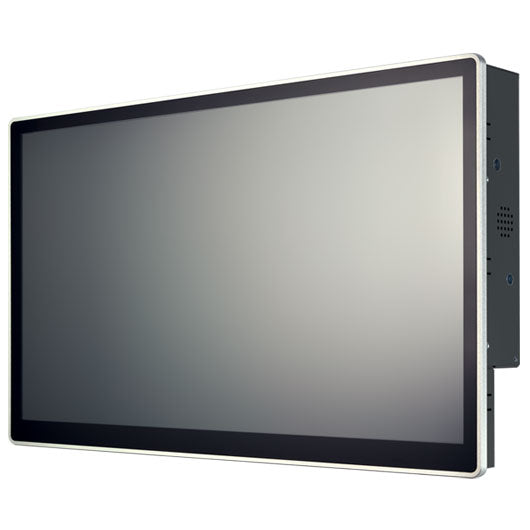

Panel PC 21.5' P210-10AI-N3350 (Apollo Lake N3350 dual core)
21.5' Panel PC with Intel® Celeron Apollo Lake processor
P210-10AI
- 21.5" TFT LCD with a service life of 30,000 hours
- IP65 front protection and fanless design
- Slim Panel PC with PCAP touch
- Intel® Apollo Lake-M N3350 processor
The P210-10AI is a 21.5 inch all-in-one Panel PC system based on the Intel Apollo Lake platform, designed for power efficiency and fanless operation.
For different industrial touch applications, it flexibly supports either resistive or capacitive touch solutions, with an IP65 protection rating on the front.
These features are designed to provide a stable and reliable product solution for different environments or industrial HMI applications.
Powerful Apollo Lake Processor
1.48X performance improvement
(CPU Passmark)
Power Consumption Reduction
Low Power Consumption & Fanless Design
ATOM
Fanless Design
Silent & Stable 24-7 Long-Term Operation
Slim & Sleek Design
Display & Touch
P-cap Multi Touch
Scratch resistance: 7H
FHD 16:9 natural viewing experience
Sunlight-readable display
Triple display
Supports three independent displays (VGA, HDMI, DP). HDMI & DisplayPort support resolutions up to 4K. Enhanced visual quality meets the requirements of high-precision applications.
DisplayPort 1.2 4K@60Hz
HDMI 1.4 4K@30Hz
Wide temperature range: 0 ∼ 50ºC
The P series Panel PC is designed for fanless applications under extreme temperature conditions from 0ºC to 50ºC.
IP65 dust & water protection
Front IP65
Sealed to prevent dust ingress and provide protection against water splashes
(within certain limits)

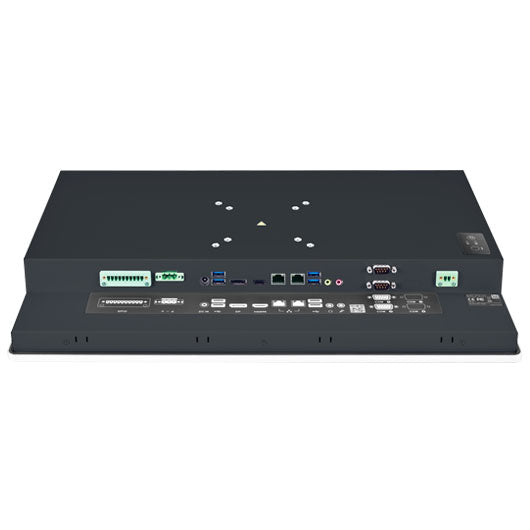

Rich I/O
Advanced power protection
Wide power range
8V ∼ 24V
Protection
ESD protection: +/-8kV (air), +/- 4kV (contact)
Surge immunity: 2kV
Mounting design
STEP 1
- Make a cut-out in the mounting fixture (e.g. a wall) according to the Panel PC cut-out dimensions
STEP 2
- Place the Panel PC on the fixture from the front side
- The sides of the bezel should remain visible from the outside
STEP 3
- Use the mounting kit to secure the Panel PC to the fixture
- First install the mounting clamp on the Panel PC, then tighten the screw to secure the clamp to the fixture
STEP 4
Installation complete
| Model | CPU | DisplayPort | HDMI | USB 3.0 / 2.0 | GPIO | RS-232 | LAN | Wi-Fi / BT | Power |
|---|---|---|---|---|---|---|---|---|---|
| P210-10AI-N3350 | N3350 | 1 | 1 | 4 / 0 | 1 | 2 | 2 | Optional | 8~24V |
| P210-10AI-N4200 | N4200 | 1 | 1 | 4 / 0 | 1 | 2 | 2 | Optional | 8~24V |
| P210-10AI (P210-10AI) Specifications | |||
|---|---|---|---|
| LCD | DISPLAY TYPE | 21.5" TFT-LCD | |
| MAX. RESOLUTION | 1920 x 1080 | ||
| MAX. COLORS | 16.7M (8 bit / color) | ||
| LUMINANCE (cd/m2) | 250 | ||
| VIEWING ANGLE (H/V) | 170° / 170° | ||
| LED BACKLIGHT LIFETIME (hrs) | 30,000 | ||
| HIGH BRIGHTNESS | Option | ||
| TOUCH SCREEN | TYPE | P-CAP | |
| TOUCH SCREEN | True-flat, 10 points | ||
| AR/AG | Option | ||
| SYSTEM | PROCESSOR | Intel® Apollo Lake-M N3350 Processor / Option: N4200 | |
| CHIPSET | Integrated Intel® SoC | ||
| SYSTEM MEMORY | DDR3L 1866 MHz / 2 x 204-pin SO-DIMM / Max. 8GB (Non-ECC) | ||
| ETHERNET | 2 x Intel® I211-AT Giga LAN | ||
| I/O PORTS | 1 x 3-pin Phoenix-type terminal block DC input / 2 x RS232 / 2 x RJ45 / 1 x 8bit GPIO terminal block / 1 x DisplayPort 1.2 / 1 x 2-pin remote power on/off / 1 x DC Jack / 4 x USB 3.0 / 1 x HDMI 1.4 / 1 x Line-out / 1 x Mic-in | ||
| EXPANSION SLOT | 1 x M.2 2280 B key / 1 x M.2 2230 E key (PCIe / USB) | ||
| STORAGE | 1 x SATA 2.5” HDD / SSD bay | ||
| STEREO SPEAKER | 2 x 2W | ||
| OS SUPPORT | Windows® 10 Enterprise 1703 | ||
| WATCHDOG TIMER | 1~255 steps via software program | ||
| POWER REQUIREMENT | POWER INPUT | DC input 8~24V | |
| POWER ADAPTER | AC to DC / DC19V / 3.4A / 65W adapter | ||

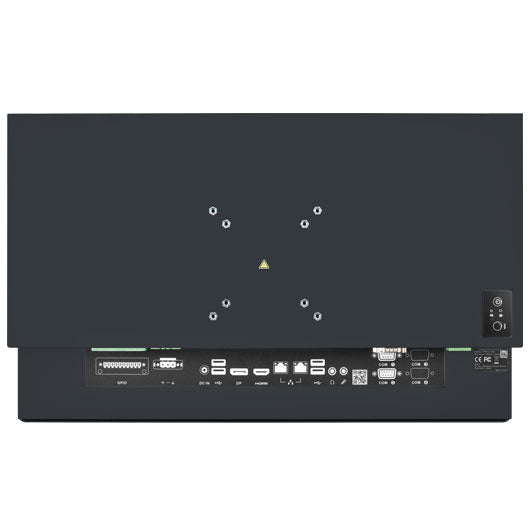

| MECHANICAL | MOUNTING | VESA 75/100mm / Panel Mount | |
| DIMENSIONS (W X D X H) | 508.3 x 308 x 68 mm | ||
| WEIGHT | 5.9kg | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | -10~50°C (14 ~ 122°F) | |
| STORAGE TEMPERATURE | -20 ~ 60°C (-4 ~ 140°F) | ||
| STORAGE HUMIDITY | 10% ~ 90% @40°C, non-condensing | ||
| VIBRATION RESISTANCE | Operating random vibration test: 5-500Hz, 0.3 Grms with HDD / 2Grms with SSD, in accordance with IEC 60068-2-64 | ||
| SHOCK RESISTANCE | Operating: 50 G peak (3 ms duration) | ||
| EMC | CE / FCC Class B | ||
| FRONT PANEL PROTECTION | IP65 compliant | ||
| PACKING LIST | PACKAGE | 1 x Driver CD / 1 x Quick Installation Guide / 1 x 3 pin Terminal Block Power Connector / US + EU Power Cord / 1 x Power Adapter (19V, 65W, DC Jack Type) / 1 x Panel PC / 1 x Screw Kit / 1 x Mounting Kit / 1 x 10 pin Male Terminal Connector | |
