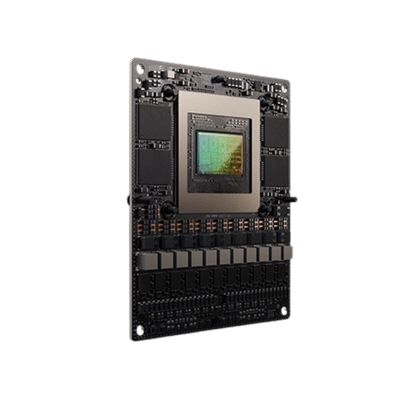

NVIDIA Jetson T4000 Module
Modulo NVIDIA Jetson T4000
900-13834-0000-000
- NVIDIA Jetson T4000 Module
- 1536 NVIDIA CUDA® cores and 64 Tensor cores
- 12-core 64-bit Arm® Neoverse®-V3AE CPU
- 64 GB LPDDR5X de 256 bits 273 GB/s
The Ultimate Platform for Physical AI and Robotics
The NVIDIA® Jetson T4000™ module delivers exceptional performance for physical AI and robotics. This includes up to 1200 FP4 TFLOPS of AI compute and 64 GB of memory, with configurable power between 40 W and 70 W. Compared with AGX Orin™, it provides more than 4x the AI compute, with exceptional energy efficiency and real-time reasoning.
This system-on-module features a GPU based on the NVIDIA Blackwell architecture and a transformer engine with Multi-Instance GPU (MIG) support to run the latest generative AI models with ease. NVIDIA Jetson Thor accelerates real-time, low-latency multi-sensor applications with a 12-core Arm® Neoverse®-V3AE CPU, 3x 25 GbE networking and extensive I/O options for sensor fusion. It also includes a range of accelerators, such as a third-generation Programmable Vision Accelerator (PVA), dual encoders and decoders, and an optical flow accelerator, among others.
Jetson Thor belongs to a new class of robotic computers, architected from the ground up to power next-generation physical AI applications. Featuring the new Blackwell GPU architecture, it is built for generative reasoning and multimodal sensor processing. It also supports a wide range of generative AI models, from Vision Language Action (VLA) models such as NVIDIA Isaac™ GR00T for humanoids to popular LLMs and VLMs such as Cosmos Reason. To provide a seamless cloud-to-edge experience, Jetson Thor runs the NVIDIA AI software stack for physical AI applications, including NVIDIA Isaac for robotics, NVIDIA Metropolis for agentic visual AI and NVIDIA Holoscan for sensor processing. You can also build AI agents for video analytics at the Edge using NVIDIA Blueprints, such as Video Search and Summarization (VSS), with NVIDIA Cosmos Reason as the VLM.
Our partner ecosystem provides all the carrier boards, design services, cameras and other sensors you need, as well as additional AI and system software. This accelerates solution development across industries ranging from robotics and smart spaces to retail, industrial, medical and many more.
The Jetson Thor module delivers production-ready performance, massive AI compute and sensor-processing capabilities for physical AI applications in a compact form factor. This makes it the ideal platform for developers seeking to unlock new possibilities in humanoid robotics and other physical AI applications.
NVIDIA Jetson Thor Series
| Jetson AGX Thor Developer Kit | Jetson T5000 | Jetson T4000 | |
| AI Performance | 2070 TFLOPS (FP4—Sparse) | 1200 TFLOPS (FP4—Sparse) | |
| GPU | 2560-core NVIDIA Blackwell architecture GPU with fifth-generation Tensor Cores Multi-Instance GPU (MIG) with 10 TPCs |
1536-core NVIDIA Blackwell architecture GPU with fifth-generation Tensor Cores Multi-Instance GPU (MIG) with 6 TPCs |
|
| Maximum GPU Frequency | 1.57 GHz | 1.53 GHz | |
| CPU | 14-core Arm® Neoverse®-V3AE 64-bit CPU 1 MB L2 cache per core 16 MB shared system L3 cache |
12-core Arm® Neoverse®-V3AE 64-bit CPU 1 MB L2 cache per core 16 MB shared system L3 cache |
|
| Maximum CPU Frequency | 2.6 GHz | ||
| Vision Accelerator | 1x PVA v3 | ||
| Memory | 128 GB 256-bit LPDDR5X 273 GB/s |
64 GB 256-bit LPDDR5X 273 GB/s |
|
| Storage | 1 TB NVMe M.2 Key M Slot | Supports NVMe over PCIe Supports SSD over USB3.2 |
|
| Video Encoding | 2X NVENCODE | 1X NVENCODE | |
| Video Decoding | 2X NVENCODE | 1X NVENCODE | |
| Camera | HSB camera via QSFP slot USB camera |
Up to 20 cameras via HSB Up to 6 cameras through 16x MIPI CSI-2 lanes Up to 32 cameras using Virtual Channels C-PHY 2.1 (10.25 Gbps) D-PHY 2.1 (40 Gbps) |
|
| PCIe* | M.2 Key M slot with x4 PCIe Gen5 M.2 Key E slot with x1 PCIe Gen5 |
Up to Gen5 (x8 lanes) Root port only—C1 (x1) and C3 (x2) Root Port or Endpoint—C2 (x1), C4 (x8), and C5 (x4) |
|
| USB* | 2x USB-A (3.2 Gen2) 2x USB-C (3.1) |
xHCI host controller with integrated PHY (up to) 3x USB 3.2 4x USB 2.0 |
|
| Networking* | 1x 5GBe RJ45 connector 1x QSFP28 (4x 25 GbE) |
4x 25 GbE | 3x 25 Gbe |
| Display | 1x HDMI 2.0b 1x DisplayPort 1.4a |
4x shared HDMI2.1 VESA DisplayPort 1.4a—HBR3, MST |
|
| Other I/O | QSFP connector M.2 Key E expansion slot (WLAN/BT, x1 PCIe, USB2.0, UART, I2C, I2S) M.2 Key M connector (NVMe for storage) PCIe x4 lane, I2C, PCIe x2 lane 2x 13-pin CAN headers 2x 6-pin automation headers LED JTAG connector (2x 5-pin header) 1x fan connector—12V, PWM, and Tach Audio panel header (2x 5-pin) Microfit power connector 2-pin RTC backup battery connector |
5x I2S/2x audio hub (AHUB), 2x DMIC, 4x UART, 4x CAN, 3x SPI, 13x I2C, 6x PWM outputs | 5x I2S/2x audio hub (AHUB), 2x DMIC, 4x UART, 3x SPI, 13x I2C, 6x PWM outputs** |
| Power | 40 W–130 W | 40 W–130 W | 40 W–70 W |
| Mechanical | 243.19 mm x 112.40 mm x 56.88 mm Thermal Transfer Plate (TTP) and optional fan or heat sink |
100 mm x 87 mm 699-pin B2B connector Integrated Thermal Transfer Plate (TTP) with heatpipe |
|
* Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.
** Low-speed I/O specification is subject to change.
