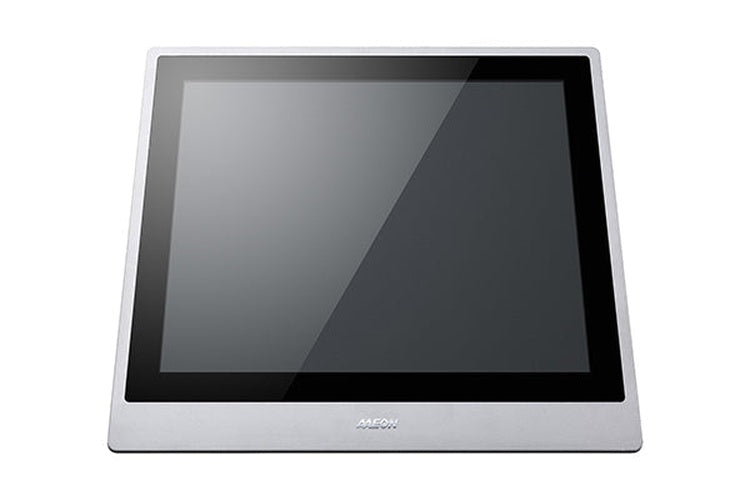

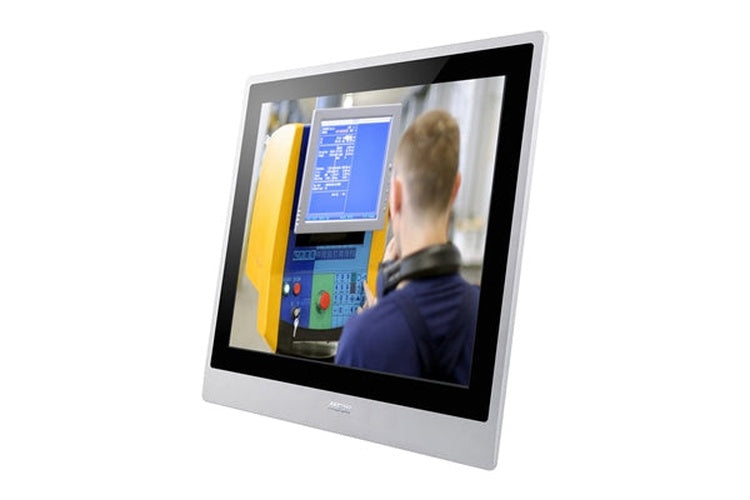

Monitor 19' OMNI-319MHTT-A1-1011 Resistive Touch
Price excludes VAT
835.00€
Sale price
Price excludes VAT
835.00€
Regular price
Total with VAT (23%): 1,027.05€
Shipping calculated at checkout.
OMNI-319MHTT-A1-1011
19' resistive touchscreen monitor
- 19" SXGA TFT LCD screen (1280 x 1024)
- Projected capacitive touchscreen or resistive touchscreen
- IP65 aluminum front protection
- DC 12 ~ 30V with overvoltage protection
- Optional built-in speakers
The OMNI series offers displays in 7 sizes: 10,4", 12,1", 15", 17", 19", 15,6" and 21,5". Models with PCAP or resistive touchscreens are available. The panels are sleek and robust, with an IP65 aluminium bezel and multiple protection features. They feature a 12V to 30V DC power input, OVP, UVP, OCP and reverse-polarity protection. Terminal block or power jack connections can be selected. They operate at temperatures from -10°C to 55°C. The Display Box Kit ensures quick installation with 3 screws. It provides access to VGA and HDMI interfaces, with optional built-in speakers.
Included
- OMNI-319M x 1
- VGA cable x 1
- USB cable for touch x 1
- Touch Driver CD x 1
- Phoenix Power Connector
| SYSTEM | |
| INPUT SIGNAL | VGA / HDMI |
| ON-SCREEN DISPLAY CONTROL | 5-key OSD keypad (Up, Down, Menu, Auto, Power) |
| I/O PORT | DB-15 VGA x 1 HDMI x 1 USB x 1 (to enable the T/S function) Line-in x 1 (for optional internal speaker) Power input x 1(Terminal Block 3pin) |
| OS SUPPORT | Windows® 7 32/64-bit, Windows® 8 32/64-bit, Windows® 10 64-bit, Linux Ubuntu 16.04 |
| MECHANICAL | |
| CONSTRUCTION | IP65 aluminium front bezel & SGCC chassis |

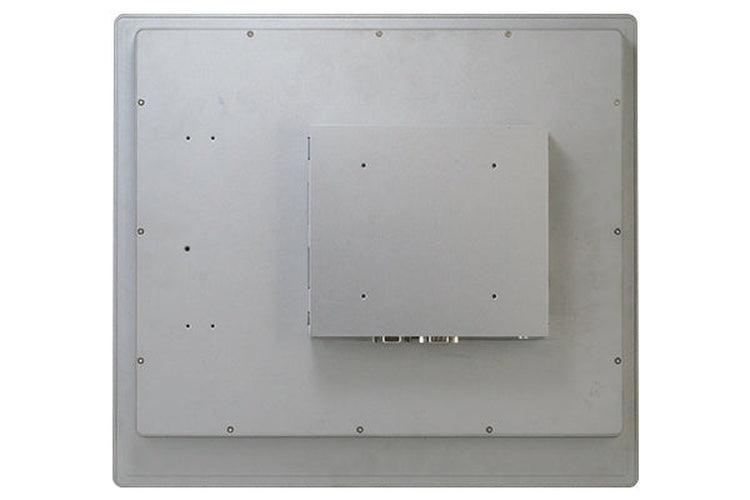

| MOUNTING | Panel Mount / VESA 100x100 / Stand |
| DIMENSIONS | 18.1" x 16.1" x 2.3" (460.8mm x 410mm x 59.1mm) |
| CARTON DIMENSIONS | 26.0" x 19.5" x 8.1 (661mm x 496mm x 206mm) |
| GROSS WEIGHT | 18.1 lbs (8.2 kg) |
| NET WEIGHT | 15.2 lbs (6.9 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 14°F ~ 131°F (-10°C ~ 55°C) with 0.5m/s airflow |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| STORAGE HUMIDITY | 10%~90% @104°F (40°C); non-condensing |
| VIBRATION | 1 Grms / 5~500Hz/random during operation |
| SHOCK | — |
| EMC | CE/FCC, Class A |
| POWER SUPPLY | |
| DC INPUT | DC 12~30V power input with 3 Pin Terminal Block |
| LCD | |
| DISPLAY TYPE | 19" TFT-LCD |
| MAX. RESOLUTION | 1280 x 1024 |
| MAX. COLOURS | 16.7M |
| LUMINANCE | 350 cd/m² |
| VIEWING ANGLE | 170°(H), 160°(V) |
| BACKLIGHT | LED |
| BACKLIGHT MTBF (HOURS) | 50000 |
| TOUCHSCREEN | |
| TYPE | Projected capacitive multi-touch or 5-wire resistive touchscreen (by model) |
| LIGHT TRANSMISSION | P-CAP (90% ± 3%), 5-wire resistive (80% ± 3%) |
| LIFETIME | — |
| 125530040F | 12V 40W FSP040-DHAN3 |
| 1702031802 | Power cord (US type) |
| 1702031803 | Power cord (European type) |
| 170203180E | Power cord (Japanese type) |
| AP-OT9789LA1000 | LCD monitor stand 230mm, LA-100 |
