Mitac MX1-10FEP-C246 (Coffee Lake C246 Xeon/Core-i)

MX1-10FEP-C246

Embedded fanless system for Intel® Coffee Lake Xeon / Core-i processors

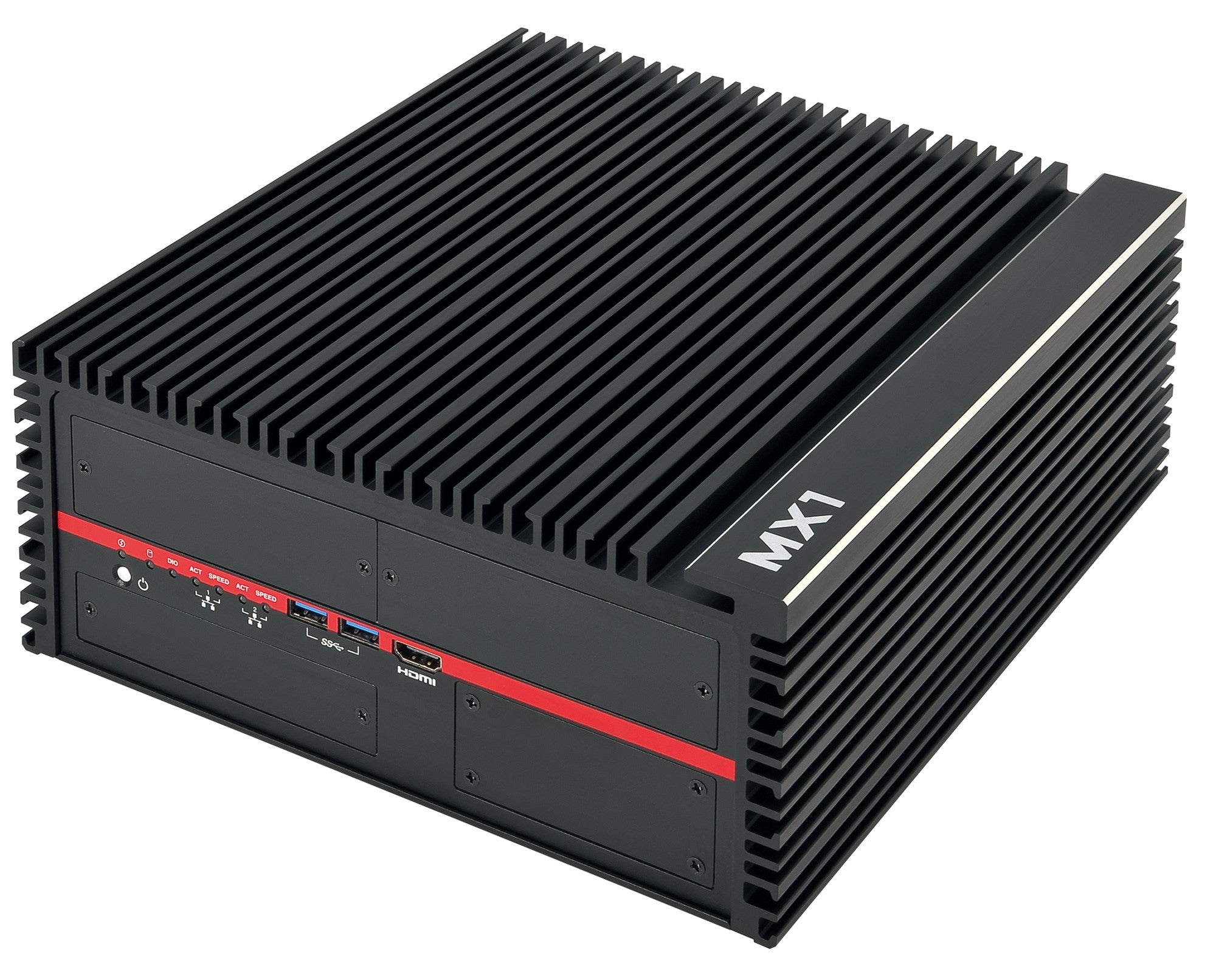

The MITAC MX1-10FEP embedded system is a next-generation workstation equipped with the Intel® Coffee Lake C246 chipset and capable of supporting Xeon and Core-I LGA1151 processors. With excellent performance, a powerful processor, OCP/OVP power protection and expandability, it is the ideal solution for complex tasks and most types of applications.

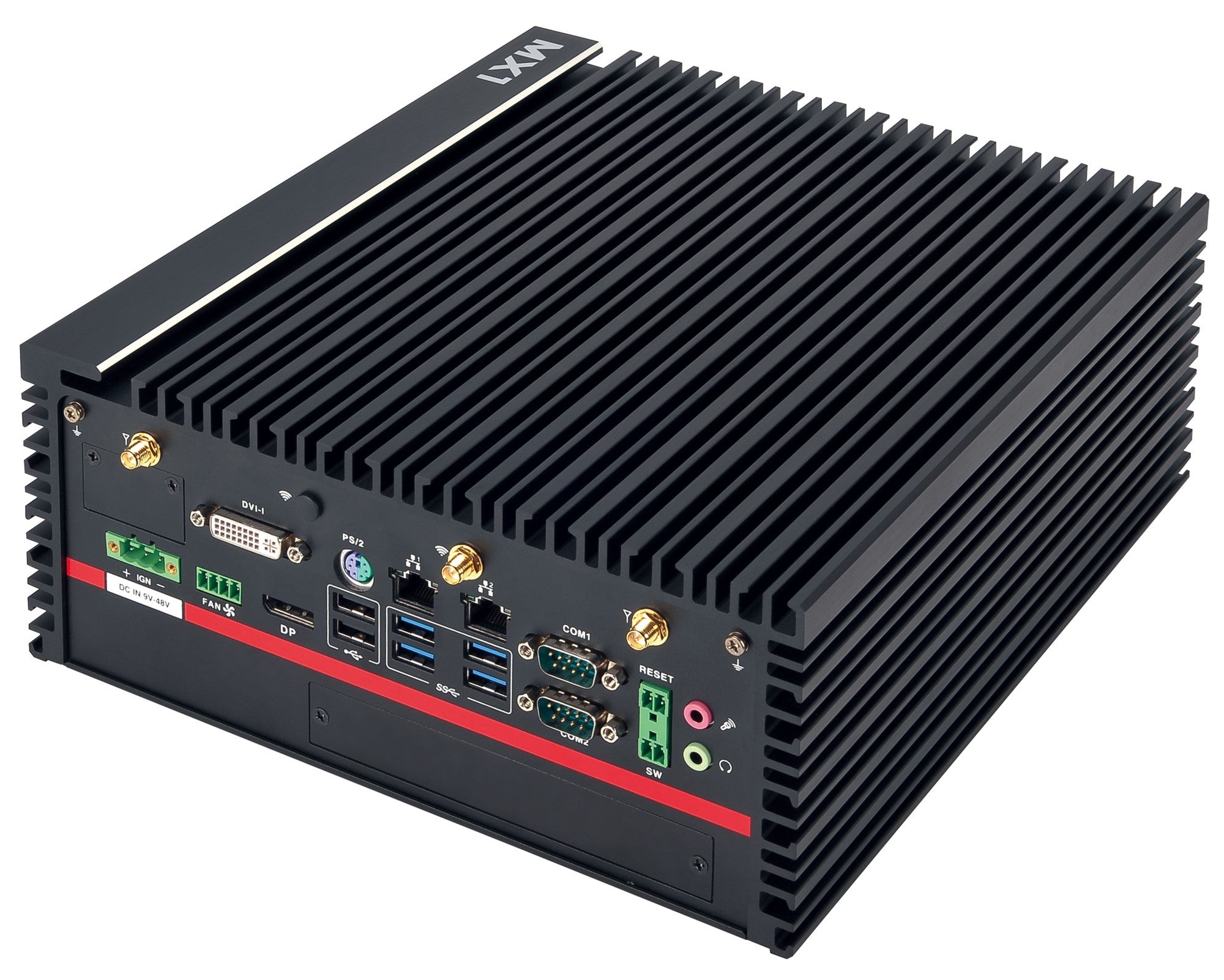

The fanless chassis design and the Xpandable module design of the 7,8-litre MX1-10FEP enable complex tasks to be performed in any working environment. The VESA mounting system saves space. Its flexibility also provides a wide range of I/O ports (including 2 x Ethernet RJ45, 8 x USB, 1 x HDMI, 1 x DVI-I, 1 x DisplayPort, 2 x COM, a PCIe X16 slot, a 3-pin terminal-block power input and 3 expansion ports) for connecting a variety of peripherals. Storage expansion supports 3 x high-density 2,5" hard drives. Two mPCIe slots (shared with mSATA) support SSD interfaces and wireless communication modules, enabling easy connection to Wi-Fi and Bluetooth networks, as well as 4G connectivity. DIO/COM/LAN/PoE/Power Ignition expansion modules extend the system's capabilities and enable its use in more applications.

Watch the video

Powerful Coffee Lake-S Xeon processor

Xeon

• Up to 1.36X performance improvement compared with the previous generation
• Fanless design with Xeon TDP up to 80W

Core i

• Up to 1.15X performance improvement compared with the 7th generation

ECC DDR4 memory

AI acceleration card (optional)

People Tracking

Multi-Person Pose Estimation

Semantic Segmentation

Intruder Detection

Pedestrian Detection

Traffic Monitoring

Versatile Expansion Modules

The versatile Xpansion Module design provides a range of I/O functions through an intelligent, cost-effective modular architecture, integrating all functions into a single system.

• Versatile I/O connectivity. Up to 12 LAN, 10 PoE, 10 COM, 16 DIO
• Power Ignition Xpansion module for vehicle applications

Supports three high-resolution displays

Supports three independent displays (DP + HDMI + DVI). HDMI & DisplayPort support high resolutions up to 4K. The enhanced visual quality meets the requirements of high-precision applications.

• DisplayPort 1.2 (4K@60Hz)
• HDMI 1.4 (4K@30Hz)
• DVI-I (FHD@60Hz)

Advanced Power Protection

Wide Power Range

9V~48V

Protection

• Reverse Power Input Protection
• Overvoltage Protection: 58V
• Overcurrent Protection: 15A
• ESD Protection: +/-15kV (air), +/-8kV (contact)
• Surge Protection: 3kW

Wide temperature range: -40~70º C

The MX1-10FEP features a patented aluminium enclosure that provides not only an aesthetic appearance but also fanless operation under extreme temperature conditions from -40 oC to 70 oC.

Certified

The MX1-10FEP is certified, and every unit undergoes rigorous environmental testing to ensure reliable performance under a variety of automation conditions.

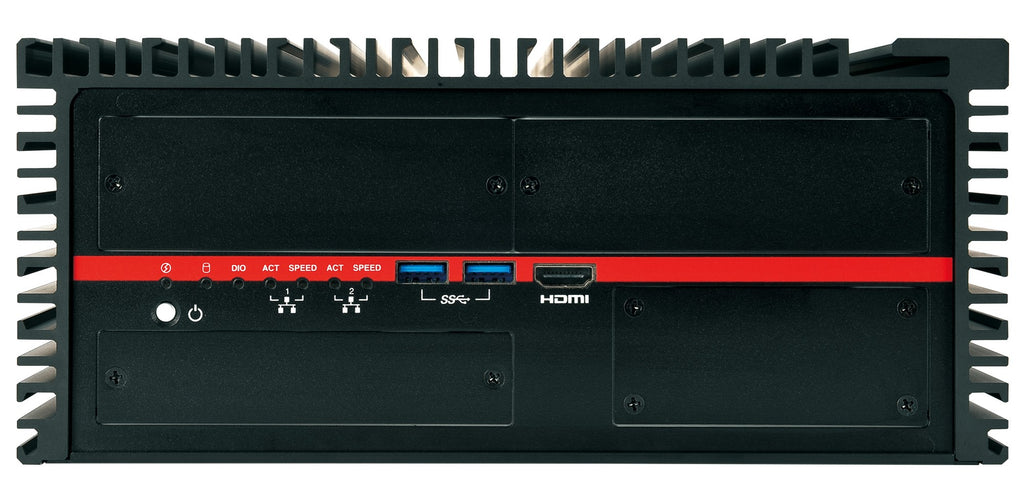

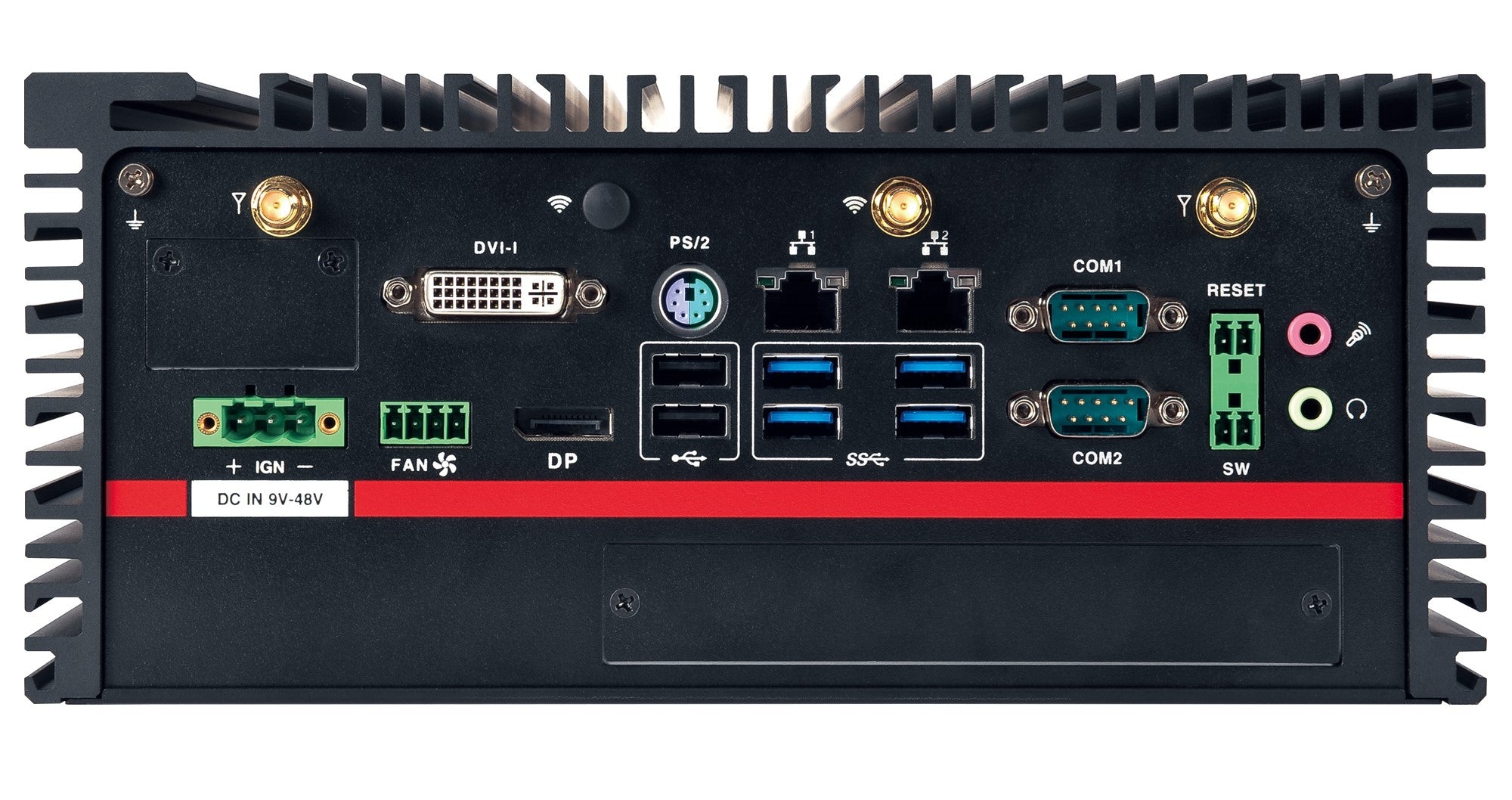

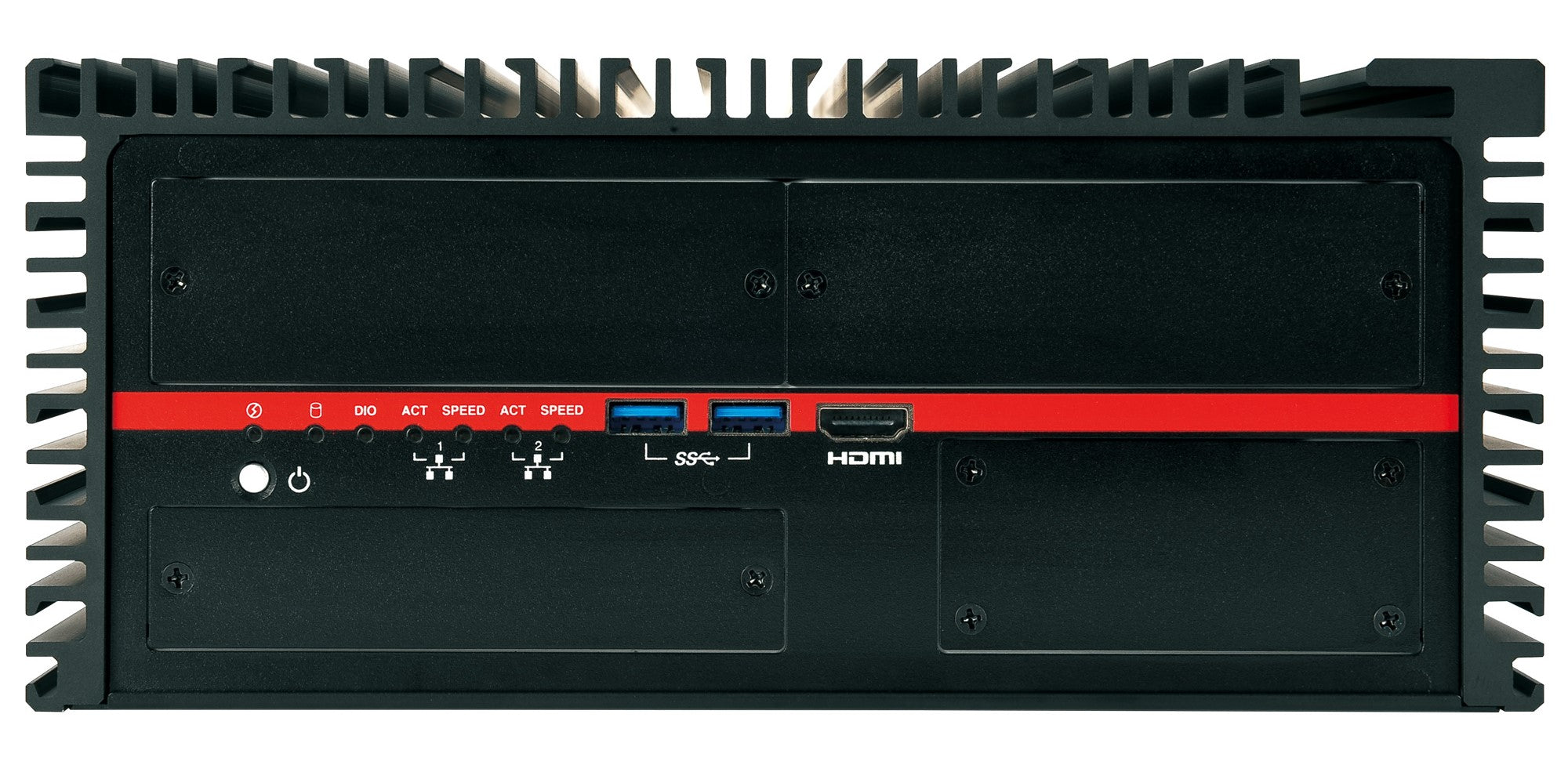

MX1-10FEP I/O

Dimensions (mm)
