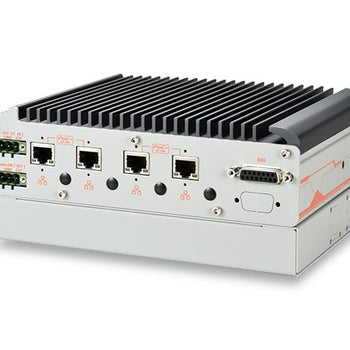

Neousys Nuvo-2600J (Intel® Elkhart Lake x6425E, 4 GbE, HDD, SuperCAP)

Price on request

SKU: Nuvo-2600J

Product type: PCs with PCIe/PCI expansion

Manufacturer: Neousys

Request a quote

Nuvo-2600J

Intel® Elkhart Lake Atom® x6425E fanless box PC with 4x GbE, 7/15mm 2.5" HDD and SuperCAP UPS

Nuvo-2600J-PoE

Intel® Elkhart Lake Atom® x6425E fanless box PC with 4x PoE GbE+, 7/15mm 2.5" HDD and SuperCAP UPS

Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/ 3.0GHz 12W processor
Rugged -25°C to 70°C fanless operation
4x Gigabit PoE+ ports via RJ-45 connector with screw-lock
1x isolated RS-485 port and 1x RS-422/485 or 3x 3-wire RS-232 ports
2x full-size mini-PCIe sockets and 1x M.2 3042/3052 B Key
1x front-accessible 2.5” SATA SSD tray (up to 15mm height) and 1x M.2 2280 SATA
1x patented cassette for a single-slot PCIe card (Nuvo-2600E), or 1x 2500 watt-second SuperCAP UPS (Nuvo-2600J)
8V to 35V wide-range DC input with remote control

The Nuvo-2600 series is an Intel® Elkhart Lake Atom® fanless box PC with flexible expansion options for a wide range of factory automation and machine vision applications requiring a compact footprint, Gigabit PoE+ capability, front-accessible data storage and CPU performance with low 12W power consumption.

Powered by an Intel® Elkhart Lake Atom® x6425E quad-core CPU, the Nuvo-2600 series delivers a 320% improvement in CPU performance compared with the previous Nuvo-2500E series. The Nuvo-2600 series has four Gigabit PoE+ ports and one USB 3.1 port with screw-lock mechanisms to secure camera connections. In addition to its internal M.2 2280 SATA SSD for system storage, the Nuvo-2600 has one front-accessible 2.5" HDD tray accommodating a 7-15mm 2.5" SSD/HDD with up to 5TB of storage capacity. It also has one isolated RS-485 port and isolated DIO to provide robust connections to industrial devices. For internal expansion, the Nuvo-2600 series provides two mini-PCIe sockets and one M.2 3042/3052 B Key socket to support 4G/ 5G mobile broadband.

To meet diverse deployment requirements, the Nuvo-2600 series is available in two variants. The Nuvo-2600E has a PCIe Cassette for an additional PCIe card, such as a USB or GbE frame grabber, isolated DIO or an industrial communication card. The Nuvo-2600J has an integrated SuperCAP UPS capable of withstanding power interruptions or voltage fluctuations in industrial environments. Featuring an Intel Elhart Lake Atom® quad-core CPU, wide-temperature operation, industrial I/O interfaces and an expansion Cassette module, the Nuvo-2600 series is an ideal multipurpose fanless box PC for factory automation and machine vision applications.

■ NEOUSYS MARKETING TEAM

System Core
Processor	Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/3.0GHz 12W processor
Graphics	Integrated Intel® UHD Graphics
Memory	Up to 32GB DDR4-3200 SDRAM via one SODIMM socket

Panel I/O Interface

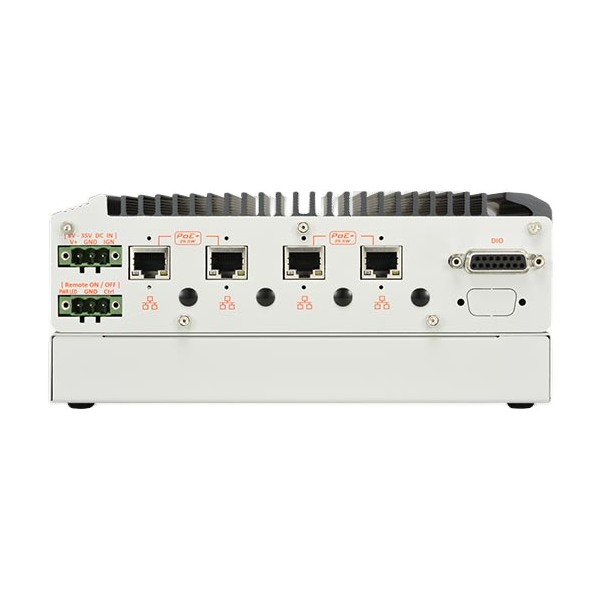

Ethernet port	4x Gigabit Ethernet ports via RJ-45 connectors using Intel® I210 with screw-lock
PoE capability	Compliant with IEEE 802.3at PoE+ PSE, with a maximum 25.5W output on a single PoE+ port. Compatible with 802.3at (PoE+) and 802.3af (PoE) PD

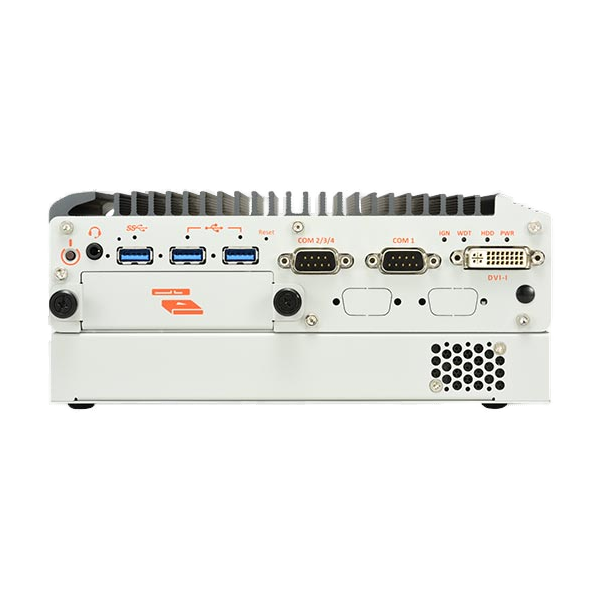

Video Port	Dual VGA and DVI display outputs via one DVI-I connector
USB	1x USB 3.2 Gen1 (5 Gbps) port with screw-lock 2x USB 2.0 ports with screw lock
Serial Port	1x isolated RS-485 port with 15 kV ESD protection (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 (COM2)
Isolated DIO	4-CH isolated DI and 4-CH isolated DO
Audio	1x 3.5 mm jack for mic-in and speaker-out

Internal I/O interface
PCIe	1x PCIe x4 slot @ 2-lane PCIe 3.0 signal in Cassette module (Nuvo-2600E only)
Mini PCI Express	1x full-size mini PCI Express socket with PCIe and USB 2.0 signals 1x full-size mini PCI Express socket with USB 2.0 signal
M.2 B Key	1x M.2 3042/3052 B Key (USB 3.1 + USB 2.0) for a 4G/ 5G module with dual internal micro SIM sockets

Storage Interface
M.2 SATA	1x M.2 2280 M Key socket (SATA interface only) for SATA SSD installation
SATA HDD	1x front-accessible HDD tray for 2.5" HDD/SSD installation (up to 15mm in height)

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8V to 35V DC input with built-in ignition power control (IGN/GND/V+)
Remote control & LED output	1x 3-pin pluggable terminal block for remote control and PWR LED output

SuperCAP UPS
Capacity	2500 watt-second (Nuvo-2600J only)

Mechanical
Dimensions	205 mm (W) x 156 mm (D) x 86 mm (H)
Weight	-
Mounting	Wall-mount bracket (optional)

Environmental
Operating temperature	-25°C to 70°C*
Storage temperature	-40°C ~ 85°C
Humidity	10%~90%, non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.7, Category 4
Shock	Operating, MIL-STD-810G, Method 516.7, Procedure I
EMC	CE/FCC Class A, according to EN 55032 & EN 55035

* For sub-zero operating temperatures, a wide-temperature HDD or Solid State Disk (SSD) is required.
