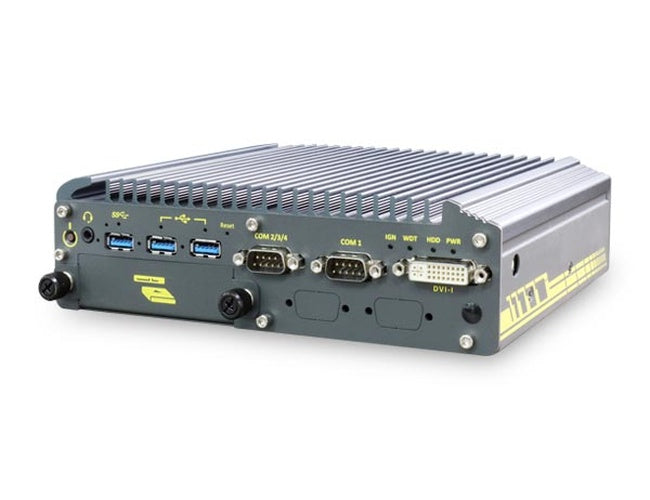

Neousys Nuvo-2610RL-H (Elkhart Lake x6425E, 4 M12 PoE, 43-160VDC)
Nuvo-2610RL-H
EN50155 & EN45545 Intel® Elkhart Lake Atom® x6425E railway fanless computer with 4x M12 PoE+ and 43V to 160V ultra-wide-range DC input
- Compliant with EN 50155 mandatory tests and EN 45545-2
- Rugged -40°C to 70°C fanless operation, compliant with EN 50155 Class OT4
- 43V to 160V wide-range DC input with 1500Vdc isolation
- Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/ 3.0GHz 12W processor

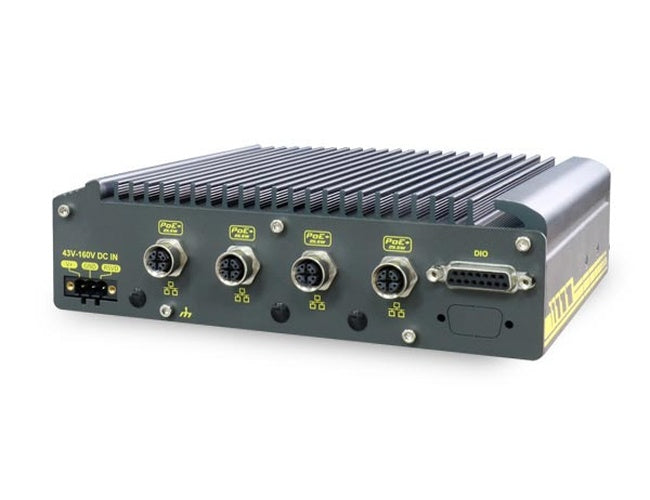

- 4x PoE+ GbE ports via M12 X-coded connectors
- 1x front-accessible 2.5" 15mm HDD tray and 1x M.2 2280 SATA SSD
- 2x full-size mini-PCIe sockets and 1x M.2 3042/3052 B Key
The Nuvo-2615RL series comprises EN50155- and EN45545-compliant, fanless Intel® Atom®-based railway computers for video-based rolling-stock applications such as NVR (network video recording) and video analytics.
The Nuvo-2615RL has a dedicated thermal design that meets the EN50155 OT4 class requirements for fanless operation from -40°C to 70°C, with maximum CPU performance and up to 50W of PoE+ delivery. To withstand challenging railway conditions, from voltage fluctuations to power outages, the Nuvo-2615RL features an isolated, wide-range 43V to 160V DC input design and a built-in SuperCAP UPS capable of sustaining more than 30 seconds of operation without a power supply. If the power outage exceeds the sustainable duration, the internal microcontroller (MCU) triggers a software shutdown before the SuperCAP energy is depleted, protecting the hardware and data while minimising maintenance costs.
Powered by the Intel® Elkhart Lake Atom® x6425E quad-core CPU, the Nuvo-2615RL series delivers 1.8x the CPU performance of Intel's previous Atom generation, Apollo Lake. The Nuvo-2615RL series features 4x PoE+ GbE ports with a total power budget of up to 50W for IP camera connectivity. In addition to the internal M.2 2280 SATA SSD for system storage, the Nuvo-2615RL has a front-accessible 2.5" HDD tray that accommodates a 2.5" SATA HDD/SSD up to 15mm in height and 5TB in capacity. For internal expansion, it provides two mini-PCIe sockets for WiFi, GNSS and CAN modules. It also features an M.2 3042/3052 B Key socket for 4G/5G mobile broadband modules.
Combining an Intel Atom® quad-core x6425E, fanless operation from -40°C to 70°C, M12 PoE+ connectivity, up to 5TB of data storage capacity, a 2500 wattsecond SuperCAP UPS, a 43V to 160V wide-range DC input, and EN50155 and EN45545 compliance, the Nuvo-2615RL series is the ideal rugged transportation computer for vision-based rolling-stock applications.
■ NEOUSYS MARKETING TEAM
| System Core | |
|---|---|
| Processor | Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/3.0GHz 12W processor |
| Graphics | Integrated Intel® UHD Graphics |
| Memory | Up to 32 GB DDR4-3200 SDRAM via one SODIMM socket |
| Panel I/O Interface | |
|---|---|
| Power over Ethernet | 4x IEEE 802.3at Gigabit PoE+ ports via Intel® I210 and M12 X-coded connectors Total PoE+ power budget: 50W (Nuvo-2615RL-H) |
| Video Port | Dual VGA and DVI display outputs via DVI-I connector |
| USB 3.1 | 1x USB 3.1 gen1 port with screw lock |
| USB 2.0 | 2x USB 2.0 ports with screw lock |
| Serial Port | 1x isolated RS-485 port with 15 kV ESD protection (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 (COM2) |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
| Expansion Bus | |
|---|---|
| Mini-PCIe | 1x full-size mini PCI Express socket with PCIe and USB 2.0 signals 1x full-size mini PCI Express socket with USB 2.0 signal |
| M.2 B Key | 1x M.2 3042/3052 B Key (USB 3.1 + USB 2.0) for a 4G/5G module, with a dual internal micro SIM socket |
| Storage Interface | |
|---|---|
| M.2 SATA | 1x M.2 2280 M Key socket (SATA interface only) for SATA SSD installation |
| SATA HDD | 1x front-accessible HDD tray for 2.5" HDD/SSD installation (up to 15mm in height) |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for isolated 43V to 160V DC input |
| Power Backup | |
|---|---|
| Capacity | 2500 watt-second (Nuvo-2615RL only) |
| Mechanical | |
|---|---|
| Dimensions | 205 mm (W) x 155 mm (D) x 58 mm (H) (Nuvo-2610RL) 205 mm (W) x 156 mm (D) x 86 mm (H) (Nuvo-2615RL) |
| Weight | 2.1kg (Nuvo-2610RL) 2.7kg (Nuvo-2615RL) |
| Mounting | Damping bracket (default) Wall-mount (optional) |
| Environmental | |
|---|---|
| Operating temperature | -40°C to 70°C*, compliant with EN50155 Class OT4 |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10%~90%, non-condensing |
| Vibration | IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) |
| Shock | IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) |
| EMC | EN 50155:2017, Clause 13.4.8 CE/FCC Class A, according to EN 55032 & EN 55035 |
| EN50155 | All mandatory sections of EN 50155:2017 Nuvo-2610RL: EN50155 Class S1, EN50155 C1 Nuvo-2615RL: EN50155 Class S3, EN50155 C2 |
| EN45545 | EN 45545-2 (Fire protection on railway vehicles) |
* For sub-zero operating temperatures, a wide-temperature HDD drive or Solid State Disk (SSD) is required.
