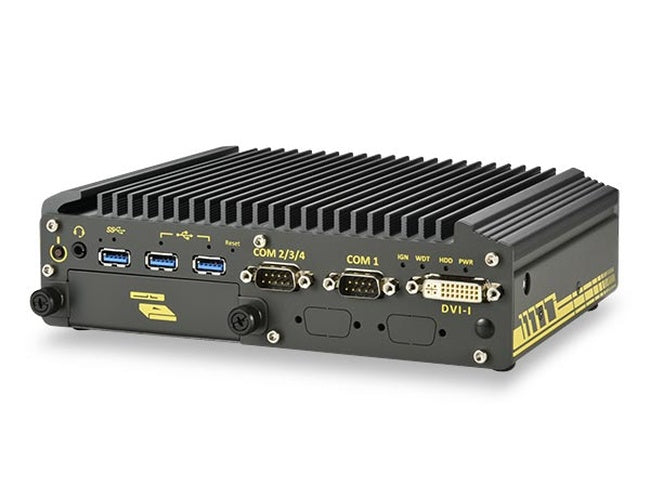

Neousys Nuvo-2610VTC (Elkhart Lake x6425E, 4 M12 PoE+, HDD 2.5)
Nuvo-2610VTC
Intel® Elkhart Lake Atom® x6425E in-vehicle fanless computer with support for M12 PoE+ and a 15mm 2.5” HDD/SSD
- Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/ 3.0GHz 12W processor
- Rugged fanless operation from -40°C to 70°C, compliant with EN 50155 Class OT4

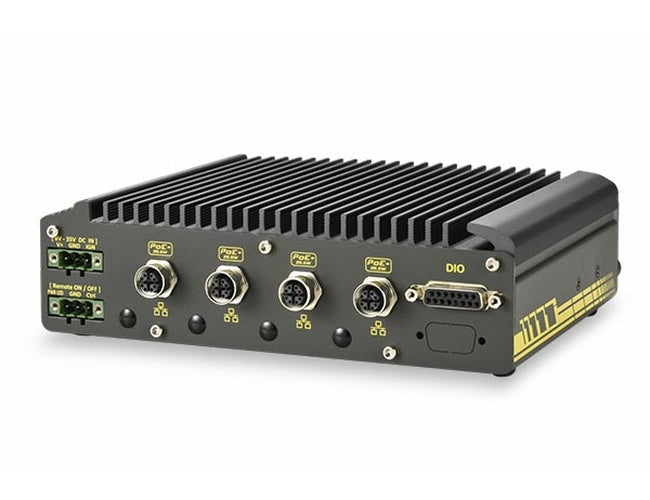

- 4x PoE+ GbE ports via M12 X-coded connectors
- 1x front-accessible 2.5" 15mm HDD tray and 1x M.2 2280 SATA SSD
- 1x M.2 3042/3052 B Key for 4G/5G mobile broadband
- 2x full-size mini-PCIe sockets for Wi-Fi/CAN/GNSS modules
- 8-35V wide-range DC input with built-in ignition power control
- EN 50155 and EN 45545 certified
The Nuvo-2610VTC series comprises rugged Intel® Atom®-based in-vehicle computers incorporating four M12 Gigabit PoE+ connectors and one front-accessible 2.5" HDD tray that supports HDDs/SSDs up to 15mm high. It is designed for a range of on-road, off-highway, and railway applications, from mobile gateways and data loggers to network video recorders (NVR).
Powered by an Intel® Elkhart Lake Atom® x6425E quad-core CPU, the Nuvo-2610VTC series delivers 1.8x the CPU performance of the previous generation. To provide robust Ethernet connectivity, the Nuvo-2610VTC series offers four Gigabit PoE+ ports via M12 x-coded connectors and two USB 3.1 ports with screw-lock mechanisms. In addition to the internal M.2 2280 SATA SSD for system storage, the Nuvo-2610VTC also has one front-accessible 2.5" HDD tray accommodating a 2.5" SATA HDD/SSD up to 15mm high and with a capacity of 5TB. For internal expansion, it provides two mini-PCIe sockets for Wi-Fi, GNSS, and CAN modules, plus one M.2 3042/3052 B Key socket for a 4G/5G mobile broadband module.
To meet diverse in-vehicle deployment requirements, the Nuvo-2610VTC series is available in three variants. In addition to the Nuvo-2610VTC, the Nuvo-2611VTC is equipped with an embedded SuperCAP UPS to withstand power interruptions or voltage fluctuations on trains and sustain the system long enough for a proper shutdown when power is cut off. The Nuvo-2612VTC has a Cassette module providing an additional Gen3 x2 PCIe slot that can accommodate an AI accelerator module with a tailor-made thermal solution. With the AI accelerator, it becomes a fanless GPU computer for intelligent video analytics or a data logger with perception capability.
By integrating an Intel Atom® quad-core x6425E, -40°C to 70°C fanless operation, a wide-range DC input with ignition control, and 4G LTE / 5G NR mobile broadband connectivity, the Nuvo-2610VTC series is an ideal rugged, multi-purpose in-vehicle computer for aftermarket on-road applications. With rugged M12 PoE+ connectivity and a built-in SuperCAP UPS, the Nuvo-2610VTC series can withstand harsh and unstable electrical environments in off-highway applications such as trucks, cargo vehicles, and rolling stock.
■ NEOUSYS MARKETING TEAM
| System Core | |
|---|---|
| Processor | Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/3.0GHz 12W processor |
| Graphics | Integrated Intel® UHD Graphics |
| Memory | Up to 32GB DDR4-3200 SDRAM via one SODIMM socket |
| Panel I/O Interface | |
|---|---|
| PoE | 4x IEEE 802.3at (25.5W) Gigabit PoE+ ports via Intel® I210 and M12 x-coded connectors |
| Video Port | VGA and DVI dual display outputs via DVI-I connector |
| USB | 1x USB 3.2 gen1 port with screw-lock 2x USB 2.0 ports with screw-lock |
| Serial Port | 1x isolated RS-485 port with 15 kV ESD protection (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 (COM2) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
| Expansion Bus | |
|---|---|
| PCI Express | 1x PCIe x4 slot @Gen3, 2-lane PCIe signal in Cassette (Nuvo-2612VTC only) |
| Mini-PCIe | 1x full-size mini PCI Express socket with PCIe and USB 2.0 signals 1x full-size mini PCI Express socket with USB 2.0 signal |
| M.2 | B Key 1x M.2 3042/3052 B Key (USB 3.1 + USB 2.0) for a 4G/5G module with a dual internal micro SIM socket |
| Storage Interface | |
|---|---|
| M.2 SATA | 1x M.2 2280 M Key socket (SATA interface only) for SATA SSD installation |
| SATA HDD | 1x front-accessible HDD tray for 2.5" HDD/SSD installation (up to 15mm high) |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input with built-in ignition power control (IGN/GND/V+) |
| Remote Control & LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Power Backup | |
|---|---|
| Capacity | 2500 watt-second (Nuvo-2611VTC only) |
| Mechanical | |
|---|---|
| Dimensions | 205 mm (W) x 156 mm (D) x 58 mm (H) (Nuvo-2610VTC) 205 mm (W) x 156 mm (D) x 86 mm (H) (Nuvo-2611VTC, Nuvo-2612VTC) |
| Weight | 1.9 kg (Nuvo-2610VTC) 2.5 kg (Nuvo-2611VTC) / 2.3 kg (Nuvo-2612VTC) |
| Mounting | Wall-mount (optional) |
| Environmental | |
|---|---|
| Operating temperature | -40°C ~ 70°C*. EN50155 Class OT4 |
| Storage temperature | -40°C ~85°C |
| Humidity | 10%~90%, non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.7, Category 4 (pending) IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) (pending) |
| Shock | Operating, MIL-STD-810G, Method 516.7, Procedure I (pending) IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) (pending) |
| EMC | EN 50155:2017, Clause 13.4.8 (pending) EN 45545-2 (Nuvo-2611VTC) (pending) CE/FCC Class A, according to EN 55032 & EN 55035 (pending) |
* For sub-zero operating temperatures, a wide-temperature HDD or Solid State Disk (SSD) is required.
Expansion PCIe Cards:
Optional Accessories
PA-120W-OW
120W AC/DC power adapter, 20V/6A; 18AWG/120cm; cord-end terminals for terminal block; operating temperature: -30 to 70°C.
PA-160W-OW
160W AC-DC power adapter, 20V/8A; 18AWG/120cm; cord-end terminals for terminal block; operating temperature: -30 to 70°C.
Fankit-25
Single-fan kit for the PCIe Cassette of the Nuvo-2600 and Nuvo-2610VTC series, including one 25x25mm fan and screws
Wmkit-Nuvo-2600
Wall-mounting kit for the Nuvo-2600 and Nuvo-2610VTC series, including wall-mount brackets and screws
