Neousys Nuvo-8208GC (Intel Xeon-E, Core 9/ 8, Dual NVIDIA RTX 30 Series)
Nuvo-8208GC
Ruggedized GPU computing platform for Edge AI, supporting dual NVIDIA® RTX 30 Series graphics cards and an Intel® Xeon® E or 9th/ 8th-Gen Core™ processor
- Supports up to dual NVIDIA RTX 30 Series graphics cards
- Supports Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5 LGA1151 CPU
- Up to 128GB ECC/non-ECC DDR4 2133 memory (4x SODIMM)
- Two x8 and one x4 Gen3 PCIe slots for add-on cards
- Two hot-swappable 2.5" SATA HDD/SSD drives with RAID 0/ 1 support
- 8~ 35V wide-range DC input with built-in ignition power control
- Patented thermal design for rugged operation from -25°C to 60°C* (* R.O.C. Patent No. M534371)
- Patented damping brackets* to withstand 3 Grms vibration (* R.O.C. Patent No. M491752)
Nuvo-8208GC is the world's first dual-GPU Edge AI platform with an industrial-grade design and in-vehicle features. Designed specifically to support dual NVIDIA RTX 30 Series graphics cards, it delivers tremendous GPU power of up to 28 TFLOPS in FP32 for emerging GPU-accelerated Edge computing applications, such as autonomous driving, vision inspection, and surveillance/security.
The Nuvo-8208GC Edge AI computing platform is powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ 8-core/ 16-thread CPUs, coupled with the workstation-grade Intel® C246 chipset to support up to 128 GB of ECC or non-ECC DDR4 memory. The system incorporates two hot-swappable 2.5" trays for easy HDD/SSD replacement and an M.2 2280 NVMe socket for maximum storage performance. Its front-accessible GbE and USB 3.1 Gen1/ Gen2 ports feature screw-lock mechanisms to secure cable connections. In addition to the dual x16 PCIe slots for GPU installation, the Nuvo-8208GC has two other x8 PCIe slots and one x4 PCIe slot for expansion cards, extending functionality for data acquisition, analytics, and communication.
The Nuvo-8208GC features a brand-new power-delivery design that accepts an 8~ 35V wide-range DC input and handles the high power requirements of dual 250W GPUs. Together with built-in ignition control, this enables deployment in a vehicle with direct power from the vehicle's electrical system. Mechanically, the Nuvo-8208GC incorporates Neousys' patented heat-dissipation design*, patented damping brackets*, and a patent-pending GPU press bar, making it stable and robust under various conditions.
The Nuvo-8208GC is Neousys' response to the ever-increasing demand for TFLOPS in industrial GPU platforms. With industrial-grade power, thermal, and mechanical design, it takes versatile Edge AI inference applications from laboratories into field deployments, where reliability matters.
■ NEOUSYS MARKETING TEAM
| System Core | |
|---|---|
| Processor | Supports Intel® Xeon® E and 8th/ 9th-Gen CPUs (LGA1151 socket) - Xeon E 2176G/ 2278GE (8C/16T) / 2278GEL (8C/16T) - i7-8700, i7-8700T, i7-9700E, i7-9700TE - i5-8500, i5-8500T, i5-9500E, i5-9500TE - i3-8100, i3-8100T, i3-9100E, i3-9100TE |
| Memory | Up to 128 GB of ECC/non-ECC DDR4 2133 SDRAM (four SODIMM slots) |
| Graphics | Discrete GPU via an x16 PEG port or integrated Intel® UHD Graphics 630 |
| Chipset | Intel® C246 Platform Controller Hub |
| AMT | Supports AMT 12.0 |
| TPM | Supports TPM 2.0 |
| I/O interface | |
|---|---|
| Ethernet | 1x Gigabit Ethernet port via Intel® I219-LM 1x Gigabit Ethernet port via Intel® I210-IT |
| Native video port | 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |
| Serial port | 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) |
| USB | 4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports 1x USB 2.0 port (internal, for dongle use) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Expansion bus/internal I/O interface | |
|---|---|
| PCI Express | 2x PCIe x16 slots@Gen3, 8 lanes 2x PCIe x8 slots@Gen3, 4 lanes 1x PCIe x4 slot@Gen3, 1 lane |
| M.2 | 1x M.2 2242 B-Key socket supporting dual SIM mode with the selected M.2 LTE module |
| mini-PCIe | 2x full-size mini PCI Express sockets |
| Storage Interface | |
|---|---|
| SATA | 2x hot-swappable HDD trays for 2.5" HDD/ SSD installation (support RAID 0/ 1) |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation |
| mSATA | 2x full-size mSATA ports (mux with mini-PCIe) |
| Power Supply | |
|---|---|

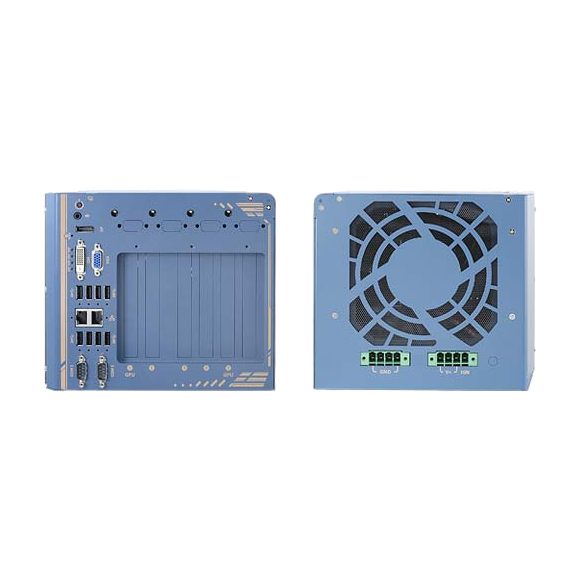

| DC Input | 2x 4-pin pluggable terminal blocks for 8V to 35V DC input and 1x 3-pin ignition control */ ** |
| Mechanical | |
|---|---|
| Dimensions | 235 mm (W) x 360 mm (D) x 185.6 mm (H) |
| Weight | 8.6 Kg |
| Mounting | Wall mounting with damping brackets |
| Environmental | |
|---|---|
| Operating temperature | with 35W CPU and dual NVIDIA® 250W GPU -25°C ~ 60°C **** with >= 65W CPU and dual NVIDIA® 250W GPU -25°C ~ 60°C **** (configured in 35W TDP mode) -25°C ~ 50°C ***/ **** (configured in 65W TDP mode) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4; and 3 Grms, 5-500 Hz, 3 axes |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/ FCC Class A, in accordance with EN 55024 & EN 55032 |
■ Date last revised: Dec. 11, 2019
* When an NVIDIA® graphics card is used (single or dual), the DC input must be greater than 12V.
** The maximum current for the DC input is 30A (per PWR pin), and the system's maximum power consumption is 1000W.
*** For the i7-8700 and i7-9700E operating in 65W mode, the maximum operating temperature must be limited to 50°C, and thermal throttling may occur under sustained full load. Users can configure CPU power in the BIOS to achieve a higher operating temperature.
**** For operation at sub-zero temperatures, a wide-temperature HDD or Solid State Disk (SSD) is required.
