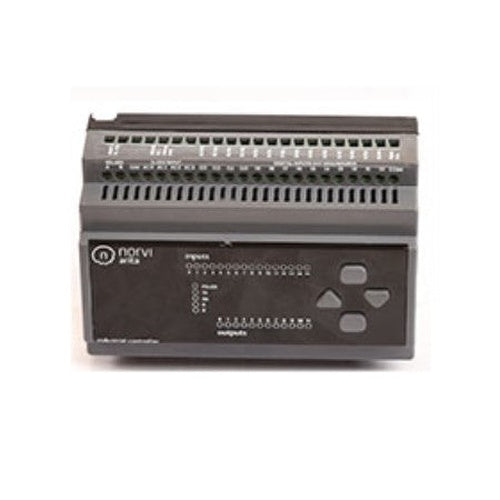

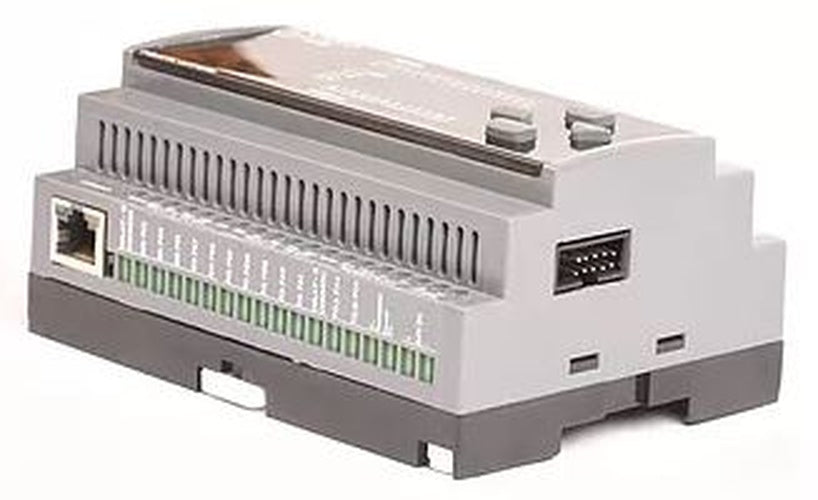

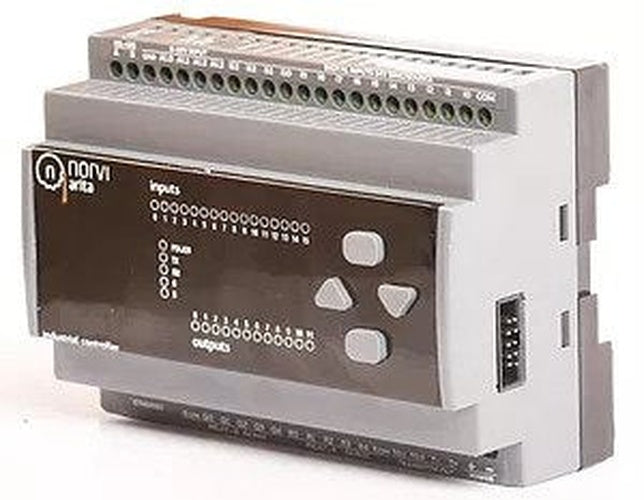

NORVI ARITA-M8 MEGA2560 (Display, 4* Analog Input, micro-SD)
Price excludes VAT
298.07€
Sale price
Price excludes VAT
298.07€
Regular price
Total with VAT (23%): 366.63€
Shipping calculated at checkout.
Arduino Industrial NORVI ARITA
- 14x Sink/Source Digital Inputs
- 10x 2A Relay Outputs
- 2x Open collecotr Transistor
- 1x RS-485
- Built-in 0.96" OLED display
- 2x 0-10V Analog Inputs
- 2x 4-20mA Analog Inputs
- 1x microSD Card Slot
- 1x W5500 Ethernet Connectivity
NORVI Arita is a higher-capacity version of the NORVI Series. A selection of five standard models is available, with a choice of two powerful microprocessors. Arita is designed to deliver every bit of performance from the microcontroller without compromising its reliability. It is compatible with almost every industrial input and output type. Connectivity is what makes it suitable for today’s world: for a connected world, all industrially accepted communication methods have been included. Arita is used in a wide range of applications and can serve in many roles, from a motion controller handling demanding positioning tasks to a data-logging server.
| Main | |
| Product range | NORVI ARITA |
| Product type | Programmable node |
| Rated supply voltage | 24V DC |
| Number of discrete inputs | 14 discrete inputs, interrupts configurable on each input |
| Discrete output type | Relay and Transistor |
| Number of discrete outputs | 10 relay outputs, 2 transistor outputs |
| Number of analog inputs | 3 |
| Discrete output voltage | 24V DC for transistor output |
| Discrete output current | 0.5A with T0.0... T0.1 transistor outputs; 2 A with R0....R4 and Q0....Q4 relay outputs |
| Complementary | |
| Number of discrete I/Os | 26 |
| Number of Expansions | 4 |
| Supply voltage limits | 20.4 ..... 28.8V |
| Inrush current | <= 50A |
| Power consumption in W | 32.6 ...... 40.4 with all outputs ON |
| Discrete logic input | Sink or source |
| Discrete input voltage | 24V DC |
| Voltage type Voltage state 1 | > = 15V for input |
| Voltage type Voltage state 0 | < = 5V for input |
| Discrete input current | 5mA for input |
| Input impedance | 4.7k Ohm for input |
| Battery Type (Model 8 Only) | Non-rechargeable Lithium - 2 years of backup at 25°C |
| Local Signalling | 1 green LED for PWR 1 green LED for RUN 14 green LEDs for I0......I14 10 green LEDs for Q0......Q4 and R0.....R4 2 green LEDs for T0....T1 |
| Electrical connection | Removable screw terminal block for inputs and outputs (5.08 mm pitch) |
| Mounting support | Top-hat type TH35-15 rail conforming to IEC 60715 Top-hat type TH35-7.5 rail conforming to IEC 60715 Plate or panel with fixing kit |
| Height | 86.60 mm |
| Depth | 56.60 mm |
| Width | 122.10 mm |
| Weight | 0.43 kg |
| Environment | |
| Relative Humidity | 10....95% non-condensing during operation |
| IP Degree of Protection | IP20 |
| Operating Altitude | 0...2000m |
| Storage Altitude | 0...3000m |
| Shock Resistance | 15 gn for 11 ms |
| Resistance to Electrostatic Discharge | 4kV on contact, 8kV through air |
| Resistance to Electromagnetic Fields | 10 V/m (80 MHz ...... 1 Ghz) 3 V/m (1.4 MHz ...... 2 GHz) 1 V/m (2 MHz ....... 3 GHz) |
| Immunity to Microbreaks | 10 ms |
