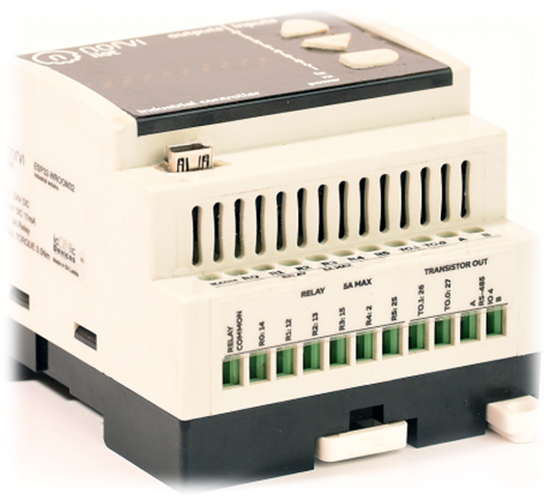

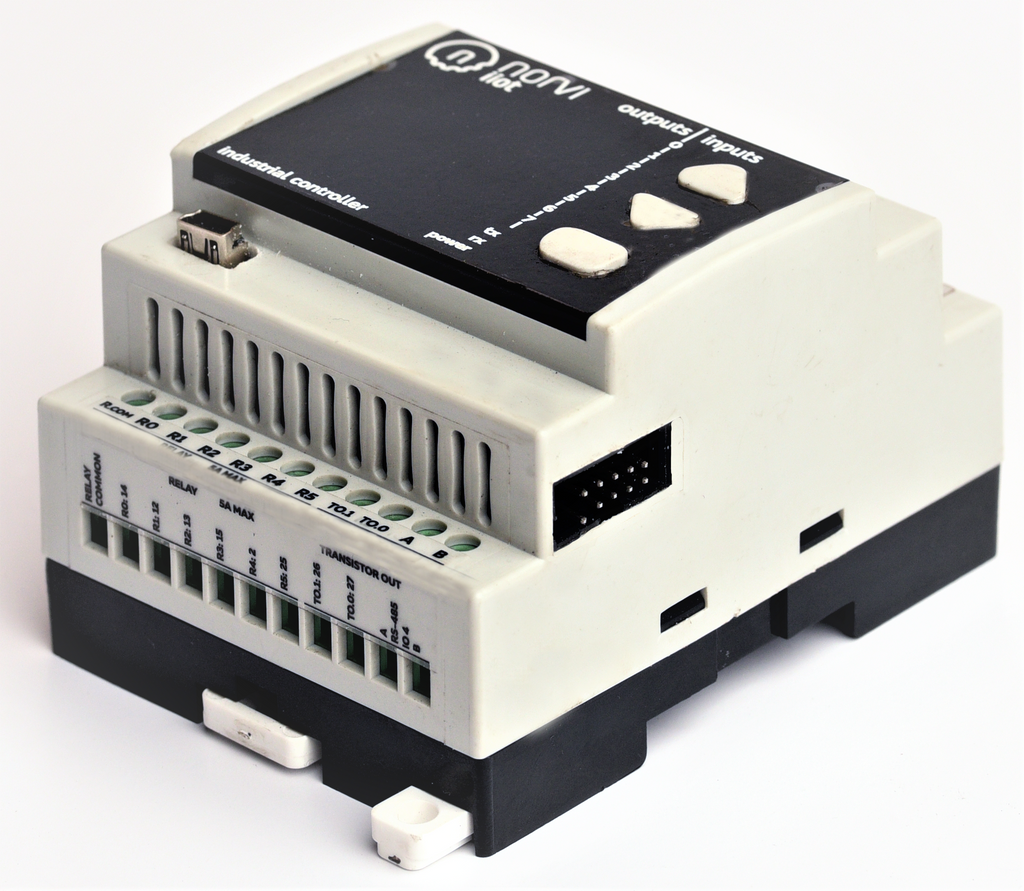

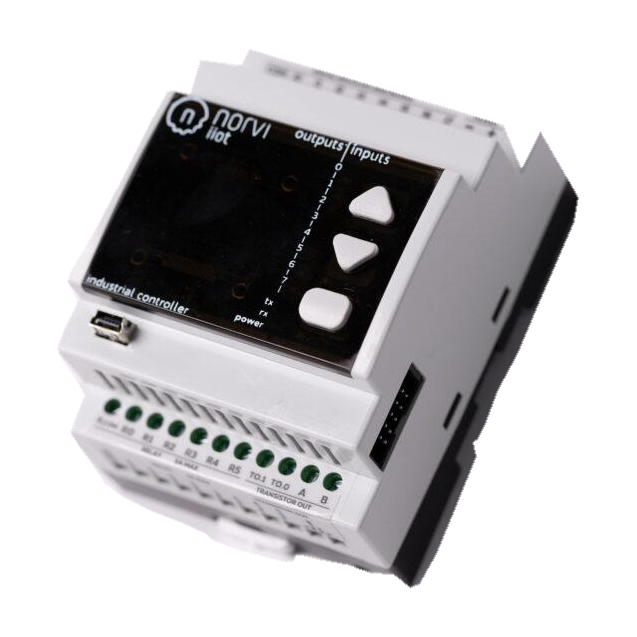

NORVI IIoT AE04-V (Digital In, Analog In 0-10V, Transistor Out)
Price excludes VAT
150.17€
Sale price
Price excludes VAT
150.17€
Regular price
Total with VAT (23%): 184.71€
Shipping calculated at checkout.
ESP32 module for industrial environments: Arduino and ESP-IDF.
NORVI-IIOT-AE04-V (ESP32-WROOM32 / 6x digital inputs, 6x analog inputs 0-10V, 2 x transistor outputs)

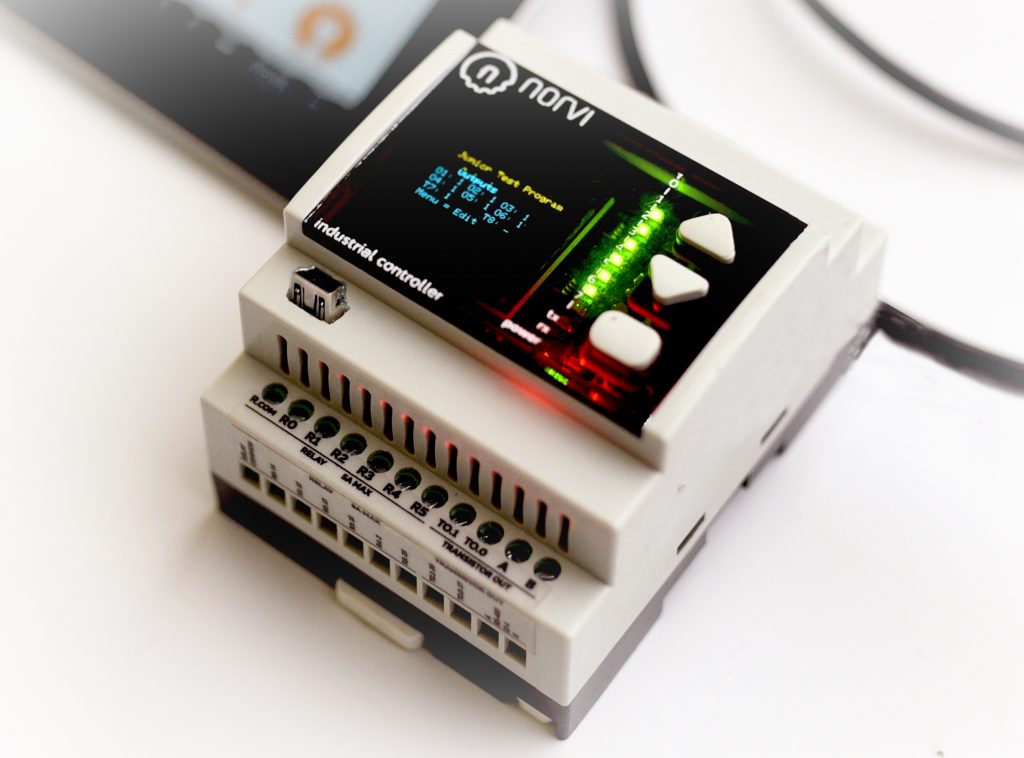

USB-programmable industrial ESP32 with OLED display and DIN-rail mounting. It is designed for protection and reliability. Compliant with 2014/30/EU — Electromagnetic Compatibility (EMC), Annex III, Part B, Module C (Conformity to type based on internal production control)
- 0.96 OLED display

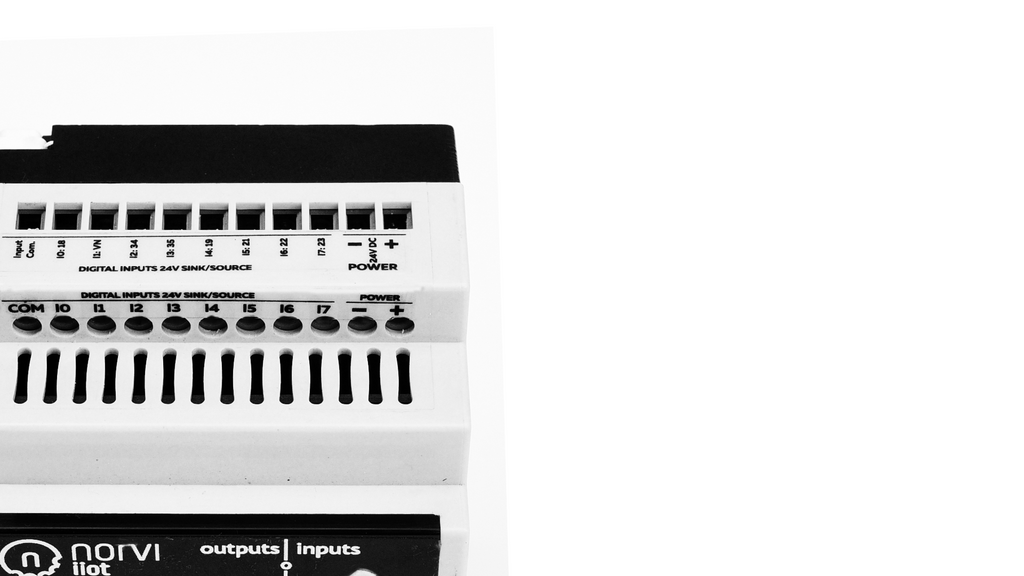

- 6x digital inputs
- 6x analog inputs 0-10v
- 2x transistor outputs
- RS 485 communication
- microSD card support
- DS3231 RTC with battery
Processors
ESP32-WROOM32
Dual Core 32bit 160-Mhz CPU
520 Kbytes SRAM / 4 Mb Flash
WIFI 802.11 b/g/n Bluetooth v4.2
Two timer groups, including 2 x 64-bit timers and 1 x main timer
Expansion modules
Modelo AE04-V ESP32-WROOM32
Applications
| Main | |
| Product range | NORVI IIOT |
| Product type | Programmable controller |
| Certifications | EN 61131-2:2007 EN 61010-1:2010+A1:2019 EN IEC 61010-2-201:2018 2014/30/EU — Electromagnetic Compatibility (EMC) Annex III, Part B, Module C |
| Rated supply voltage | 24V DC |
| Number of discrete inputs | 8 discrete inputs |
| Discrete output type | Relay and transistor |
| Number of discrete outputs | 6 relay outputs, 2 transistor outputs |
| Discrete output voltage | 24V DC for transistor output |
| Discrete output current | 0.5A with T0.0... T0.1 transistor 2 A with R0....R5 |
| Communication | 1 x RS-485 |
| OLED display protocol | I2C |
| TFT display protocol | SPI |
| Analog input range | 4 - 20mA (AE02-I) / 0 - 10V (AE02-V) |
| Analog input resolution | 16 bit |
| Complementary | |
| Number of discrete I/Os | 16 |
| Number of expansions | ----- |
| Supply voltage limits | 20.4 ..... 28.8V |
| Inrush current | <= 50A |
| Power consumption in W | 32.6 ...... 40.4 with all outputs ON |
| Discrete logic input | Sink or source |
| Discrete input voltage | 24V DC |
| Voltage type — voltage state 1 | > = 15V for input |
| Voltage type: voltage state 0 | < = 5V for input |
| Discrete input current | 5mA for input |
| Input impedance | 4.7k Ohm for input |
| Local signalling | 1 green LED for PWR 1 green LED for RUN 8 green LEDs for I0......I7 6 green LEDs for R0.....R5 2 green LEDs for T0....T1 |
| Electrical connection | Removable screw terminal block for inputs and outputs (pitch 5.08 mm) |
| Mounting support | Top-hat rail type TH35-15 conforming to IEC 60715 Top-hat rail type TH35-7.5 conforming to IEC 60715 Plate or panel with fixing kit |
| Height | 90.50 mm |
| Depth | 56.60 mm |
| Width | 60.60 mm |
| Weight | 0.43 kg |
| Environment | |
| Resistance to electrostatic discharge | 4kV contact, 8kV air |
| Resistance to electromagnetic fields | 10 V/m (80 MHz ...... 1 Ghz) 3 V/m (1.4 MHz ...... 2 GHz) 1 V/m (2 MHz ....... 3 GHz) |
| Immunity to microbreaks | 10 ms |
| Relative humidity | 10....95% non-condensing during operation |
| IP protection rating | IP20 |
| Operating altitude | 0...2000m |
| Storage altitude | 0...3000m |
| Shock resistance | 15 gn for 11 ms |
| Resistance to electrostatic discharge | 4kV contact, 8kV air |
| Resistance to electromagnetic fields | 10 V/m (80 MHz ...... 1 Ghz) 3 V/m (1.4 MHz ...... 2 GHz) 1 V/m (2 MHz ....... 3 GHz) |
