Name: Neousys NRU-120S (NVIDIA® Jetson AGX XavierTM)
Brand: Neousys
SKU: NRU-120S
Availability: InStock

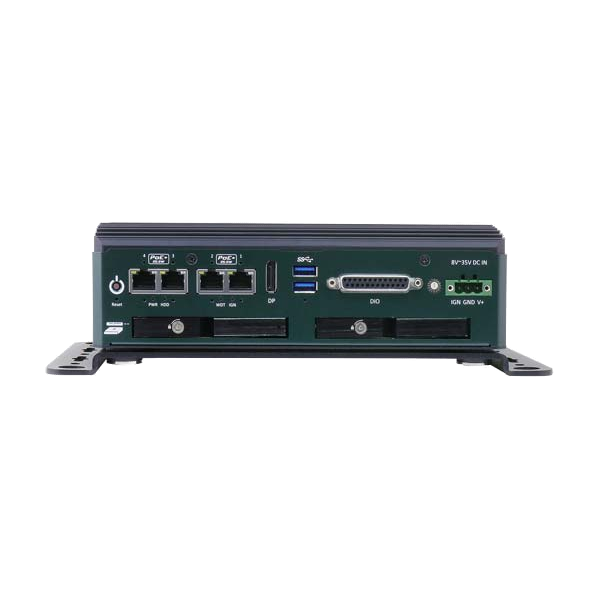

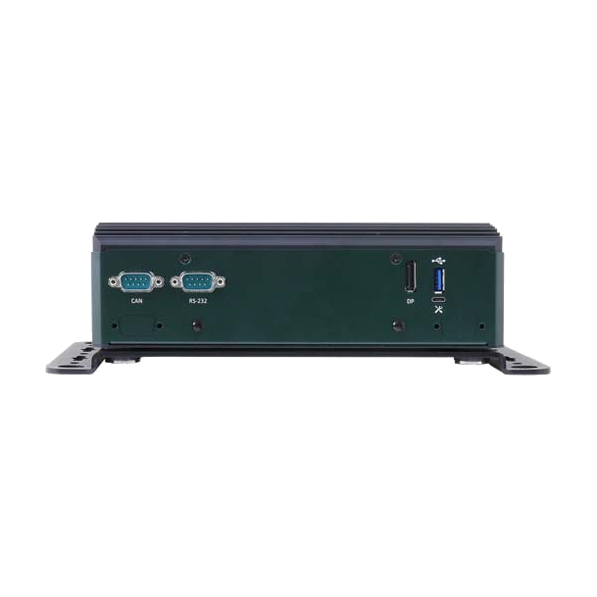

Neousys NRU-120S (NVIDIA® Jetson AGX XavierTM)

Price on request

SKU: NRU-120S

Product type: Edge AI computer

Manufacturer: Neousys

Request a quote

NRU-120S

NVIDIA® Jetson AGX Xavier™ AI NVR for intelligent video analytics

Powered by NVIDIA® Jetson AGX Xavier™ SOM and bundled with JetPack 4.4
4x IEEE 802.3at Gigabit PoE+ ports with screw-lock
2x front-accessible 2.5" HDD/SSD trays
1x M.2 2280 M key socket for NVMe SSD
1x mini PCIe socket for WIFI/4G module
1x isolated CAN bus port and 1x RS232 port with flow control
1x GPS PPS input, 3-CH isolated DI and 4-CH isolated DO
8V to 35V wide-range DC input with built-in ignition power control

The NRU-120S series is a new rugged Edge AI-based video analytics solution capable of video recording, transcoding, real-time inference, etc. Powered by the NVIDIA® Jetson AGX Xavier™ system-on-module (SOM), it integrates an 8-core ARM CPU and an NVIDIA® Volta GPU with 512 CUDA cores and 64 Tensor cores, delivering 11 TFLOPS FP16 or 22 TOPS INT8 of computing power.

Benefiting from the low-power design of the NVIDIA® Jetson AGX Xavier™, the NRU-120S delivers significant inference performance while consuming only 30W of power. Its energy-efficient design and compact form factor make it an ideal Edge AI solution for both stationary and mobile applications. The NRU-120S provides four 802.3at Gigabit PoE+ ports; each port can supply up to 25.5W of power to PD devices such as IP cameras and industrial cameras. In addition to the 32GB eMMC on the Xavier module, the NRU-120S incorporates two front-accessible 2.5" HDD/ SSD trays for expanding storage capacity and an M.2 2280 NVMe socket for fast SSD read/write performance. It also includes one mini-PCIe socket for a WIFI and 4G module, as well as 1 GPS PPS input, 3-CH isolated DI and 4-CH isolated DO for communication with external devices.

By integrating PoE+ connectivity, a wide range of NVIDIA® AI tools and modern deep learning frameworks, the NRU-120S brings real-time image and video inference to the Edge. It is an all-in-one AI-based video analytics solution offering 802.3at PoE+ camera connections, video decoding, video streaming, video recording and Edge AI inference. With Neousys' unique damping-bracket design, ignition power control and wide-voltage power supply, the NRU-120S is an ideal video inference platform for autonomous machines, predictive maintenance, law enforcement and smart-city applications.

■ NEOUSYS MARKETING TEAM

System Core
Processor	Supports the NVIDIA® Jetson AGX Xavier™ system-on-module, comprising an NVIDIA® Volta GPU and Carmel CPU
Memory	Onboard 32GB LPDDR4x @ 2133 MHz on the SOM
eMMC	32GB eMMC 5.1 on the SOM

I/O Interface
POE+	4x IEEE 802.3at (25.5W) Gigabit PoE+ ports via Intel® I350
CAN	1x isolated CAN 2.0 port
Isolated DIO	1x GPS PPS input. 3-CH isolated DI and 4-CH isolated DO
USB	3x USB 3.1 Gen1 ports (5 Gbps)
Video Port	2x DisplayPort, supporting 3840x2160 at 60Hz
Serial port	1x RS-232 port with flow control

Storage interface
SATA HDD	2x front-accessible HDD trays for 2.5" HDD/SSD installation (up to 9.5mm in height)
M.2 NVMe	1x M.2 2280 M key socket (PCIe Gen3 x2) for NVMe SSD

Internal Expansion Bus
Mini PCI-E	1x full-size Mini PCI Express socket with an internal SIM socket

Power supply
DC Input	1x 3-pin pluggable terminal block for 8V to 35V DC input (IGN/ GND/ V+)

Mechanical
Dimensions	230 mm (W) x 173 mm (D) x 66 mm (H)
Weight	2.7 kg (excluding damping brackets)
Mounting	Wall mounting with damping brackets (Standard)

Environmental
Operating Temperature	-25°C ~ 50°C with passive cooling (MAX TDP mode) * -25°C ~ 70°C with passive cooling (30W TDP mode) * -25°C ~ 70°C with optional fan kit (all modes) *
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC	CE/FCC Class A, according to EN 55032 & EN 55024
