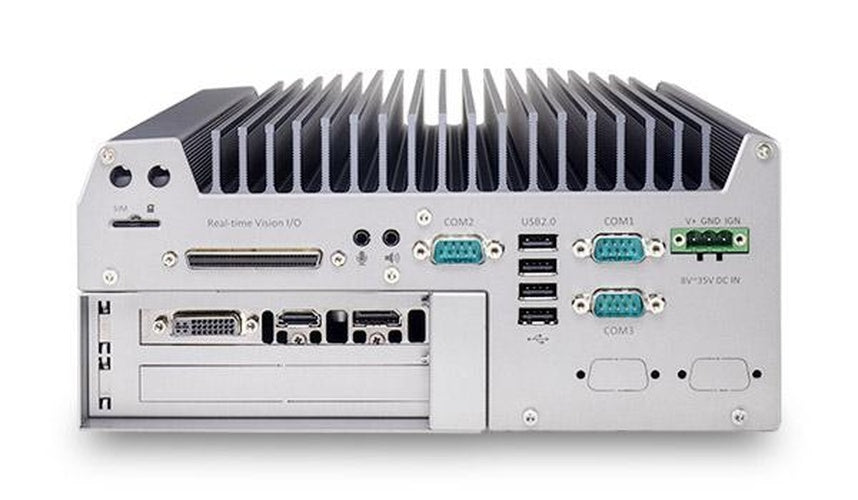

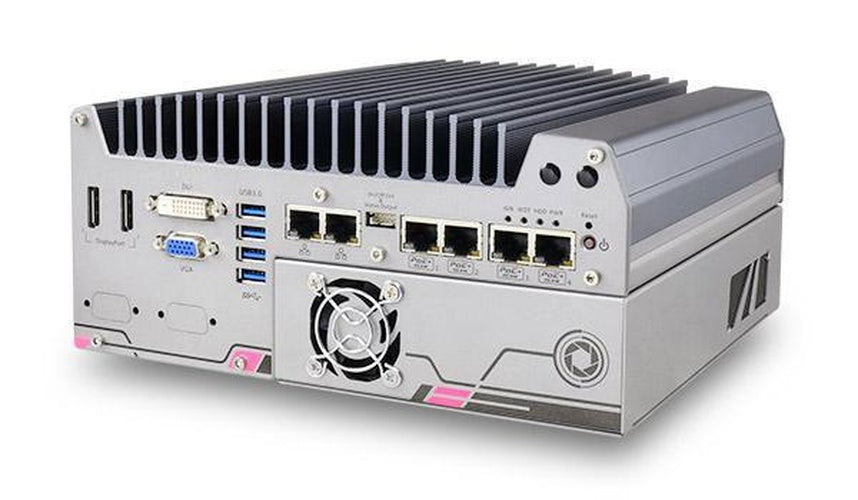

Intel® 6th-Gen Skylake machine vision controller with vision-specific I/O, real-time control & GPU computing

  • Intel® 6th Gen Core™ i7/i5 65W/35W CPU, up to 32 GB DDR4
  • Integrated vision-specific I/O
    • 4-CH CC/CV lighting controller
    • 4-CH camera trigger outputs
    • 1-CH quadrature encoder input
    • 8-CH isolated DI and 8-CH isolated DO
  • Patented MCU-based, real-time I/O control by DTIO V2 and NuMCU
  • Built-in camera interfaces
    • 4-CH IEEE 802.3at Gigabit PoE+ ports
    • 4-CH USB 3.1 Gen1 ports
  • Supports NVIDIA 75W GPU for GPU-accelerated MV

Introducing the most powerful vision controller ever built! Nuvis-5306RT integrates every single function you need for machine vision applications in a compact footprint, including exceptional computing power, built-in camera interfaces and real-time vision-specific I/O control.

To ensure high quality images, a MV system requires accurate interaction between lighting, camera, actuator and sensor devices. Nuvis-5306RT integrates LED lighting controller, camera trigger, encoder input, PWM output and digital I/O, to connect and control all the vision devices. All the vision-specific I/O are managed by Neousys’ patented MCU-based architecture and DTIO/NuMCU firmware to guarantees microsecond-scale real-time I/O control.

Computing power is another crucial requirement for a vision system. In addition to the remarkable performance brought by its Intel® 6th Gen Core™ i7/i5 CPU, Nuvis-5306RT can further accommodate NVIDIA® 75W TDP GPU to leverage GPU-accelerated vision library or deep-learning vision software. Combining built-in PoE+ and USB 3.1 Gen1 interfaces and the expandability for CameraLink and CoaXPress, Nuvis-5306RT is the ideal platform for demanding MV applications.


Product Highlights

Integrated Vision-Specific I/O


Support all peripheral devices for machine vision applications

  • CC/CV lighting controller (1A/24V)
  • 12V camera trigger output
  • Quadrature encoder input
  • PWM output
  • Isolated DI/DO

GPU-Accelerated Computer Vision


Particularly designed for NVIDIA 75W GPU

  • 20x FLOPS v.s. CPU
  • Reliable 7/24 operation with 100% GPU loading

New era for machine vision

  • GPU-accelerated machine vision library
  • Deep-learning machine vision software

Real-time I/O Control by DTIO V2 & NuMCU



  • Time/position-based trigger
  • Deterministic 10 us response latency


  • For user-defined MCU F/W
  • Develop MCU code using TI CCS

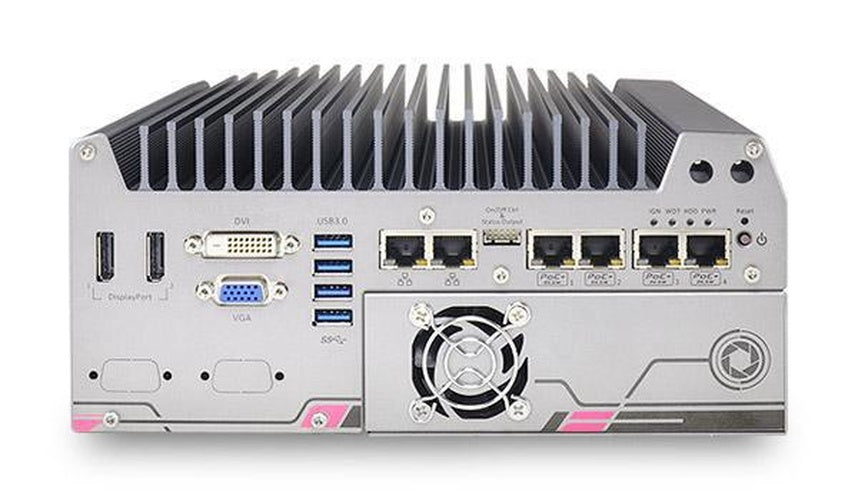

Versatile Camera Interfaces


Integrated camera interface

  • 4x 802.3at PoE+ ports and 2x GigE ports
  • 4x UB3 ports with 1000 MB/s bandwidth

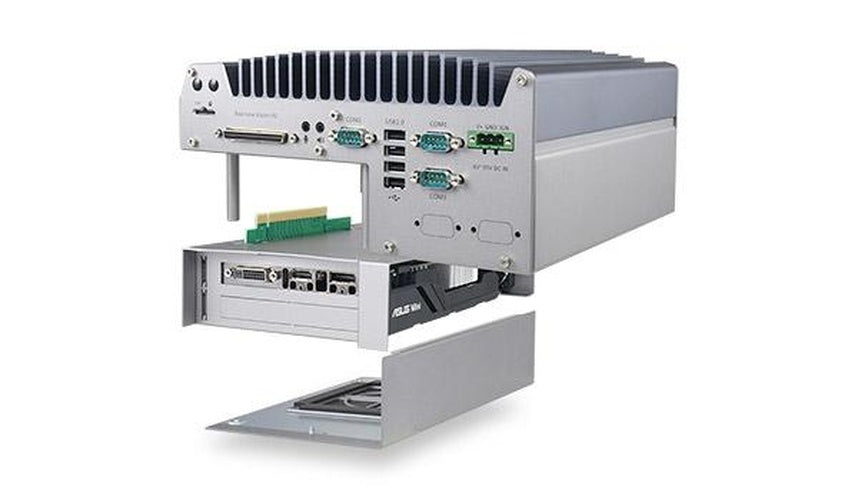

Expandable interface by Cassette

  • CameraLink
  • CoaXPress
  • 10G Ethernet

Nuvis-5306RT Live Demo: Time Based Trigger and Position Based Trigger

System Core
Processor Supports 6th-Gen Intel® Core™ LGA1151 CPU
- Intel® Core™ i7-6700
(8M Cache,3.4/4.0 GHz, 65W TDP)
- Intel® Core™ i5-6500
(6M Cache, 3.2/3.6 GHz, 65W TDP)
- Intel® Core™ i7-6700TE
(8M Cache, 2.4/3.4 GHz, 35W TDP)
- Intel® Core™ i5-6500TE
(6M Cache, 2.3/3.3 GHz, 35W TDP)
Chipset Intel® Q170 Platform Controller Hub
Graphics Integrated Intel® HD Graphics 530
Memory Up to 32 GB DDR4-2133 SDRAM
by two SODIMM sockets
AMT Supports AMT 11.0
TPM Supports TPM 1.2
Vision-Specific I/O Interface
LED Lighting Controller 4-CH LED lighting controller output ,
- Constant current mode
(up to 2 A per channel, 100 kHz dimming
- Constant voltage mode
(24 VDC, 100 kHz dimming control)
Camera Trigger 4-CH camera trigger output
(12 VDC output)
Encoder Input 1-CH quadrature encoder input (A/B/Z)
Isolated Digital Output 4-CH isolated high-speed digital output
(<2 us transient time, for strobe/PWM)
4-CH isolated high-current digital output
(up to 500 mA rated current)
Isolated Digital Input 8-CH isolated high-speed digital input
(<2 us transient time)
Real-time I/O Control Patented MCU-based real-time I/O control
with DTIO V2 or OpenMCU firmware
General I/O Interface
Ethernet Port 6x Gigabit Ethernet ports by
Intel® I219 and 5x I210
PoE+ IEEE 802.3at PoE+ PSE on GigE Port
3 ~ Port 6, 80 W total power budget
USB 3.1 Gen1 4x USB 3.1 Gen1 ports via native XHCI
controller, 1000 MB/s total
USB 2.0 4x USB 2.0 ports
Video Port 1x stacked VGA + DVI-D connector
2x DisplayPort connectors, supporting 4K2K
Serial Port 2x software-programmable RS-232/422/485 port (COM1 & COM3)
1x RS-232 port (COM2)
Audio 1x Mic-in and 1x Speaker-out
Storage Interface
SATA HDD 2x Internal SATA port for 2.5” HDD/SSD
installation, supporting RAID 0/1
mSATA 1x full-size mSATA port (mux with mini-PCIe)
Expansion Bus
PCI/PCI Express 1x PCIe x16 slot @ Gen3, 8-lanes
PCIe signals in Cassette, supporting
- 75W NVIDIA® GPU card
- COTS CameraLink and CoaXPress camera
interface card
Mini PCI-E 1x internal mini PCI Express socket
with front-accessible SIM socket
1x internal mini PCI Express socket
with internal SIM socket (mux with mSATA)
Power Supply
DC Input 1x 3-pin pluggable terminal block for 8V to 35V DC input
Remote Ctrl. &
Status Output
1x 10-pin (2x5) wafer connector for
remote on/off control and status LED output
Dimension 240 mm (W) x 225 mm (D) x 111 mm (H)
Weight 4.5 kg (incl. CPU, GPU, memory and HDD)
Mounting Wall-mount by mounting bracket or
optional rack-mount kit
Operating Temperature with i7-6700TE, i5-6500TE (35W TDP)
-25°C ~ 60°C **
with i7-6700, i5-6500 (65W TDP)
-25°C ~ 60°C */
** (configured as 35W CPU mode)
-25°C ~ 50°C */
** (configured as 65W CPU mode)
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
Shock Operating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
EMC CE/FCC Class A, according to EN 55022, EN55032 & EN 55024

*For i7-6700 running at 65W mode, the high operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
