Machine Vision Neousys Nuvis-534RT-DTIO (AMD Ryzen V1807B)

Nuvis-534RT-DTIO

The Nuvis-534RT is an ultracompact AMD Ryzen ™ V1807B controller with vision-specific I/O and DTIO real-time control.

• AMD Ryzen™ Embedded V1807B quad-core 45W CPU
• Integrated vision-specific I/O
• 4-CH CC/CV lighting controller
• 4-CH camera trigger outputs
• 1-CH quadrature encoder input
• 8-CH isolated DI and 8-CH isolated DO
• Patented MCU-based real-time I/O control via DTIO V2* and NuMCU
• Built-in camera interfaces

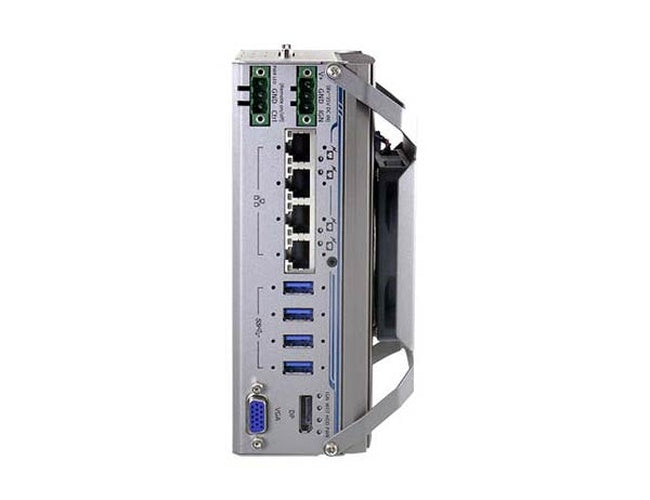

• Four Gigabit PoE+ ports with screw locks
• Four USB 3.1 Gen1 ports with screw locks
• M.2 2280 M key NVMe (Gen3 x2) socket for fast storage access

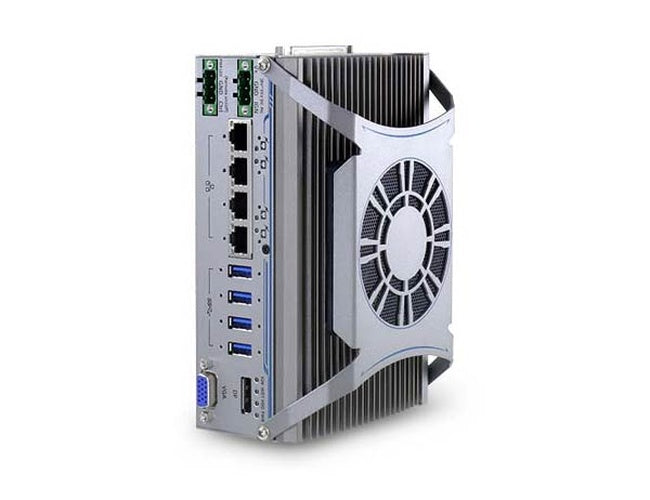

The Nuvis-534RT is an ultracompact, high-performance vision controller with integrated camera interfaces, vision-specific I/O and real-time control for machine vision applications. Equipped with a 4-core / 8-thread AMD Ryzen ™ Embedded V1807B processor, it delivers excellent performance equivalent to conventional desktop CPUs while maintaining compact dimensions of 8,2 cm x 11,8 cm x 17,6 cm (3,4 "x 4,6" x 6,9 ").

The Nuvis-534RT provides unique vision-oriented I/O configurations, including a constant-current lighting controller for directly driving LED lights, an isolated 12V trigger output for activating cameras, an encoder input for acquiring position information and DIO for connecting sensors/actuators. All the vision-oriented I/O described above can be managed using Neousys DTIO V2 or NuMCU technology to ensure real-time triggering/response on a microsecond scale.

The combination of high performance and compact size gives the Nuvis-534RT a distinctive 1-2 advantage, allowing the vision system to be easily deployed with USB3.0 and GigE cameras without space constraints.
