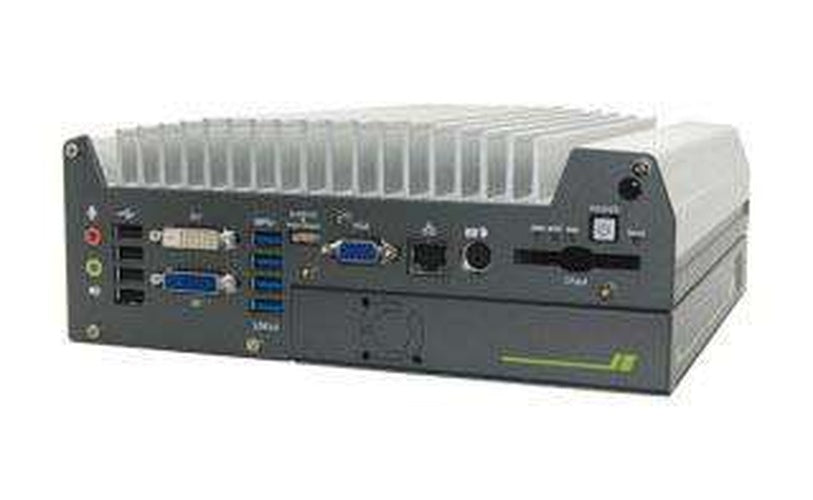

Neousys Nuvo-3000P-IGN industrial barebone featuring high-performance processing and Neousys' innovative modular architecture, providing a versatile integrated mobile controller. Equipped with a 3rd-generation CPU i7 Quad-Core and significant improvements in graphics performance. This system also includes native support for 3 independent video outputs and USB 3.0 ports.

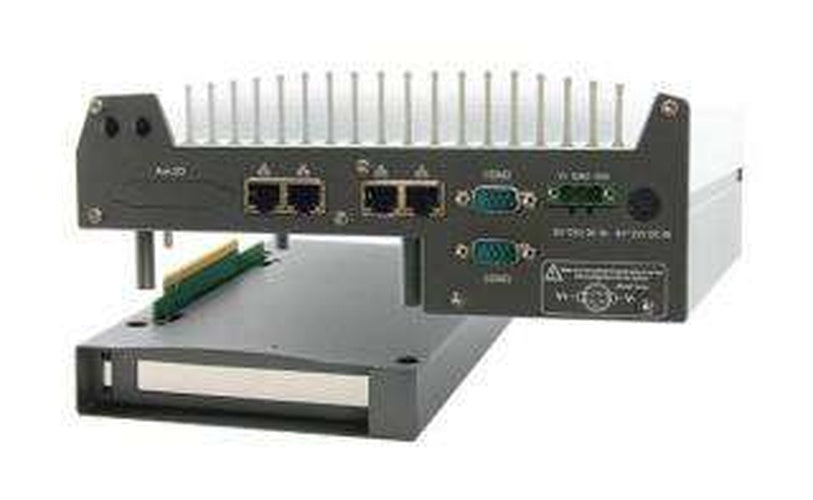

The new successor to the renowned Nuvo series, the Nuvo-3000 features an extremely reliable construction and supports operating temperatures between -25ºC and 70°C. It combines an elegant design with Neousys' patented modular structure, in which the slot for the PCI / PCIe expansion module minimises thermal interference between the system and the add-on card, allowing the system to operate consistently under the intended thermal conditions. The module can also accommodate a 3.5" hard drive to increase storage capacity.
The Nuvo-3000 I/O connectors are highly versatile. The system is equipped with Gigabit Ethernet, USB 3.0 and 3 independent video outputs. It also includes an intelligent ignition-control function suitable for in-vehicle applications. Its Quad-core processor, new modular design for increased expansion capacity and vehicle ignition control make the Nuvo-3000 ideal for industrial applications, fleet installations, automation and many other applications.
- High-performance 3rd-generation Intel® i7 Quad-core
- Patented modular structure for PCIe/PCI expansion cards
- 5x integrated GigE ports with support for 9.5 KB jumbo frames
- Rugged, Fanless, operates at temperatures from -25°C to +70°C
- Intelligent On/Off control for in-vehicle applications
- 3 independent video outputs: VGA / DVI / HDMI
- 4x USB 3.0 ports + 4x USB 2.0 ports
- Optional DIO
Specifications:
| System | |
|---|---|
| Processor: | Intel® Core™ i7-3610QE (2.3/3.3 GHz, 6 MB cache) Intel® Core™ i5-3610ME (2.7/3.3 GHz, 3 MB cache) Intel® Celeron™ 1020E (2.2 GHz, 2 MB cache) |
| Chipset: | Intel® HM76 Platform Controller Hub |
| Graphics: | Intel® HD 4000 Controller (i7/i5) Intel® HD Graphics Controller (Celeron) |
| Memory | 2x 204-pin SO-DIMM sockets, up to 16 GB DDR3 1333/1600 MHz SDRAM |
| Front-panel I/O | |
| Ethernet: | Up to 5x Intel® I210 Gigabit Ethernet ports |
| Video: | 1x DB-15 connector for analogue RGB, supports a resolution of 2048x1536 2x DVI-I connectors for DP/HDMI/DVI outputs, supports resolutions of 2560x1600 (DP) and 1920x1080 (DVI/HDMI) (2x video outputs max.) |
| COM port: | 2x software-programmable RS-232/422/485 connectors (COM1 & COM2) |
| USB: | 4x USB 3.0 ports and 4x USB 2.0 ports |
| Isolated DIO: | 8x isolated digital input channels with COS interrupt support and 8x isolated digital output channels |
| KB/MS: | 1x 6-pin mini-DIN connector for PS/2 |
| Audio: | 1x microphone input and 1x speaker output |
| Storage | |
| SATA HDD: | 1x internal SATA port for installing a 2.5” HDD/SSD |
| CFast | 1x CFast socket |
| Expansion | |
| Mini PCI-E: | 1x internal mini PCI Express socket with USIM socket 1x internal mini PCI Express socket |
| PCI/PCI Express: | 1x modular PCI slot (Nuvo-3003P/3005P) 1x PCIe x8 slot via modular x16 slot (Nuvo-3003E/3005E) |
| Power & ignition control | |
| DC input: | 1x 4-pin power connector for 8~25V DC input |
| Ignition control: | 1x 3-pin terminal block for ignition signal input (IGN/GND/V+) |
| Remote control &
|
1x 10-pin (2x5) wafer connector for remote on/off control and output status LED |
| Chassis | |
| Dimensions: | 240 mm (L) x 225 mm (W) x 90 mm (H) |
| Weight: | 4.4 Kg (including 2.5” HDD and DDR3 SODIMM) |
| Mounting: | Wall-mounting (standard) or DIN-Rail mounting (optional) |
| Environment | |
| Operating temperatures: | -25°C ~ 70°C (with i5-3610ME & Celeron 1020E) -25°C ~ 60°C (with i7-3610QE) |
| Storage temperature: | 40°C ~ 85°C |
| Humidity: | 10%~90%, non-condensing |
| Vibration: | Operating, 5 Grms, 5-500 Hz, 3 axes (with SSD, according to IEC60068-2-64) |
| Shock: | Operating, 50 Grms, half-sine, 11 ms duration (with SSD, according to IEC60068-2-27) |
| EMC: | CE/FCC Class A, compliant with EN 55022 & EN 55024 |
| MTBF: | 93,732 hours |
