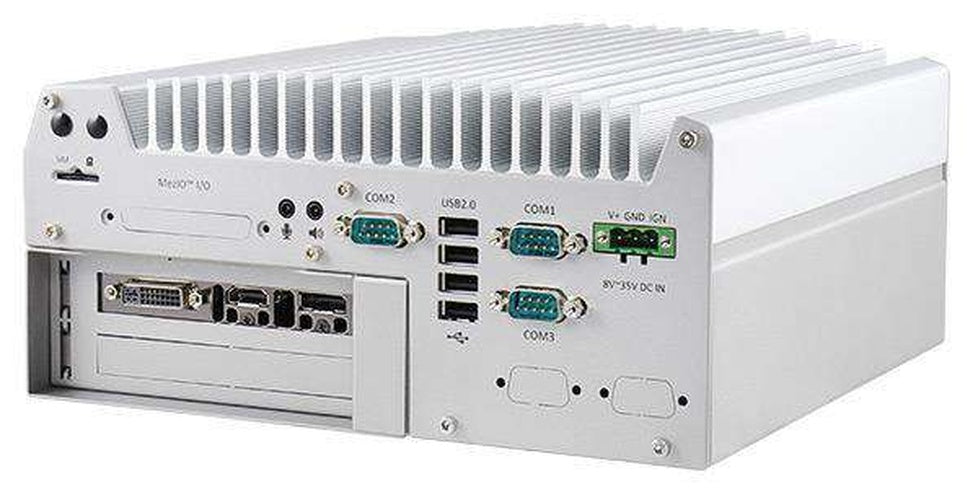

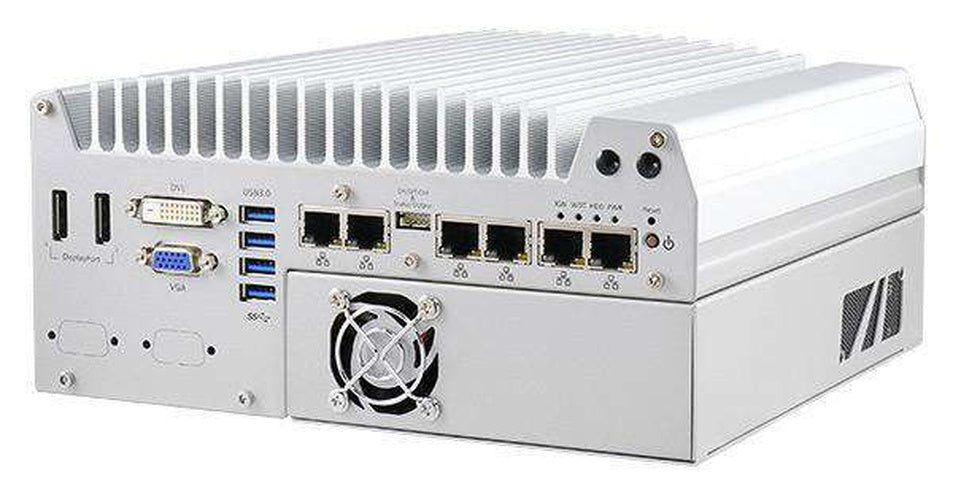

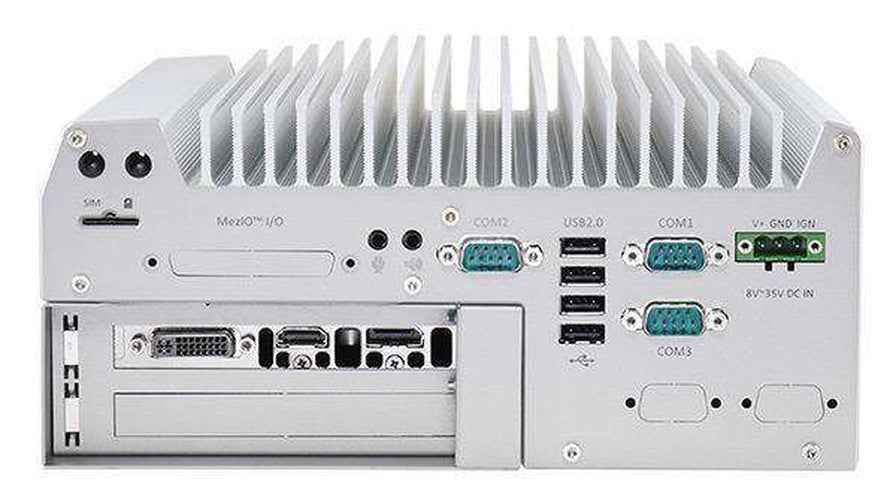

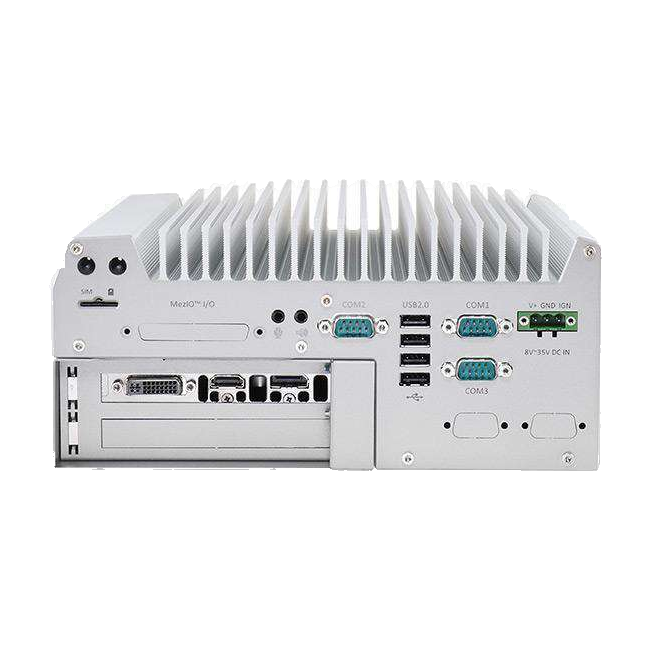

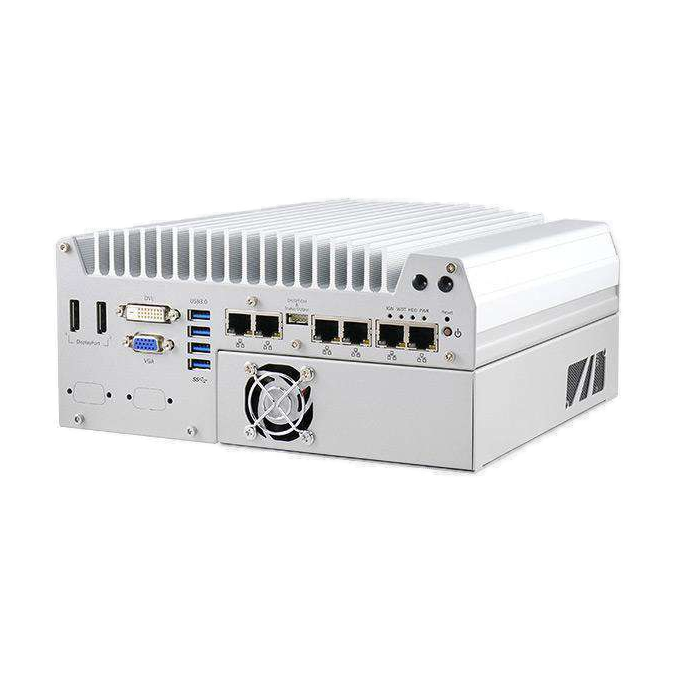

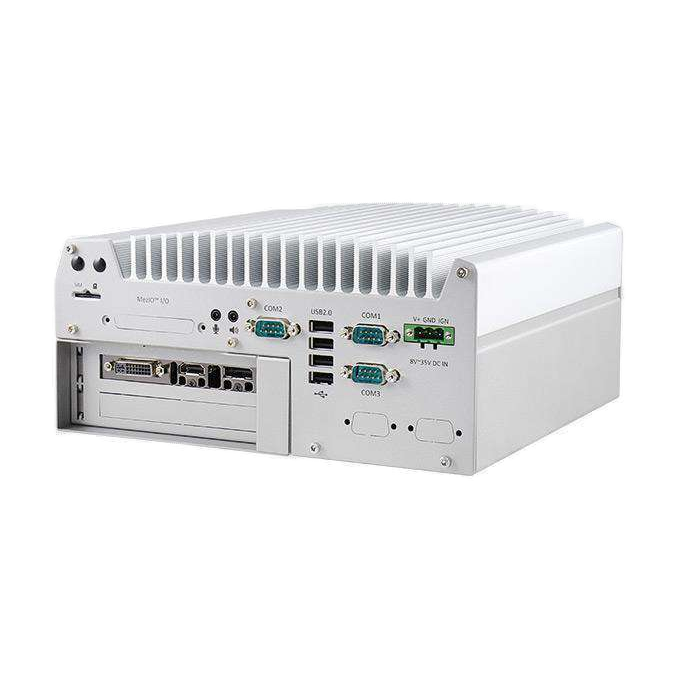

The Nuvo-5095GC is a compact embedded PC for graphics computing, designed to operate across a wide temperature range and support the NVIDIA® GeForce® GTX 1050 and 6th-generation Intel® Core™ processors.
This industrial computer opens a new chapter in industrial computing. As the first integrated controller designed for emerging CUDA computing, autopilot, artificial intelligence and virtual reality applications, the Nuvo-5095GC provides all the capabilities required for a compact, rugged and powerful GPU computing platform.
Powered by the NVIDIA® GeForce® GTX 1050* GPU, the Nuvo-5095GC features 768 CUDA cores and delivers tremendous computing power for arithmetic/graphics operations. Neousys' patented cassette expansion technology and innovative thermal design help dissipate the heat generated by the GPU, enabling this compact system to operate reliably 24/7 at 60° C under full GPU load.
The Nuvo-5095GC is based on the Intel Skylake platform and supports 6th Generation Intel® Core™ processors with 35W / 65W and up to 32GB of DDR4 memory. It features a comprehensive I/O panel, including Gigabit LAN, USB 3.0 and COM ports for connecting external devices. For the rapidly growing graphics computing market, the Nuvo-5095GC is the first compact, rugged industrial embedded PC to combine a CPU and GPU, delivering performance far beyond that of traditional industrial computers.
- Supports NVIDIA® GeForce® GTX 1050* graphics
- Patented thermal design for operation between -25°C and 60°C
- Supports 6th Generation Intel® Core™ i7/i5 LGA1151 CPU
- 6x Gigabit Ethernet ports
- Supports 9.5 kB jumbo frames
- Supports DDR4-2133 SO-DIMM, up to 32GB
- Compact 240 mm x 225 mm x 111 mm design
- Compatible with MezIO™ interfaces for functional expansion
- Accommodates 2x 2.5" SATA HDD/SSD with RAID 0/1 support
Autopilot
CUDA Computing
Artificial Intelligence
Virtual Reality
Specifications
| System Core | |
|---|---|
| Processor | Supports 6th-Gen Intel® Core™ LGA1151 CPU - Intel® Core™ i7-6700 (8M Cache,3.4/4.0 GHz, 65W TDP) - Intel® Core™ i5-6500 (6M Cache, 3.2/3.6 GHz, 65W TDP) - Intel® Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP) - Intel® Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP) |
| Chipset | Intel® Q170 Platform Controller Hub |
| Graphics | NVIDIA® GeForce® GTX 1050* GPU (75W TDP) or integrated Intel® HD 530/510 controller |
| Memory | Up to 32 GB DDR4-2133 SDRAM (dual SO-DIMM sockets) |
| AMT | Supports AMT 11.0 |
| TPM | Supports TPM 2.0 |
| I/O Interface | |
|---|---|
| Ethernet | 6x Gigabit Ethernet ports, one via Intel® I219 and five via I210 |
| USB | 4x USB 3.0 ports via native XHCI controller 4x USB 2.0 ports |
| Video Port (Integrated Graphics) |
1x stacked VGA + DVI-D connector 2x DisplayPort connectors, supporting 4K2K resolution |
| Serial Port | 2x software-programmable RS-232/422/485 ports (COM1 & COM2) 1x RS-232 port (COM3) |
| Audio | 1x Mic-in and 1x Speaker-out |
| Storage Interface | |
|---|---|
| SATA HDD | 2x internal SATA ports for 2.5" HDD/SSD installation, supporting RAID 0/1 |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| Expansion Bus | |
|---|---|
| Mini PCI-E | 1x internal mini PCI Express socket with front-accessible SIM socket 1x internal mini PCI Express socket with internal SIM socket (mux with mSATA) |
| Expandable I/O | 1x MezIO™ expansion port for Neousys’ MezIO™ modules |
| Power Supply & Ignition Control | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8~35VDC DC input |
| Remote Control & Status Output |
1x 10-pin (2x5) wafer connector for remote on/off control and status LED output |
| Mechanical | |
| Dimensions | 240 mm (W) x 225 mm (D) x 111 mm (H) |
| Weight | 4.8 kg (including CPU, GPU, memory and HDD) |
| Mounting | Wall mounting using a mounting bracket |
| Environmental | |
|---|---|
| Operating Temperature | i7-6700TE, i5-6500TE (35W TDP) Rated at -25°C ~ 60°C ** i7-6700, i5-6500, i3-6100 (65W/51W TDP) Rated at -25°C ~ 60°C **/*** (configured in 35W CPU mode) Rated at -25°C ~ 50°C **/*** (configured in 65W/51W CPU mode) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 axes (with SSD, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, half-sine, 11 ms duration (with SSD, according to IEC60068-2-27) |
| EMC | CE/FCC Class A, according to EN 55022 & EN 55024 |
*The 100% CPU load is applied using Intel® Thermal Analysis Tool. For detailed testing criteria, please contact Neousys Technology.
**For sub-zero operating temperatures, a wide-temperature HDD or Solid State Disk (SSD) is required.
Ordering Information
Nuvo-5095GC
Intel® 6th-Gen Core™ GPU-computing platform with 6x GbE and MezIO™
Nuvo-5095GC-GTX1050
Intel® 6th-Gen Core™ GPU-computing platform with 6x GbE, MezIO™ and pre-installed GTX 1050 graphics card
MezIO™ Modules
MezIO™-C180
- MezIO™ module with 4x RS-232/422/485 ports and 4x RS-232 ports
MezIO™-C181
- MezIO™ module with 4x RS-232/422/485 ports and 4x RS-422/485 ports
MezIO™-D220
- MezIO™ module with 8-CH isolated digital input and 8-CH isolated digital output
MezIO™-D230
- MezIO™ module with 16-CH isolated digital input and 16-CH isolated digital output
MezIO™-V20-EP
- MezIO™ module with ignition power control function for in-vehicle use
Accessories / Options
- 20V, 160W AC/DC power adapter
