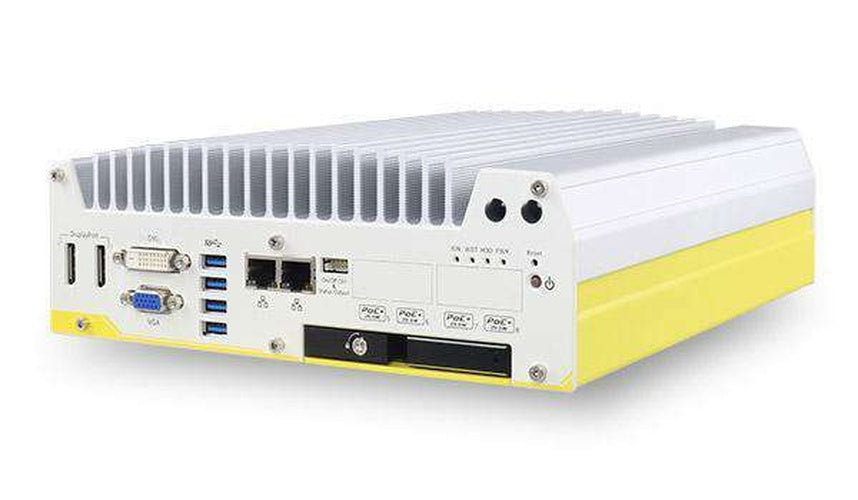

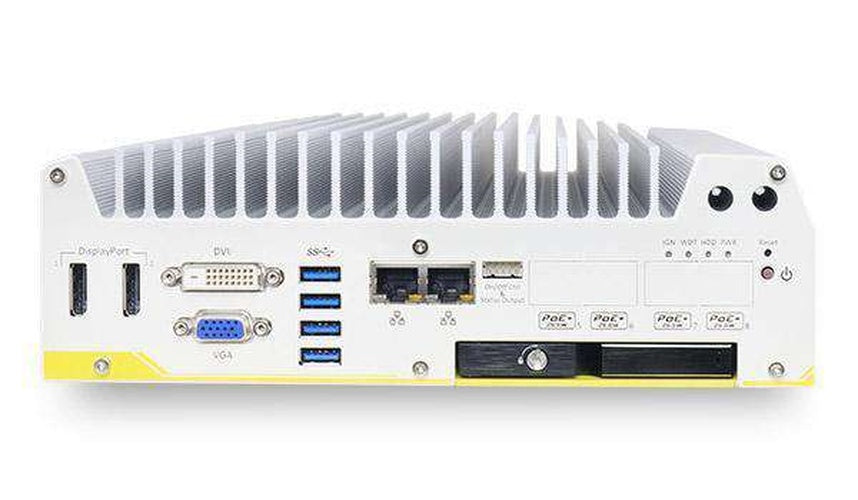

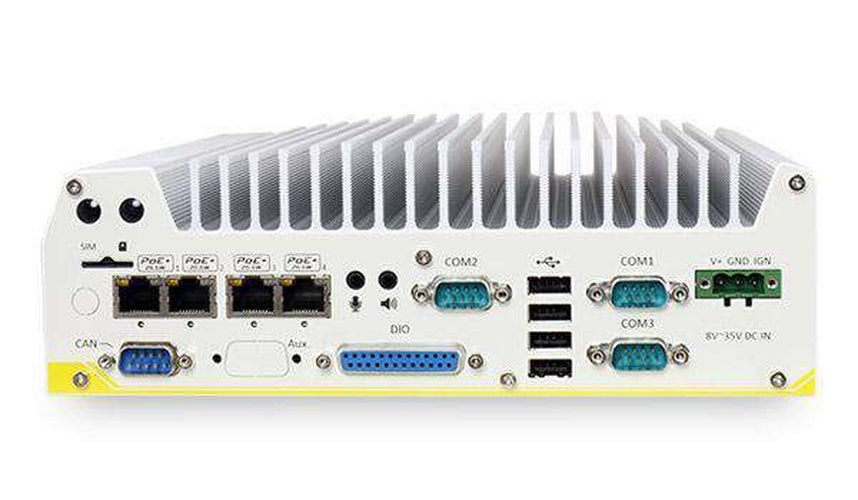

The Nuvo-5104VTC is a latest-generation Embedded PC designed for onboard computing and compliant with EN 50155 certification. Equipped with 6th-generation Intel Skylake processors, it delivers excellent CPU and GPU performance for various in-vehicle applications.
The Nuvo-5104VTC provides four PoE+ 802.3at ports that supply 25W of power to connected devices. It also features two Gigabit Ethernet ports for data communication and 4 internal slots for mini-PCIe modules supporting 3G / 4G / WIFI communications.
In addition, the Nuvo-5104VTC integrates CAN bus for in-vehicle communication and isolated DIO for sensor control. By combining ignition power control with dual-drive RAID storage, the Nuvo-5104VTC meets all the requirements of applications in this segment!
- Intel® 6-Ger Core™ i7/i5/i3 LGA1151 CPU
- up to 4x Gigabit PoE+ 802.3at ports via RJ45
- Onboard CAN bus for in-vehicle communication
- 4 isolated DI channels + 4 isolated DO channels
- 2x SATA ports for 2x 2.5" HDD/SSD drives, with hot-swappable capability and RAID 0/1 function
- 4x full-size mini-PCIe slots with SIM card support
- 8~35V wide-range DC input with ignition control
Specifications:
| System Core | |
|---|---|
| Processor | Supports Intel® Core™ i7/i5/i3 LGA1151 CPU -Core™ i7-6700TE(8M Cache, 2.4/3.4 GHz, 35W TDP) -Core™ i5-6500TE(6M Cache, 2.3/3.3 GHz, 35W TDP) -Core™ i3-6100TE(4M Cache, 2.7 GHz, 35W TDP) |
| Chipset | Intel® Q170 Platform Controller Hub |
| Graphics | Integrated Intel® HD Graphics 530 |
| Memory | Up to 32 GB of DDR4-2133 SDRAM via two SODIMM sockets |
| AMT | Supports AMT 11.0 |
| TPM | Supports TPM 2.0 |
| I/O Interface | |
|---|---|
| Ethernet | 2x Gigabit Ethernet ports via Intel® I219 and I210 |
| PoE+ | 4x IEEE 802.3at (25.5W) Gigabit PoE+ ports via Intel® I210, 80W total power budget |
| CAN | 1x CAN 2.0 port |
| Isolated DIO | 4x isolated DI and 4x isolated DO |
| USB | 4x USB 3.0 ports via native XHCI controller 4x USB 2.0 ports |
| Video Port | 1x stacked VGA + DVI-D connector 2x DisplayPort connectors, supporting 4K2K resolution |
| Serial Port | 2x software-programmable RS-232/422/485 ports (COM1 & COM2) 1x RS-232 port (COM3) |
| Audio | 1x Mic-in and 1x Speaker-out |
| Storage Interface | |
|---|---|
| SATA HDD | 1x hot-swappable HDD tray for 2.5” HDD/SSD installation 1x internal SATA port for 2.5” HDD/SSD installation, supporting RAID 0/1 |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| Expansion Bus | |
|---|---|
| Mini PCI-E | 1x full-size mini-PCIe socket with panel-accessible SIM socket 1x full-size mini-PCIe socket with internal SIM socket (mux. with mSATA) 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8~35VDC DC input |
| Remote Control & Status Output |
1x 10-pin (2x5) wafer connector for remote on/off control and status LED output |
| Mechanical | |
| Dimensions | 240 mm (W) x 225 mm (D) x 79 mm (H) |
| Weight | 3.3 Kg |
| Mounting | Neousys’ patented damping bracket (standard) or optional DIN-Rail mounting |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ 70°C */** |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 axes (with SSD, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, half-sine, 11 ms duration (with SSD, according to IEC60068-2-27) |
| EMC | CE/FCC Class A, according to EN 55022 & EN 55024 |
* CPU loading is applied using Passmark® BurnInTest 8.0. For detailed testing criteria, please contact Neousys Technology.
** For operation at sub-zero temperatures, a wide-temperature HDD drive or Solid State Disk (SSD) is required.
Ordering Information
Nuvo-5104VTC
- Intel® 6th-Gen Skylake Core™ i7/i5/i3 in-vehicle controller with 4x PoE+ ports, DIO, CAN bus and RAID
Accessories / Options
- Optional DIN-Rail mounting kit
- 120W, 6A/20V AC/DC power adapter
- 160W, 8A/20V AC/DC power adapter
