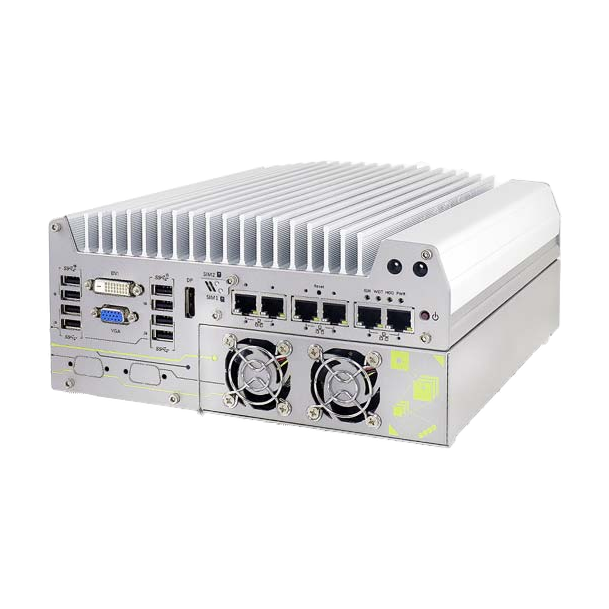

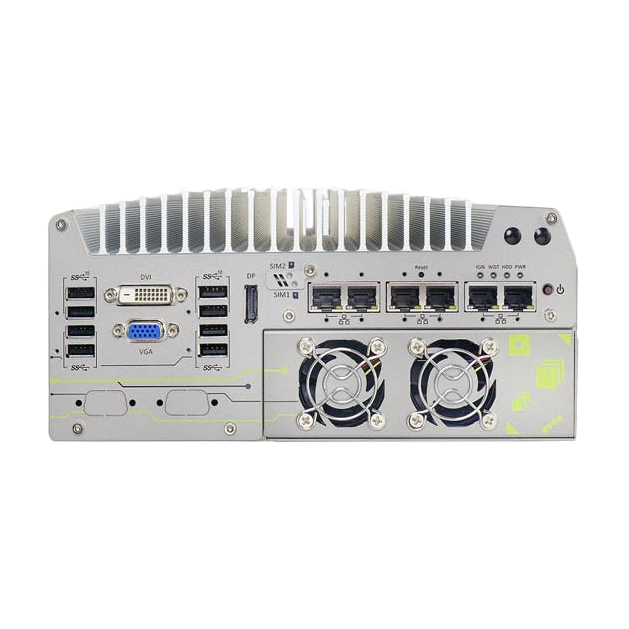

Neousys Nuvo-7160GC (Intel Core 9/8th Gen, NVIDIA up to 120W)
Nuvo-7160GC
Rugged GPU computing Edge AI platform supporting a 120W NVIDIA® GPU and Intel® 9th/8th-Gen Core™ processor
- Supports an NVIDIA® GPU graphics card with up to 120W TDP
- Patented thermal design enabling wide-temperature operation from -25°C to 60°C
- Intel® 9th/ 8th-Gen Core™ 35W/ 65W LGA1151 CPU
- 6x GigE ports supporting 9.5 KB jumbo frames
- M.2 2280 Key M socket (Gen3 x4), supporting an NVMe SSD or Intel® Optane™ memory
- 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
- Accommodates two 2.5" SATA HDD/SSDs with RAID 0/ 1 support
- Compatible with the MezIO™ interface for functional expansion
- Patented ventilation design* for the graphics card
Nuvo-7160GC is a rugged GPU-accelerated edge computing platform designed for modern machine-learning applications such as autonomous driving, facial recognition and machine vision. It supports a GPU of up to 120W, delivering 4~6 TFLOPS of computing power for inference, as well as an Intel® 9th/ 8th-Gen Coffee Lake Core™ 8/ 6-core CPU, providing up to a 50% improvement in CPU performance over previous generations.
Thanks to Neousys' patented Cassette design and innovative ventilation mechanism, Nuvo-7160GC effectively dissipates the heat generated by the GPU. Guided airflow from intake to exhaust, driven by powerful fans with smart fan control, allows a 120W GPU to operate at an ambient temperature of 60°C under 100% GPU load.
Nuvo-7160GC incorporates extensive I/O capabilities, including USB 3.1 Gen2/ Gen1, GbE, COM and the MezIO™ interface, within its compact footprint. It also leverages advanced M.2 NVMe SSD technology to deliver disk read/ write speeds of over 2000MB/s, or Intel® Optane™ memory for maximum system acceleration. Neousys Nuvo-7160GC is the ideal solution for emerging edge computing applications, combining exceptional CPU and GPU performance.
■ NEOUSYS MARKETING TEAM
Edge AI inference applications
Autonomous driving
Machine learning
AI inference
Virtual reality
| System Core | |
|---|---|
| Processor | Supports Intel® 9th/ 8th-Gen CPU (LGA1151 socket, 65W/ 35W TDP) - Intel® Core™ i7-8700/ i7-8700T/ i7-9700E/ i7-9700TE - Intel® Core™ i5-8500/ i5-8500T/ i5-9500E/ i5-9500TE - Intel® Core™ i3-8100/ i3-8100T/ i3-9100E/ i3-9100TE - Intel® Pentium® G5400/ G5400T - Intel® Celeron® G4900/ G4900T |
| Chipset | Intel® Q370 Platform Controller Hub |
| Graphics | Integrated Intel® UHD Graphics 630 |
| Memory | Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots) |
| AMT | Supports AMT 12.0 |
| TPM | Supports TPM 2.0 |
| I/O interface | |
|---|---|
| Ethernet Port | 6x Gigabit Ethernet ports via 1x I219 and 5x I210 |
| POE+ | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget |
| USB | 4x USB 3.1 Gen2 ports (10 Gbps) 4x USB 3.1 Gen1 ports (5 Gbps) |
| Video Port | 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |

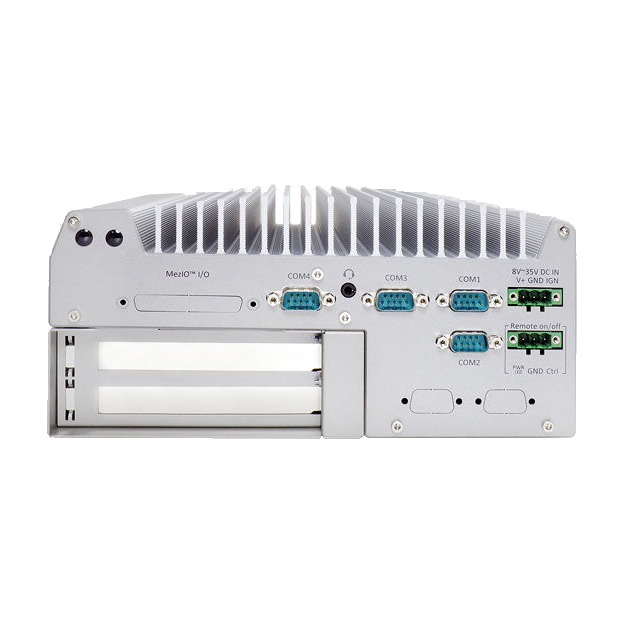

| Serial port | 2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) |
| Audio | 1x 3.5 mm jack for microphone input and speaker output |
| Internal Expansion Bus | |
|---|---|
| PCI/PCI Express | 1x PCIe x16 slot@Gen3, with 16-lanes PCIe signals in the Cassette for installing an NVIDIA® graphics card with up to 120W TDP (maximum graphics card dimensions: 188 mm(L) x 121 mm(W), dual-slot allocation) |
| Mini PCI-E | 1x full-size mini PCI Express socket with an internal SIM socket (mux with mSATA) |
| M.2 | 1x M.2 2242 Key B socket with dual front-accessible SIM sockets, supporting dual SIM mode with a selected M.2 LTE module |
| Expandable I/O | 1x MezIO™ expansion port for Neousys MezIO™ modules |
| Storage interface | |
|---|---|
| SATA HDD | 2x internal SATA ports for installing 2.5" HDD/SSDs, supporting RAID 0/ 1 |
| M.2 | 1x M.2 2280 Key M socket (PCIe Gen3/ x4) for installing an NVMe SSD or Intel® Optane™ memory |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| Power supply | |
|---|---|
| DC input | 1x 3-pin pluggable terminal block for 8V to 35V DC input |
| Remote control & LED output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical | |
|---|---|
| Dimensions | 240 mm (W) x 225 mm (D) x 111 mm (H) |
| Weight | 4.5 Kg (including CPU, GPU, memory and HDD) |
| Mounting | Wall-mount bracket |
| Environmental | |
|---|---|
| Operating temperature | With a 35W CPU and 120W GPU -25°C ~ 60°C ** With a 65W CPU and 120W GPU -25°C ~ 60°C */** (configured for 35W TDP) -25°C ~ 50°C */** (configured for 65W TDP) |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10% ~ 90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55024 |
* For the i7-8700 operating in 65W mode, the maximum operating temperature must be limited to 50°C, and thermal throttling may occur under sustained full load. Users can configure CPU power in the BIOS to achieve a higher operating temperature.
** For sub-zero operating temperatures, a wide-temperature-range HDD or Solid State Disk (SSD) is required.
Supported MezIO™ Modules
The Neousys MezIO™ module provides computer signals, power rails and control signals through a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/O, such as RS-232/422/485, isolated DIO and ignition power control.
(Click here for details of compatible MezIO™ modules)
Accessories
802.3at PoE+ option for GbE port 3 ~ port 6
Accessories
PA-280W-OW 280W AC/DC power adapter
