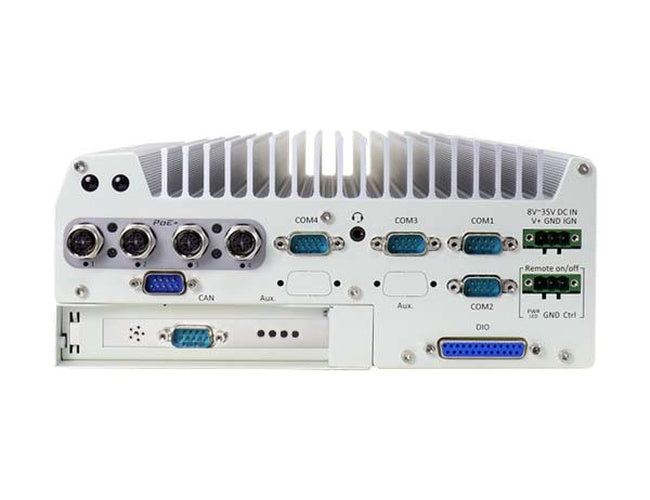

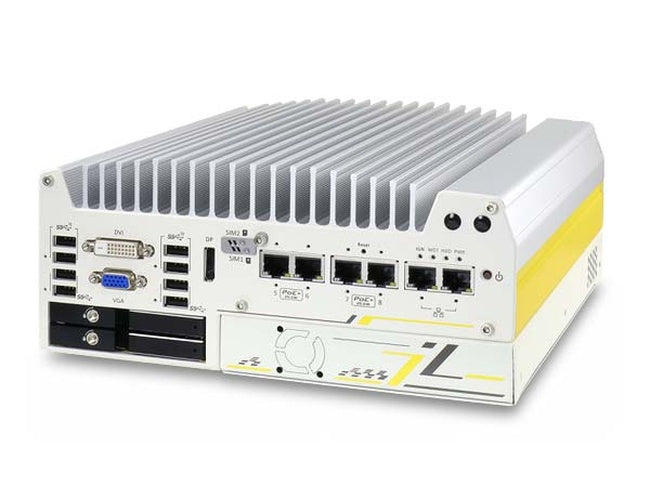

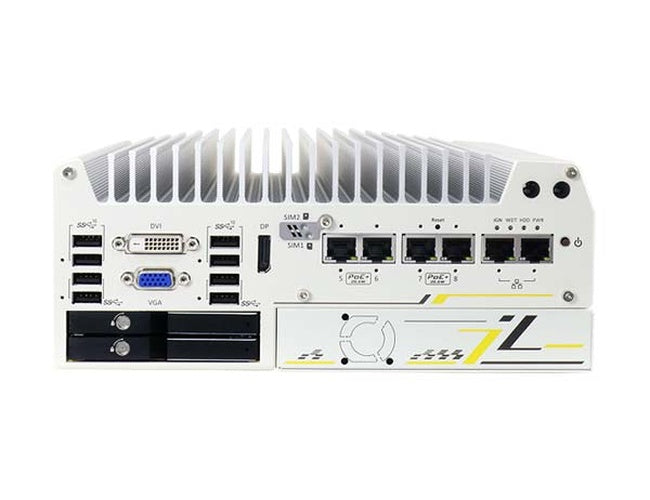

Nuvo-7200VTC

Intel® 9th/ 8th-Gen Core™ in-vehicle controller with 4x M12 PoE+ ports, DIO, CAN bus and RAID, single-slot PCI Express Cassette

  • Supports Intel® 9th/ 8th Core™ i7/ i5/ i3 LGA1151 socket-type CPU
  • 4x or 8x 802.3at Gigabit PoE+ ports via M12 or RJ45 connectors
  • Onboard isolated CAN bus for in-vehicle communication
  • 4-CH isolated DI and 4-CH isolated DO
  • 2x hot-swappable SATA HDD trays, supporting RAID 0/1
  • 2x M.2 B key and 3x full-size mini-PCIe sockets
  • 8~35V wide-range DC input with built-in ignition power control
  • Patented Cassette for PCIe add-on card accommodation*
  • E-Mark and EN 50155/ EN45545 certificate
Vista Rápida

Nuvo-7200VTC is a rugged in-vehicle controller featuring Neousys' patented Cassette module with a x16 PCIe slot for add-on application card flexibility. Powered by Intel® 9th/ 8th-Gen Core™ processors with up to 8-core/ 8-thread and 64GB DDR4 memory, the system is ideal for advance in-vehicle applications. Nuvo-7200VTC offers an assortment of peripherals, connections and expansion flexibility. It has four or eight 802.3at PoE+ ports to supply 25W power to connected devices such as IP cameras with M12 (x-coded connectors) and connector screw-lock mechanisms on I/Os like Gigabit Ethernet, USB 3.1 Gen1 and USB 3.1 Gen2 to guarantee extreme rugged connectivity in shock/ vibration environments. There are two M.2 and three mini-PCIe sockets to install 3G/ 4G, WIFI, GPS, and CAN module for wireless communication. Neousys also offers a 4G cellular module option certified to work with renowned US telecommunications company which can save you implementation time and cost.

On top of all that, Neousys' patented Cassette design offers one additional PCIe slot for an add-on card, making it that much more flexible for invehicle applications. Nuvo-7200VTC also features two hot-swappable SATA HDD trays, isolated CAN bus for in-vehicle communication, isolated DIO for sensor/ actuator control, 8V to 35V wide-range DC input with ignition power control and is in compliance with E-Mark and EN 50155/ EN45545. The Nuvo7200VTC is a flexible and reliable solution for various in-vehicle applications.

■ NEOUSYS MARKETING TEAM

Especificações
System Core
Processor Supports Intel® 9th/8th-Gen Coffee Lake CPU (LGA1151 socket, 35W TDP)
- Intel® Core™ i7-8700T/ i7-9700TE
- Intel® Core™ i5-8500T/ i5-9500TE
- Intel® Core™ i3-8100T/ i3-9100TE
Chipset Intel® Q370 platform controller hub
Graphics Integrated Intel® HD Graphics 630
Memory Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
AMT Supports AMT 12.0
TPM Supports TPM 2.0
I/O Interface
Ethernet 2x Gigabit Ethernet ports by Intel® I219 and I210
PoE+ 4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210
- M12 x-coded connector (Nuvo-7200VTC);
- RJ45 connector (Nuvo-7204VTC)

8x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210
- RJ45 connector (Nuvo-7208VTC)
CAN 1x isolated CAN 2.0 port
Isolated DIO 4x isolated DI and 4x isolated DO
USB 4x USB 3.1 Gen2 (10 Gbps) ports
4x USB 3.1 Gen1 (5 Gbps) ports
Video Port 1x VGA connector, supporting 1920 x 1200 resolution
1x DVI-D connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port 2x software-programmable RS-232/422/485 ports (COM1/ COM2)
2x RS-232 ports (COM3/ COM4)
Audio 1x Mic-in and 1x speaker-out
Storage Interface
SATA HDD 2x hot-swappable HDD tray for 2.5" HDD/ SSD installation, supporting RAID 0/ 1
mSATA 1x full-size mSATA port (mux with mini-PCIe)
M.2 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
Expansion Bus
PCI Express 1x PCIe x16 slot @Gen3, 16-lanes PCIe signals in Cassette
Mini PCI-E 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)
2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets
M.2 2x M.2 2242 B key socket, one with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module
Power Supply
DC Input 1x 3-pin pluggable terminal block for 8V to 35V DC input (IGN/ GND/ V+)
Remote Ctrl. &
Status Output
1x 3-pin pluggable terminal block for remote control and PWR LED output
Mechanical
Dimension 240 mm (W) x 225 mm (D) x 103mm (H)
Weight 3.7 kg
Mounting Mounting Wall-mount with damping brackets (Standard) or DIN-rail mount (optional)
Environmental
Operating Temperature -40°C ~ 70°C **
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
Shock IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
EMC EN 50155/ EN 45545 (Nuvo-7200VTC),
E-Mark (Nuvo-7208VTC)
CE/FCC Class A, according to EN 55032 & EN 55024 Specifications
■ Date last revised: Jul. 16, 2019

* For i7-9700E and i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.

Downloads
Acessórios

Cbl-M12X8M-RJ45-500CM

M12 (8-pole-X-coded) to RJ45, CAT6, length : 500CM

Cbl-M12X8M-RJ45-1000CM

M12 (8-pole-X-coded) to RJ45, CAT6, length : 100CM

PA-120W-OW

120W AC/DC power adapter 20V/6A; 18AWG/120cm; cord end terminals for terminal block, operating temperature : -30 to 70 °C.



Optional Cellular Module

NSIO-LTE-7455

Cat. 6 LTE embedded socket modem
