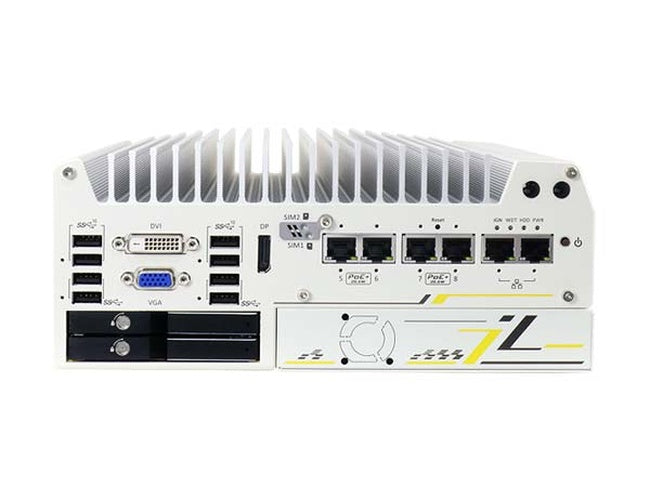

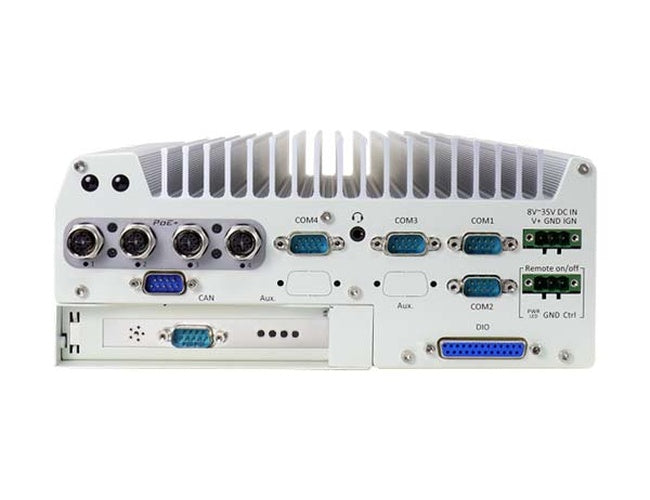

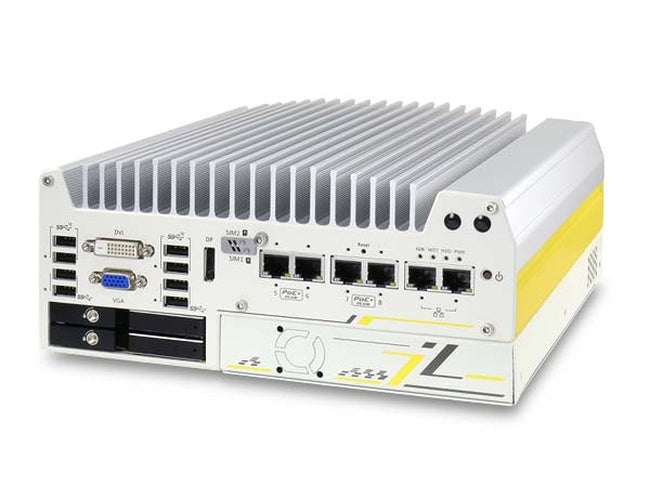

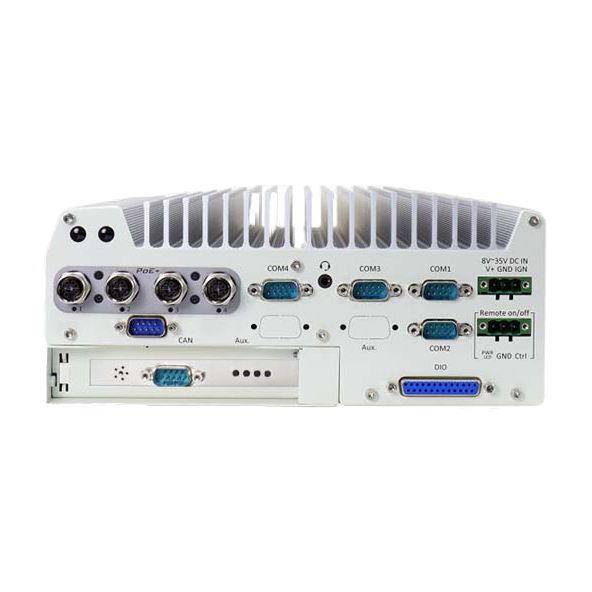

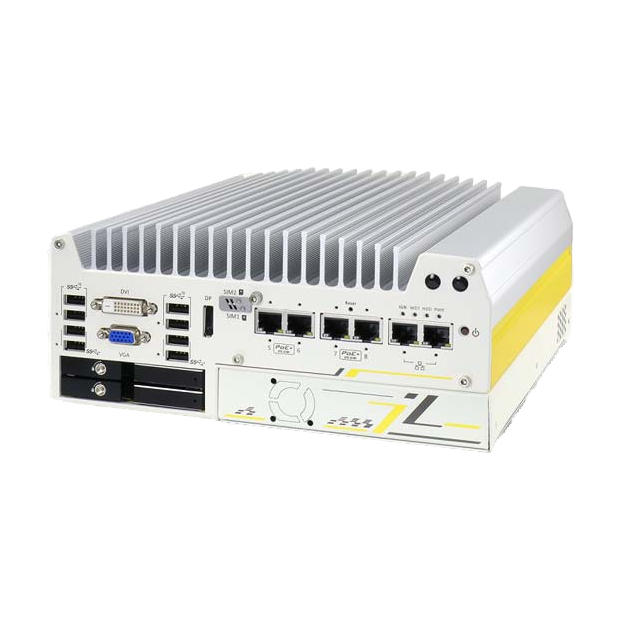

Nuvo-7204VTC

Intel® 9th/ 8th-Gen Core™ in-vehicle controller with 4x RJ45 PoE+ ports, DIO, CAN bus and RAID, single-slot PCI Express Cassette

Supports Intel® 9th/ 8th-Gen Core™ i7/ i5/ i3 LGA1151 socket-type CPU
4x or 8x 802.3at Gigabit PoE+ ports via M12 or RJ45 connectors
Onboard isolated CAN bus for in-vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x hot-swappable SATA HDD trays, supporting RAID 0/1
2x M.2 B-key sockets and 3x full-size mini-PCIe sockets
8~35V wide-range DC input with built-in ignition power control
Patented Cassette for PCIe add-on card accommodation*
E-Mark and EN 50155/ EN45545 certification

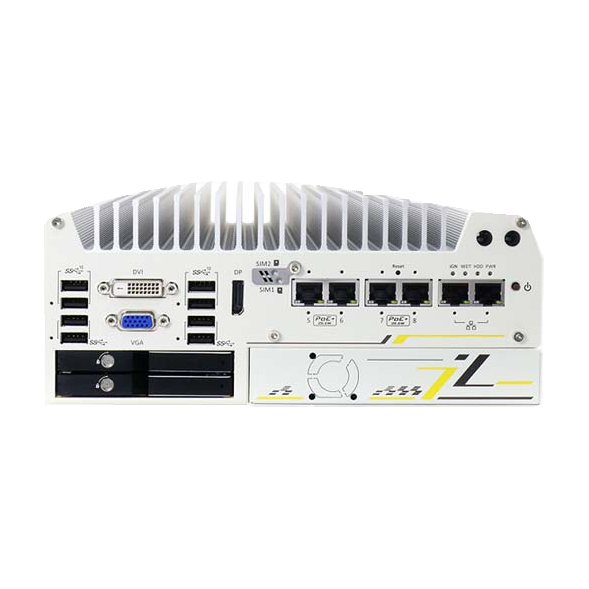

Nuvo-7200VTC is a rugged in-vehicle controller featuring Neousys' patented Cassette module with a x16 PCIe slot for flexible installation of add-on application cards. Powered by Intel® 9th/ 8th-Gen Core™ processors with up to 8-core/ 8-thread and 64GB DDR4 memory, the system is ideal for advanced in-vehicle applications. Nuvo-7200VTC offers a broad range of peripherals, connectivity and expansion options. It has four or eight 802.3at PoE+ ports that supply 25W of power to connected devices such as IP cameras, M12 (x-coded connectors), and connector screw-lock mechanisms on I/Os such as Gigabit Ethernet, USB 3.1 Gen1 and USB 3.1 Gen2 to ensure extremely rugged connectivity in shock/vibration environments. There are two M.2 sockets and three mini-PCIe sockets for installing 3G/ 4G, WIFI, GPS and CAN modules for wireless communication. Neousys also offers a 4G cellular module option certified to operate with a renowned US telecommunications company, reducing implementation time and cost.

In addition, Neousys' patented Cassette design provides one additional PCIe slot for an add-on card, offering even greater flexibility for in-vehicle applications. Nuvo-7200VTC also features two hot-swappable SATA HDD trays, an isolated CAN bus for in-vehicle communication, isolated DIO for sensor/actuator control, an 8V to 35V wide-range DC input with ignition power control, and compliance with E-Mark and EN 50155/ EN45545. The Nuvo7200VTC is a flexible and reliable solution for a wide range of in-vehicle applications.

■ NEOUSYS MARKETING TEAM

System Core
Processor	Supports Intel® 9th/8th-Gen Coffee Lake CPU (LGA1151 socket, 35W TDP) - Intel® Core™ i7-8700T/ i7-9700TE - Intel® Core™ i5-8500T/ i5-9500TE - Intel® Core™ i3-8100T/ i3-9100TE
Chipset	Intel® Q370 platform controller hub
Graphics	Integrated Intel® HD Graphics 630
Memory	Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
AMT	Supports AMT 12.0
TPM	Supports TPM 2.0

I/O Interface
Ethernet	2x Gigabit Ethernet ports via Intel® I219 and I210
PoE+	4x IEEE 802.3at (25.5W) Gigabit PoE+ ports via Intel® I210 - M12 x-coded connector (Nuvo-7200VTC); - RJ45 connector (Nuvo-7204VTC) 8x IEEE 802.3at (25.5W) Gigabit PoE+ ports via Intel® I210 - RJ45 connector (Nuvo-7208VTC)
CAN	1x isolated CAN 2.0 port
Isolated DIO	4x isolated DI and 4x isolated DO
USB	4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports
Video Port	1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port	2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4)
Audio	1x Mic-in and 1x speaker-out

Storage Interface
SATA HDD	2x hot-swappable HDD trays for 2.5" HDD/ SSD installation, supporting RAID 0/ 1
mSATA	1x full-size mSATA port (mux with mini-PCIe)
M.2	1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation

Expansion Bus
PCI Express	1x PCIe x16 slot @Gen3, 16-lanes PCIe signals in Cassette
Mini PCI-E	1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA) 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets
M.2	2x M.2 2242 B key sockets, one with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8V to 35V DC input (IGN/ GND/ V+)
Remote control & Status Output	1x 3-pin pluggable terminal block for remote control and PWR LED output

Mechanical
Dimensions	240 mm (W) x 225 mm (D) x 103mm (H)
Weight	3.7 kg
Mounting	Wall mounting with damping brackets (standard) or DIN-rail mounting (optional)

Environmental
Operating Temperature	-40°C ~ 70°C **
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	IEC61373:2010, Category 1, Class B, body-mounted (part of EN50155)
Shock	IEC61373:2010, Category 1, Class B, body-mounted (part of EN50155)
EMC	EN 50155/ EN 45545 (Nuvo-7200VTC), E-Mark (Nuvo-7208VTC) CE/FCC Class A, according to EN 55032 & EN 55024 specifications

■ Date last revised: Jul. 16, 2019

* For i7-9700E and i7-8700 operating in 65W mode, the maximum operating temperature must be limited to 50°C, and thermal throttling may occur under sustained full load. Users can configure CPU power in BIOS to achieve a higher operating temperature.
** For sub-zero operating temperatures, a wide-temperature HDD or solid-state drive (SSD) is required.
