Intel® 9th/ 8th -Gen Core™ i7/ i5/ i3 compact fanless computer with 4x GbE , 4x USB3.1 and 1X hot-swappable HDD tray

212 x 165 x 63 mm low-profile design
Intel® 9th/ 8th-Gen Core™ 35W/ 65W LGA1151 CPU
Rugged, -25°C to 60°C fanless operation
4x GbE and 4x USB3.1 Gen1 with screw-lock
1x hot-swappable HDD tray and 1x M.2 2280 socket for storage
4-CH isolated DI and 4-CH isolated DO
DVI-I + DP dual display outputs
Optional ignition power control

Nuvo-7531 is one of the most compact fanless embedded controllers supporting Intel® 9th/ 8th-Gen Core™ CPUs. Measuring just 212 x 165 x 63mm, it fits comfortably into confined spaces. Despite its compact size, Nuvo-7531 does not compromise on performance. Based on Intel® 9th/ 8thGen Core™ 65W/ 35W CPUs, it can deliver more than 50% additional performance compared with the previous generation. Nuvo-7531 is a compact and powerful fanless embedded controller for a variety of industrial applications.

The Nuvo-7531 provides extensive I/O functionality. It features four GbE ports and four USB3.1 ports for multiple GbE and USB cameras. The hotswappable HDD tray allows the storage drive to be hot-swapped without shutting down the system or dismantling the chassis. There are three mPCIe slots for installing WIFI or 3G/ 4G connectivity to meet wireless communication requirements. In addition, Nuvo-7531 is equipped with 8x DIO, 2x COM ports and dual display outputs for application requirements.

For a compact embedded controller, Nuvo-7531 delivers impressive computing power and extensive I/O functionality. It is suitable for a variety of industrial applications, especially where space is limited. Nuvo-7531 is a small powerhouse in the world of rugged embedded controllers.

System Core
Processor	Supports Intel® 9th/ 8th-Gen Core™ CPUs (LGA1151 socket) - Intel® Core™ i7-9700E/ i7-9700TE/ i7-8700/ i7-8700T - Intel® Core™ i5-9500E/ i5-9500TE/ i5-8500/ i5-8500T - Intel® Core™ i3-9100E/ i3-9100TE/ i3-8100/ i3-8100T
Chipset	Intel® H310 platform controller hub
Graphics	Integrated Intel® UHD Graphics 630
Memory	Up to 32 GB DDR4 2666/ 2400 SDRAM (one SODIMM slot)

I/O interface
Ethernet port	4x Gigabit Ethernet ports via I219 and 3x I210
USB 3.1	4x USB 3.1 Gen1 (5 Gbps) ports
USB 2.0	2x USB 2.0 ports
Video port (Integrated graphics)	1x DVI-I for DVI/VGA output, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution
Serial Port	2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2)
Audio	1x 3.5 mm jack for mic-in and speaker-out
Isolated DIO	4-CH isolated DI and 4-CH isolated DO

Storage interface
SATA HDD	1x hot-swappable 2.5" HDD/ SSD tray
M.2	1x M.2 2280 SATA interface

Internal Expansion Bus
Mini PCI Express	3x full-size Mini PCI Express sockets with internal SIM sockets

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8V to 35V DC input with optional ignition power control
Remote control & LED output	1x 10-pin (2x5) pin header for remote on/off control and status LED output

Mechanical
Dimension	212 mm (W) x 165 mm (D) x 63 mm (H)
Weight	2.5 kg
Mounting	Wall-mount (standard) or DIN-rail mount (optional)

Environmental

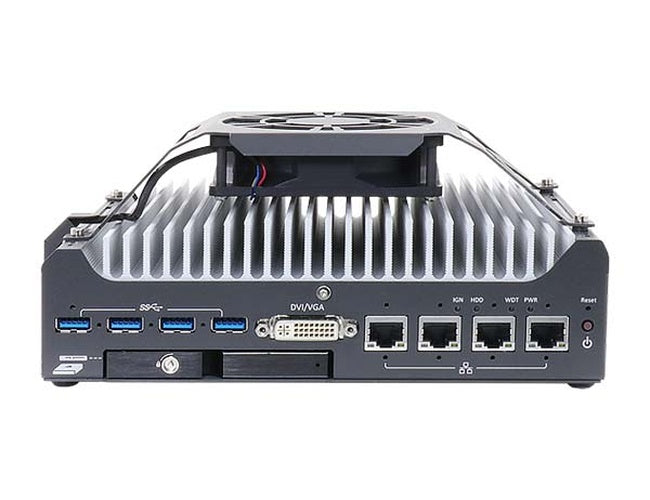

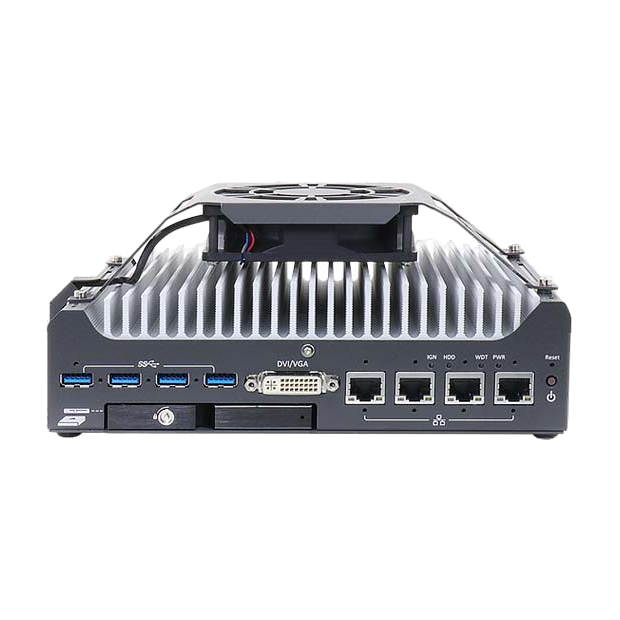

Operating temperature	with 35W CPU -25°C ~ 60°C /* with 65W CPU, optional fan kit is required -25°C ~ 60°C /*
Storage temperature	-40°C~ 85°C
Humidity	10%~ 90% , non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC	CE/FCC Class A, according to EN 55032 & EN 55024

■ Date last revised: May. 12, 2020

* For sub-zero operating temperatures, a wide-temperature HDD or Solid State Disk (SSD) is required.
** For i7 CPUs, thermal throttling may occur under sustained full load at an ambient temperature of 60°C.
