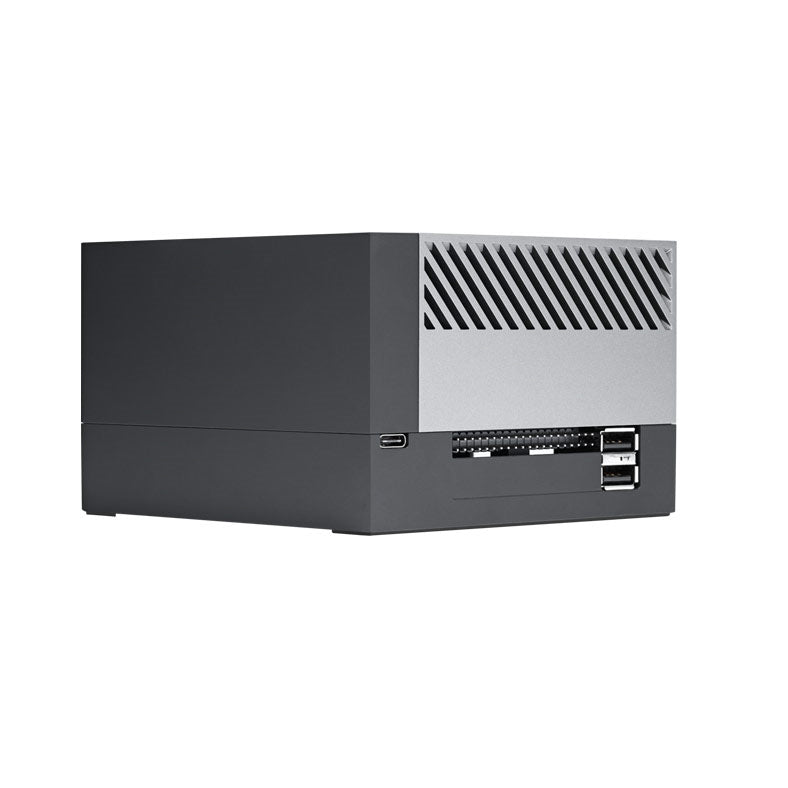

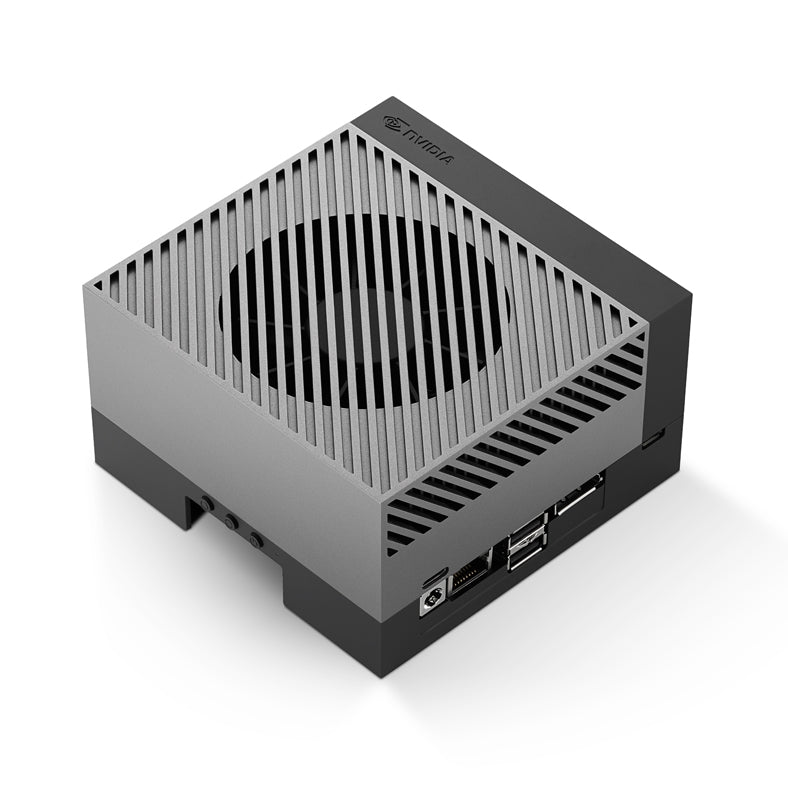

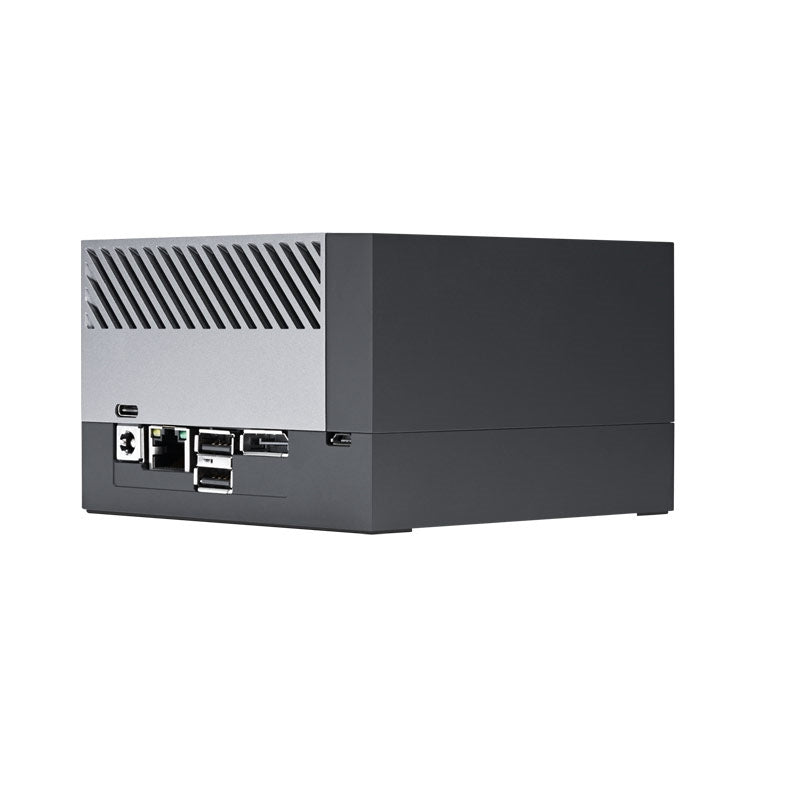

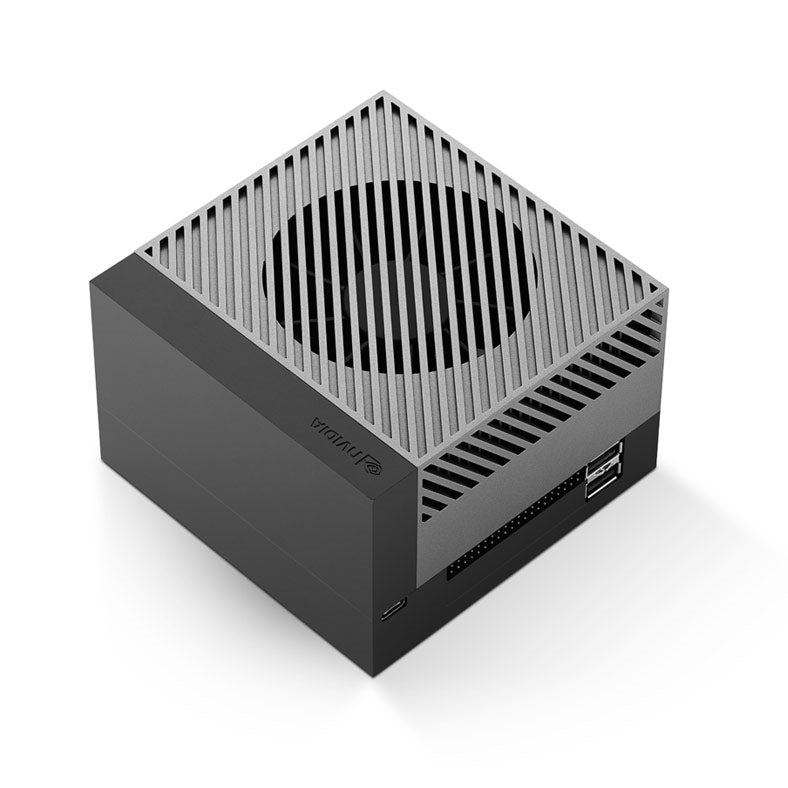

NVIDIA Jetson AGX Orin Development Kit
Next-Level AI Performance for Next-Gen Robotics
- 2048-core NVIDIA Ampere architecture GPU with 64 Tensor cores
- 2x NVDLA v2.0
- 12-core Arm Cortex-A78AE v8.2 64-bit CPU
- 32GB 256-bit LPDDR5
- 64GB eMMC 5.1
- PVA v2.0
The NVIDIA Jetson AGX Orin Developer Kit makes it easy to get started with Jetson Orin. Its compact size, numerous connectors, and up to 275 TOPS of AI performance make this developer kit ideal for prototyping advanced AI-powered robots and other autonomous machines.
The developer kit includes a Jetson AGX Orin module and can emulate all Jetson Orin modules. It supports multiple concurrent AI application pipelines through the NVIDIA Ampere GPU architecture, next-generation deep-learning and vision accelerators, high-speed IO, and high memory bandwidth. You can now develop solutions using your largest and most complex AI models to solve problems such as natural language understanding, 3D perception, and multi-sensor fusion.
Jetson runs the NVIDIA AI software stack, with use-case-specific application frameworks including Isaac for robotics, DeepStream for vision AI, and Riva for conversational AI. You can save significant time with NVIDIA Omniverse Replicator for synthetic data generation (SDG) and NVIDIA TAO toolkit for fine-tuning pretrained AI models from the NGC catalog.
With the computing capability of more than eight Jetson AGX Xavier systems in a developer kit that integrates the latest NVIDIA GPU technology with the world’s most advanced deep-learning software stack, you’ll have the flexibility to create the next generation of AI solutions.
Learn more at www.nvidia.com/JetsonAGXOrin
Developer Kit Contents
Jetson AGX Orin module with heat sink and reference carrier board
802.11ac/abgn wireless Network Interface Controller
USB-C power adapter and cord
Quick Start and Support Guide
Jetson AGX Orin module
2048-core NVIDIA Ampere architecture GPU with 64 Tensor cores
2x NVDLA v2.0
12-core Arm Cortex-A78AE v8.2 64-bit CPU
32GB 256-bit LPDDR5
64GB eMMC 5.1
PVA v2.0
32GB 256-bit LPDD5
Reference carrier board
MIPI CSI-2 camera connector
PCIe x16 connector (supports x8)
Gigabit Ethernet
M.2 Key E, M.2. Key M
2x USB Type-C
4x USB 3.2 Type-A
Micro-USB 2.0 (for Device Mode)
DisplayPort Dual-Mode
microSD slot
40-pin header (GPIOs, I2C, I2S, SPI, UART)
Power, Force Recovery, and Reset buttons
JETSON AGX ORIN MODULE
| AI Performance | 275 TOPs |
| GPU | NVIDIA Ampere architecture with 2048 NVIDIA CUDA cores and 64 tensor cores |
| CPU | 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| DL Accelerator | 2x NVDLA v2.0 |
| Vision Accelerator | PVA v2.0 |
| Memory | 32GB 256-bit LPDDR5 204.8 GB/s |
| Storage | 64GB eMMC 5.1 |
| Video encoding | 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) |
| Video Decode | 1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60 | 22x 1080p30 (H.265) |
| Power | 15W-60W |
Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.
REFERENCE CARRIER BOARD
| Camera | 16-lane MIPI CSI-2 connector |
| PCIe | x16 PCIe slot supporting: x8 PCIe Gen4 |
| RJ45 | Up to 10 GbE |
| M.2 Key M | x4 PCIe Gen 4 |
| M.2 Key E | x1 PCIe Gen 4, USB 2.0, UART, I2S |
| USB Type-C | 2x USB 3.2 Gen2 |
| USB Type-A | 2x USB 3.2 Gen2, 2x USB 3.2 Gen1 |
| USB Micro-B | USB 2.0 |
| DisplayPort | DisplayPort 1.4a (+MST) |
| microSD slot | UHS-1 cards up to SDR104 mode |
| Other | 40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC) 12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC battery backup connector DC power jack Power, Force Recovery, and Reset buttons |
| Dimensions | 110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution) |
