OpenUPS (6-34V Input 6A, 6-24V Output 10A)

OpenUPS

Any input. Any output. Any battery.

• Intelligent UPS, USB interface
• SMBUS slave and I2C master
• Buck-Boost architecture. Minimum input of 6v up to 30V
• Programmable output from 5-24V
• Default output is 12V
• Input/output current of 6A/10A peak
• Charging between 6-30V, 3A
• Voltage and current limits
• Li-Ion, Li-Po, LIFEPO4***, lead-acid
• 1, 2S, 3S, 4S, 5S, 6S
• Balancing up to 6S
• Coulomb counting (fuel gauge)
• Motherboard ON/OFF pulse control*
• The OS detects the “Battery” device
• ROHS compliant

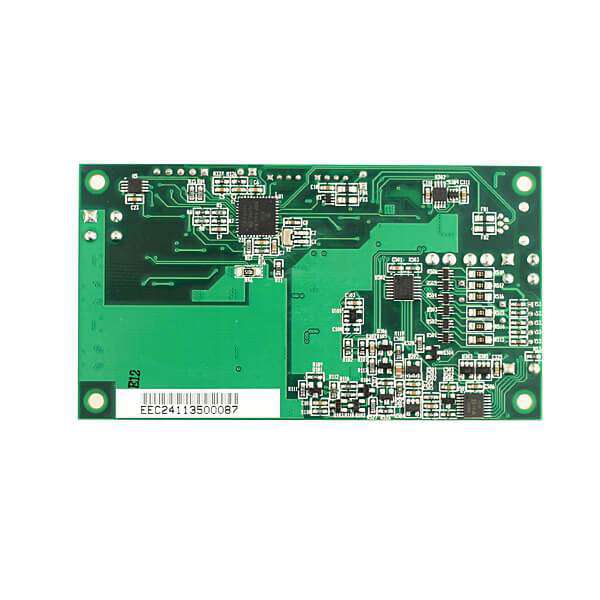

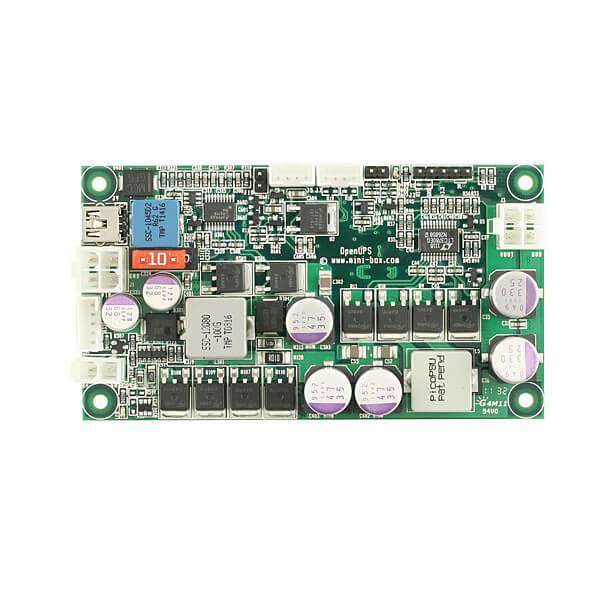

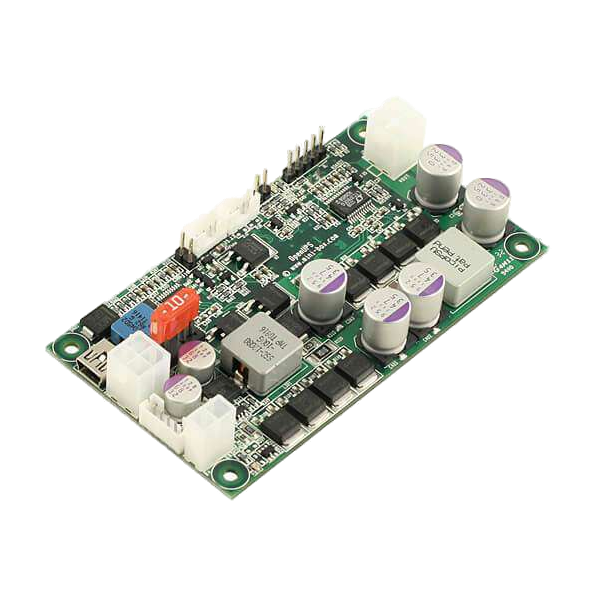

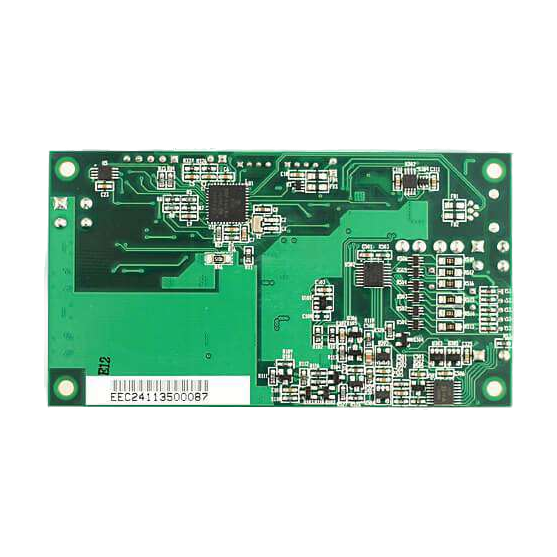

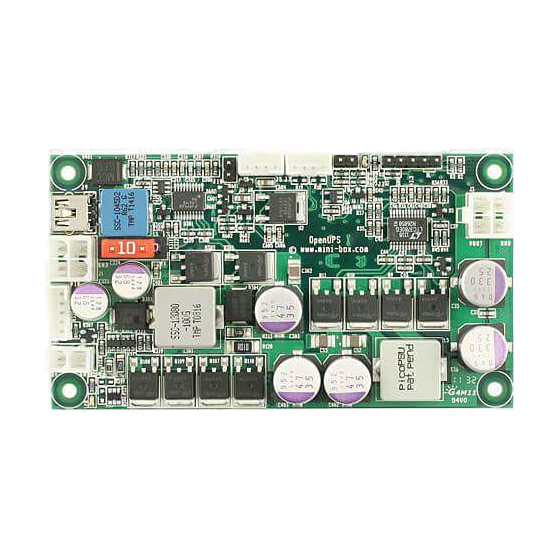

OpenUPS

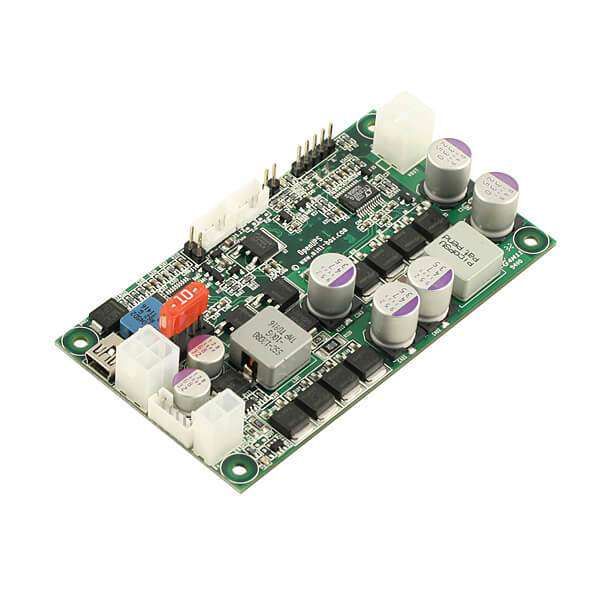

The OPEN-UPS was designed to provide user-specified regulated power output across a wide input-voltage range, with battery backup, multi-chemistry charging and cell balancing on a single PCBA. The unit automatically switches the power path between the battery and the main DC input and provides buck/boost output regulation.

OpenUPS offers strong Windows / Linux support and an API that allows developers to integrate it with custom applications.

Open-UPS provides the following features:

- Intelligent UPS, USB interface, SMBUS slave and I2C master. Communication can be performed over USB, and the device also provides SMBUS reporting capability. Windows detects OpenUPS as a battery and automatically displays the battery status in the system tray.

- Input 6-30V, programmable output 5-24V. The input can be supplied by a regulated or unregulated DC source, and the output can be programmed to any value from 5-24V, with a resolution of 0.25V or better. The output is tightly regulated by a high-efficiency synchronous buck/boost converter capable of delivering 6A (10A peak).
NOTE: The default setting supplied with openUPS is 12V.

- Li-Ion, Li-Po, LIFEPO4, lead-acid. A truly multi-chemistry battery-charging and regulation solution. If a particular battery chemistry is not supported by default, new battery profiles can be created easily. The charge current, float voltage and bulk-charging parameters can be configured through the USB interface and stored in the OPEN-UPS non-volatile flash memory.

- Fuel gauge. Open-UPS provides accurate fuel-gauge capabilities by precisely measuring input and output current flow. In low-battery situations, the system can send an ON/OFF pulse to a motherboard, or report the remaining battery capacity via USB, to allow the system to shut down gracefully.

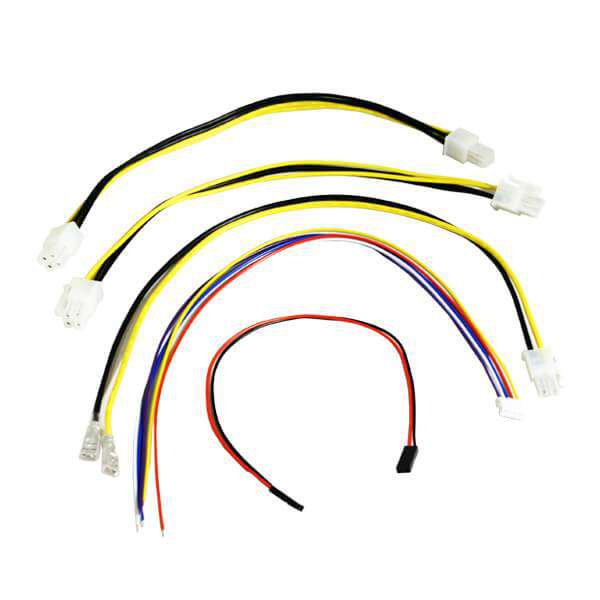

OpenUPS cables included:

Battery cable
- End_1: mini-FIT JR receptacle, 1x2pos
- End_2: cut wire
- Wire: yellow / black AWG 16
- Yellow wire close to the mini-FIT JR latch

Cable2 (battery balance cable)
End_1 JST PH connector, 5pin
End_2 cut wire
AWG 26 wire colors:
- POS1=Yellow
- POS2=Red
- POS3=Blue
- POS4=White
- POS5=Violet

Cable3
2pin-2pin - 210mm

Cable4,5
2 x P4-12V to P4-12V cables (200mm)
