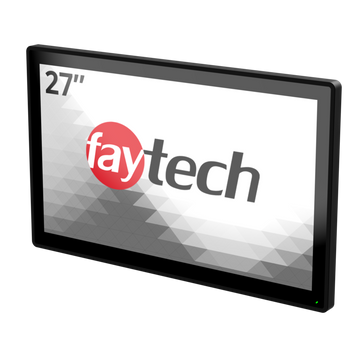

Panel PC 27' FT27BI5CAPOB (i5-1145G7E, 8GB RAM/ SSD 240GB, WiFi)
FT27BI5CAPOB
27" Capacitive Touch PC (i5-1145G7E)
- Intel® Core™ i5-1145G7E QuadCore
- 8GB RAM, SSD 240GB Industrial
- Supports Debian 12, Win 10 & 11, and Linux (32Bit, 64Bit)
- Anti-reflective surface treatment
- 1,1 mm cover glass with 7H surface hardness
- 10-point capacitive Multi Touch panel
- Patented IP65 front protection with silicone seal
- Optically bonded
- Integrated W-LAN
- Supports clamp mounting
- 2-year warranty













faytech’s Capacitive PC series stands out from the competition through its silent fanless operation, IP65 front-panel design, high reliability, and fine craftsmanship. It is the perfect choice for industrial and business applications. It features flat edge-to-edge glass, IP65 water- and dust-proof front panels, and a sturdy aluminum enclosure with stable VESA 100 mounting bolts. This solution consists of a front kit and a back kit, making the required configuration easy to customize.
This Touch PC is powered by faytech’s industrial Tiger Lake U mainboard. It features the powerful Intel Core i5-1145G7E processor with a burst frequency of up to 4.10 GHz (also available with an Intel i3-1115G4E or i7-1185G7E processor). This version is equipped with 8 GB RAM, a 240 GB SSD, and Intel’s Iris Xe Graphics chipset.
These faytech PCs are the perfect choice for a wide variety of applications, including POS systems, industrial control panels, kiosk systems, office and residential automation, digital signage, and environments such as shopping malls, classrooms, hotels, and many more.
Product details
| Model number | FT27BI5CAPOB |
| Global article code | 3030515173 |
| European article code | 1010502671 |
| EAN Number | 6920734000890 |
IP Rating
| IP65 front / IP40 rear |
PC System
| CPU | Intel® Core™ i5-1145G7E (Tiger Lake U) |
| GPU Graphics | Intel® Iris® Xe Graphics |
| Audio | |
| Memory | 8 GB DDR4 |
| Replaceable storage | 240 GB SSD |
| Network | 2x Realtek® 8111H (10/100/1000 Mbit/s) |
| Preinstalled OS | Debian 12 |
LCD Panel
| Screen diagonal | 27.0" / 68.5 cm |
| Active screen size | 59.76 cm x 33.62 cm (23.52 in x 13.23 in) |
| Aspect ratio | 16:9 |
| Physical resolution | 1920 ×1080 px |
| Maximum displayable resolution | 1920 ×1080 px |
| Brightness | 300 (cd/m²) |
| Contrast | 3000:1 |
| Typical response time Tr/ Tf | - (ms) |
| Horizontal/vertical viewing angle | 178/178 (°) |
| Backlight | LED |
| Backlight lifetime | 30,000 (hours) |
Touch panel
| Touch technology | 10-point projected capacitive multitouch |
| Touch lifetime | Unlimited |
| Surface hardness | 7H |
| Surface treatment | Anti-glare (chemical etching) |
| Glass strengthening | Thermally strengthened |
Operation/Mechanical
| Operating temperature | -10 °C ~ +60 °C (14 °F ~ 140 °F) |
| Humidity range | 10% - 90% RH |
| Net weight | 8.00 (est.) kg / 17.636 lb |
| Gross weight (incl. cardboard packaging) | 10.50 (est.) kg / 23.148 lb |
| Housing material | Rubber frame sealing, aluminium IPC back |
| Housing dimensions | 663.0 mm x 405.0 mm x 56.0 mm (26.10 in x 15.94 in x 2.204 in) |
| Clamp support | Yes |
| Cut-out for clamp supports (L X H) | 639.0 mm x 381.0 mm (25.15 in x 15.00 in) |
| Number of clamps required | 9 |
| Mounting | VESA 100 |
Power
| Power indicator | Green LED |
| Power supply | 100-240V ACDC active switching; 12V DC-Out |
| Operating voltage | 9-36 V |
| Power consumption | 38.6 W |
| Standby power | 1 W |
Internal connectors
| Contact Sales for more information |
External connectors
| 1x 9-36V DC-In (screw-lockable) 1x W-LAN antenna connector (RP-SMA male) 2x USB 2.0 2x USB 3.0 1x HDMI 1x DP 1x Audio-In / Out (Realtek® ALC897 Audio CODEC) 1x SIM-card slot 1x SD-card slot 2x RS232 serial ports (RX / TX only) 2x Ethernet network interfaces (10/100/1000 Mbit/s, 1 PoE, Realtek® 8111H) |
Expansion slots
| N/A |
Included in the delivery
| Power supply (see Power section) Quick installation guide W-LAN antenna (RP-SMA female) |
