Mitac PD10BI (Celeron J1900 quadcore, 10 -19V DC)
Price excludes VAT
149.00€
Sale price
Price excludes VAT
149.00€
Regular price
Total with VAT (23%): 183.27€
Shipping calculated at checkout.

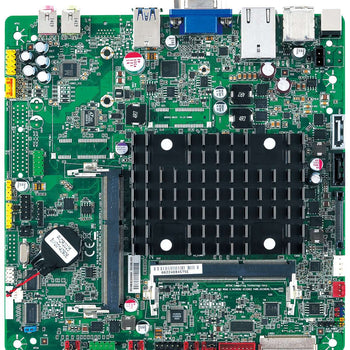

PD10BI Thin Mini-ITX Motherboard
Intel processor® Bay Trail Atom / Celeron / Pentium
2 DDR3L SO-DIMM memory modules up to 8GB
Supports three independent displays: HDMI, Display Port and LVDS/eDP
1 slot PCIe X1 (Gen 2) e 2 Mini PCIe
Wide input voltage 10V~19V
PD10BI | ||
|---|---|---|
| MECHANICAL | FORM FACTOR | Mini-ITX: 6.7" x 6.7" (170 mm x 170 mm) |
| SYSTEM | PROCESSOR | Intel® Bay Trail-D J1900 Processor |
| CHIPSET | Integrated Intel® SoC | |
| SYSTEM MEMORY | DDR3L 1333 MHz / 2 x 204-pin SO-DIMM / Max. 8GB (Non-ECC) | |
| GRAPHICS | Intel® HD Graphics | |
| ETHERNET | Realtek® RTL8111G Giga LAN | |
| AUDIO | Realtek® ALC888 | |
| I/O CHIPSET | Nuvoton NCT6683D | |
| TPM | Nuvoton NPCT420AA0WX (Optional) | |
| EXPANSION SLOT | PCIe 2.0 X1 slot / Mini PCIe Half-size (PCIe / USB) / Mini PCIe Full-size / Half-size (PCIe / USB / SATA) | |
| BIOS | AMI BIOS | |
| H/W MONITOR | Temperature monitor / Voltage monitor / Fan monitor | |
| WATCHDOG TIMER | - | |
| SMART FAN CONTROL | - | |
| GRAPHICS | VGA | Up to 1920 x 1200 @60 Hz |
| DVI | - | |
| HDMI | Up to 1920 x 1200 @60 Hz | |
| DISPLAYPORT | - | |
| LVDS | Up to 1920 x 1200 @60 Hz | |
| eDP (Option) | Up to 2560 x 1600 @60 Hz | |
| REAR I/O | USB | 2 x USB 2.0 / 2 x USB 3.0 |
| DISPLAY I/O | 1 x HDMI 1.4 / 1 x VGA | |
| AUDIO I/O | 1 x Mic-in / 1 x Line-out | |
| LAN I/O | 1 x RJ-45 | |
| SERIAL PORT | - | |
| PS/2 PORT | - | |
| OTHERS | DC-in jack 8-19V (2.5 mm / ID, 5.5 mm / OD) | |
| INTERNAL CONNECTORS | STORAGE | 2 x SATAIII (1 x SATA is multiplexed with 1 x mSATA port) |
| USB | 3 x USB 2.0 | |
| DISPLAY I/O | 1 x LVDS (*Optional eDP SKU available) / 1 x backlight connector | |
| AUDIO I/O | 1 x Stereo Speaker Header / 1 x Audio Header (Front Panel Mic-in & Line-out) / 1 x Digital Mic / 1 x S/PDIF Out Audio Header (4-pin) | |
| SERIAL PORT | 2 x RS232 | |
| PARALLEL PORT | 1 x Parallel Port Header | |
| GPIO | - | |
| FAN | 1 x 4-pin CPU Fan Header / 1 x 3-pin System Fan Header | |
| POWER | 1 x 2-pin Power Connector | |
| OTHERS | 1 x CMOS Jumper | |
| POWER REQUIREMENT | POWER INPUT | 2-pin Internal Power Connector + DC Jack / DC-in 8~19V |
| ENVIRONMENTAL | OPERATING TEMPERATURE | 0 ~ 60°C (32 ~140°F) |
| STORAGE TEMPERATURE | -20 ~ 70°C (-4 ~158°F) | |
| OPERATING HUMIDITY | 10% ~ 95% R/H (Non-condensing) | |
| CERTIFICATION | CE / FCC Class B | |
| OS | OS SUPPORT | Windows® 10 64-bit / Windows® 7 32 / 64bit / Windows® 8.1 64-bit / Linux (support available upon request) |
| PACKING LIST | PACKAGE | 1 x Motherboard / 1 x 50 cm SATA Cable / 1 x 45 cm SATA Power Cable / 2 x I/O Brackets (Half and Full Height) / 1 x Driver CD / 1 x Quick Installation Guide |
