- Intel® Apollo Lake Pentium® N4200 and Atom™ E3950 quad-core processors
- Fanless and rugged design with wide-temperature operation (-25 °C to 70 °C)
- One GbE port and two Gigabit PoE+ ports
- Two USB 3.0 ports and two USB 2.0 ports
- DVI + VGA dual display outputs
- DIN-mounting design with front I/O access
- MezIO™ compatible
Overview
Introduction
Experience the giant leap in performance offered by the Intel® Apollo Lake Pentium® and Atom™ platform! The POC-300 series features the latest Pentium® N4200 and Atom™ x7-E3950 quad-core processors, offering up to 1.5 times the CPU performance and a 3-fold improvement in GPU performance compared with the previous-generation Atom™ E3845 CPU.
The POC-300 series features an ingenious mechanical design that combines a DIN-rail mounting chassis with front-accessible I/O in an ultra-compact enclosure. It provides a rich set of computer-style I/Os, including GbE, USB 3.0/2,0, COM ports and mSATA storage, in a compact footprint measuring just 5.6 x 15 x 11 cm. IEEE 802.3at PoE+ is also available on 2 of the 3 GbE ports to power cameras for machine-vision or surveillance applications. The POC-300 series features Neousys' MezIO™ interface for easy functional expansion through versatile MezIO™ modules.
Building on Neousys' proven fanless design heritage, the POC-300 series operates reliably in harsh environments. With rich I/O connectivity, an advanced CPU and a compact form factor, the POC-300 is a compelling fanless embedded controller for various industrial applications.
Product Highlights
Apollo Lake Atom™ x7-E3950 Quad-core Processor
Powered by the latest Atom™ x7-E3950 quad-core processor, the POC-300 supports faster memory speeds (greater memory bandwidth) for efficient computing. It delivers more than 150% CPU performance and 300% GPU performance compared with the previous E3800 series platform.
Wide Temperature Range
The POC-300 features an exclusive mechanical design and an efficient thermal pad that effectively dissipates heat from the CPU and other components. The POC-300 can operate under 100% CPU load across a wide operating temperature range from -25℃ to 70℃.

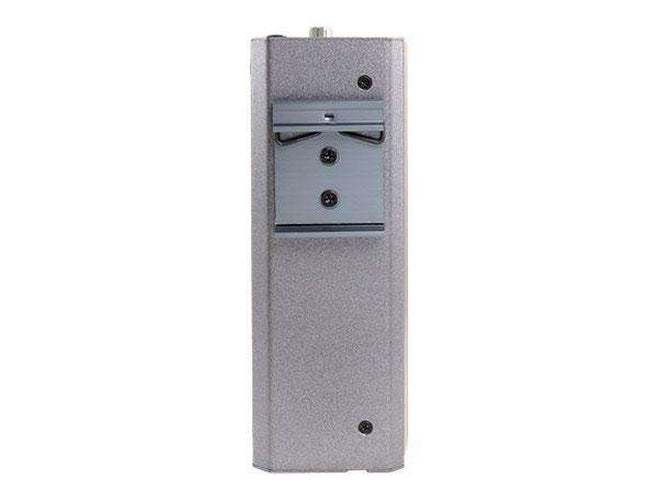

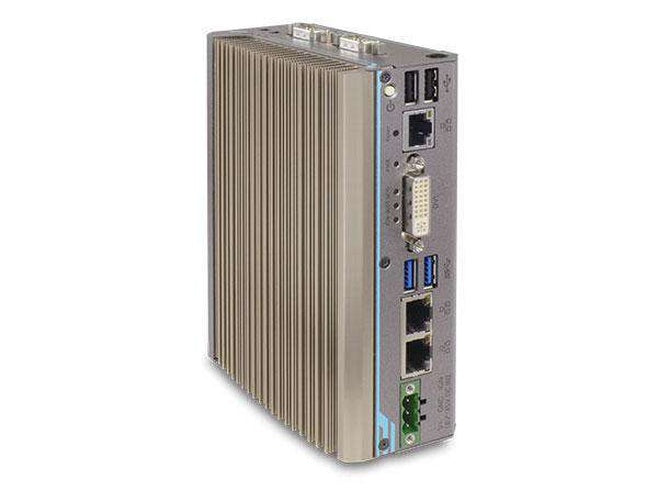

Front-accessible I/O and DIN-rail Mounting Design

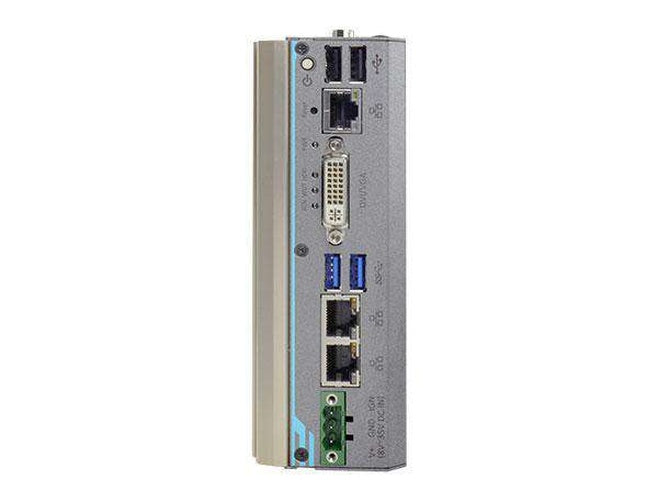

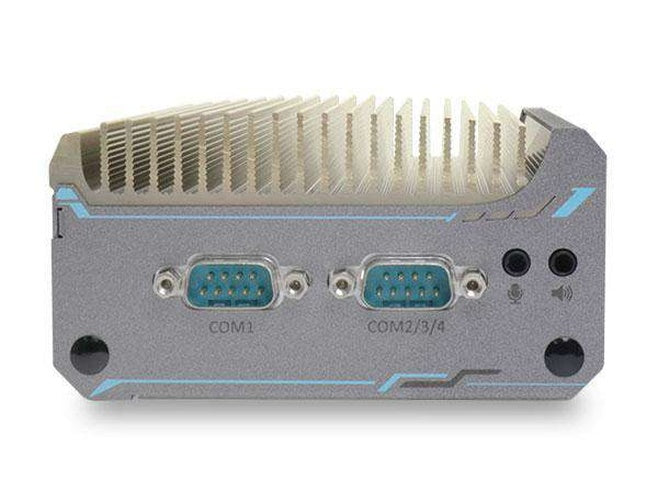

The POC-300's front-accessible I/O ports include PoE+, USB3.0, Ethernet, DVI and a COM port on the top. It also features a DIN-Rail mounting design that is convenient and easy to deploy in space-constrained environments.
(view deployment animation)
MezIO™ Interface

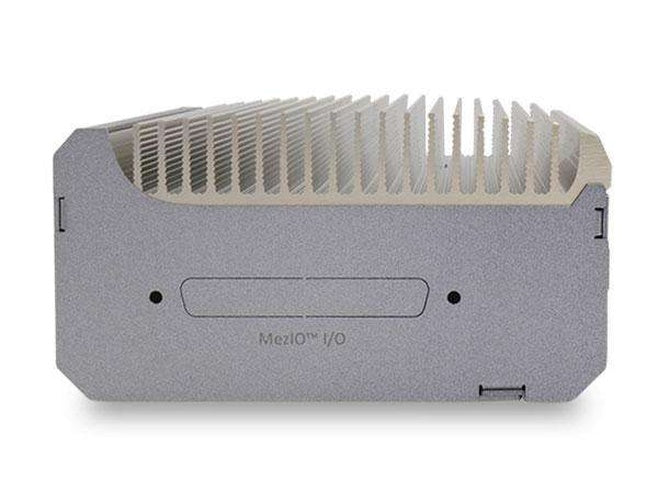

The Neousys MezIO™ interface carries computer signals, power rails and control signals through a high-speed connector. The POC-300 features one MezIO™ port, allowing users to expand the system and choose between RS-232/422/485, isolated DIO or ignition power control. The MezIO™ interface is an application-oriented expansion module that provides a flexible and cost-effective way to customize an embedded system for dedicated applications.
Specifications
| POC-300 | POC-310 | |
|---|---|
| System Core | |
| Processor | Intel® Atom™ E3950 1.6/2.0 GHz quad-core processor |
| Memory | 1x SODIMM socket for DDR3L-1866, up to 8GB |
| Graphics | Integrated Intel® HD Graphics 505 |
| Panel I/O Interface | |
|---|---|
| Ethernet | 3x Gigabit Ethernet ports via Intel® I210 GbE controller |
| POE | IEEE 802.3at PoE+ on ports #2 and #3 (available for POC-300 only) |
| Video Port | 1x DVI-I connector for both analog RGB and DVI outputs |
| Serial Port | 1x software-programmable RS-232/422/485 port (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
| USB | 2x USB 3.0 ports 2x USB 2.0 ports |
| Audio | 1x speaker-out 1x microphone-in |
| Internal I/O Interface | |
|---|---|
| Mini-PCIe | 1x full-size mini PCI Express slot with USIM socket |
| Storage Interface | |
|---|---|
| mSATA | 1x half-size mSATA port |
| SATA | 1x SATA port for 2.5" SSD/HDD installation (optional with MezIO-R11) |
| Mechanical | |
|---|---|
| Dimensions | 56 x 108 x 153 mm |
| Weight | 0.96kg |
| Mounting | DIN-rail mount (standard) Wall-mount (optional) |
| Environmental | |
|---|---|
| Operating Temperature | -25°C ~ 70°C with SSD, 100% CPU load */** -10°C ~ 50°C with HDD, 100% CPU load */** |
| Storage Temperature | -40°C ~85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 axes (with SSD, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, half-sine pulse with a duration of 11 ms (with SSD, according to IEC60068-2-27) |
| EMC | CE/FCC Class A, according to EN 55022 & EN 55024 |
| POC-320 | POC-330 | |
|---|---|
| System Core | |
| Processor | Intel® Pentium® N4200 1.1/2.5 GHz quad-core processor |
| Memory | 1x SODIMM socket for DDR3L-1866, up to 8GB |
| Graphics | Integrated Intel® HD Graphics 505 |
| Panel I/O Interface | |
|---|---|
| Ethernet | 3x Gigabit Ethernet ports via Intel® I210 GbE controller |
| POE | IEEE 802.3at PoE+ on ports #2 and #3 (available for POC-320 only) |
| Video Port | 1x DVI-I connector for both analog RGB and DVI outputs |
| Serial Port | 1x software-programmable RS-232/422/485 port (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
| USB | 2x USB 3.0 ports 2x USB 2.0 ports |
| Audio | 1x speaker-out 1x microphone-in |
| Internal I/O Interface | |
|---|---|
| Mini-PCIe | 1x full-size mini PCI Express slot with USIM socket |
| Storage Interface | |
|---|---|
| mSATA | 1x half-size mSATA port |
| SATA | 1x SATA port for 2.5" SSD/HDD installation (optional with MezIO-R11) |
| Mechanical | |
|---|---|
| Dimensions | 56 x 108 x 153 mm |
| Weight | 0.96kg |
| Mounting | DIN-rail mount (standard) Wall-mount (optional) |
| Environmental | |
|---|---|
| Operating Temperature | -25°C ~ 70°C with SSD, 100% CPU load */** -10°C ~ 50°C with HDD, 100% CPU load */** |
| Storage Temperature | -40°C ~85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 axes (with SSD, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, half-sine pulse with a duration of 11 ms (with SSD, according to IEC60068-2-27) |
| EMC | CE/FCC Class A, according to EN 55022, EN55032 & EN 55024 |
Ordering Information
POC-300
Intel® Apollo Lake Atom™ E3950 Ultra-Compact DIN-Rail Controller with 1xGbE, 2x PoE+ and 2x USB 3.0
POC-310
Intel® Apollo Lake Atom™ E3950 Ultra-Compact DIN-Rail Controller with 3xGbE and 2x USB 3.0
POC-320
Intel® Apollo Lake Pentium® N4200 ultra-compact DIN-rail controller with 1xGbE, 2x PoE+ and 2x USB 3.0
POC-330
Intel® Apollo Lake Pentium® N4200 ultra-compact DIN-rail controller with 3xGbE and 2x USB 3.0
Quick order with pre-installed MezIO™
| MezIO-R11 | MezIO-R12 | |
| POC-300 | POC-301 | POC-302 |
| POC-310 | POC-311 | POC-312 |
| POC-320 | POC-321 | POC-322 |
| POC-330 | POC-331 | POC-332 |
Supported MezIO™ modules
The Neousys MezIO™ module provides computer signals, power rails and control signals through a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/Os such as RS-232/422/485, isolated DIO and ignition power control.
Optional accessories
- 64GB mSATA mini SSD with the English version of Windows 10 IoT pre-installed*
- 128GB mSATA mini SSD with the English version of Windows 10 IoT pre-installed*
- 12V, 60W AC/DC power adapter
- Optional wall-mounting bracket
- 1-to-3 RS232 port cable
