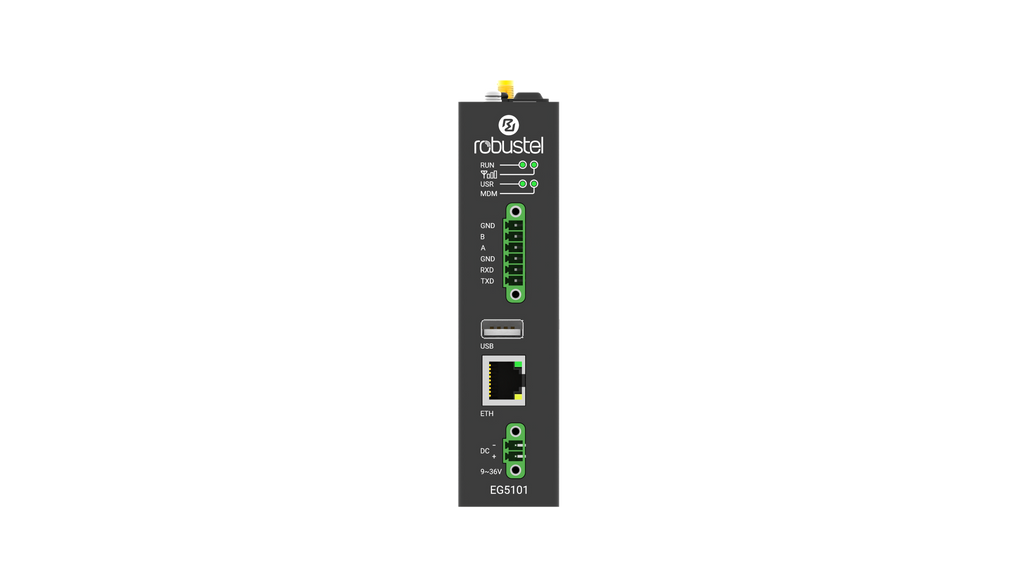

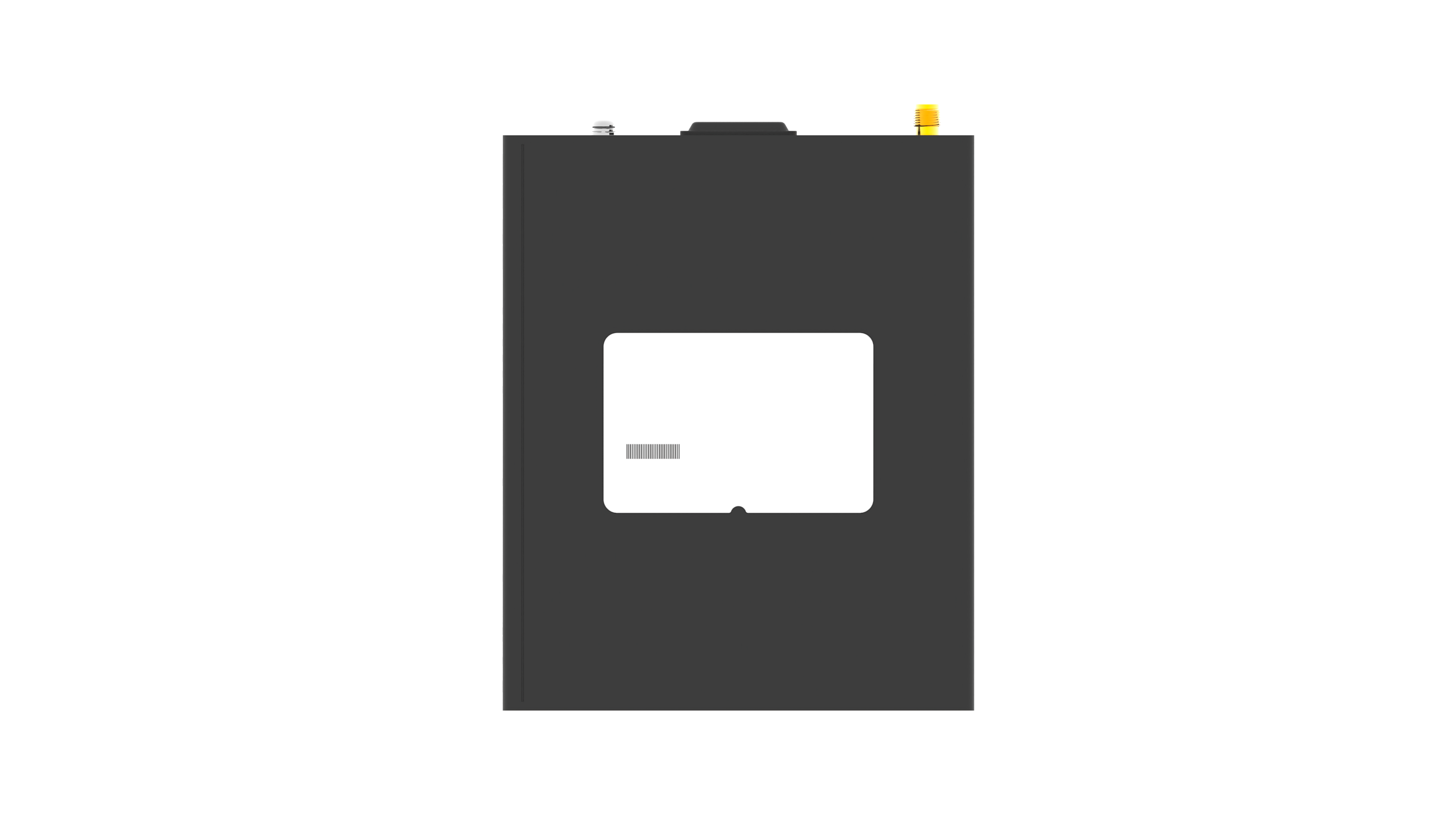

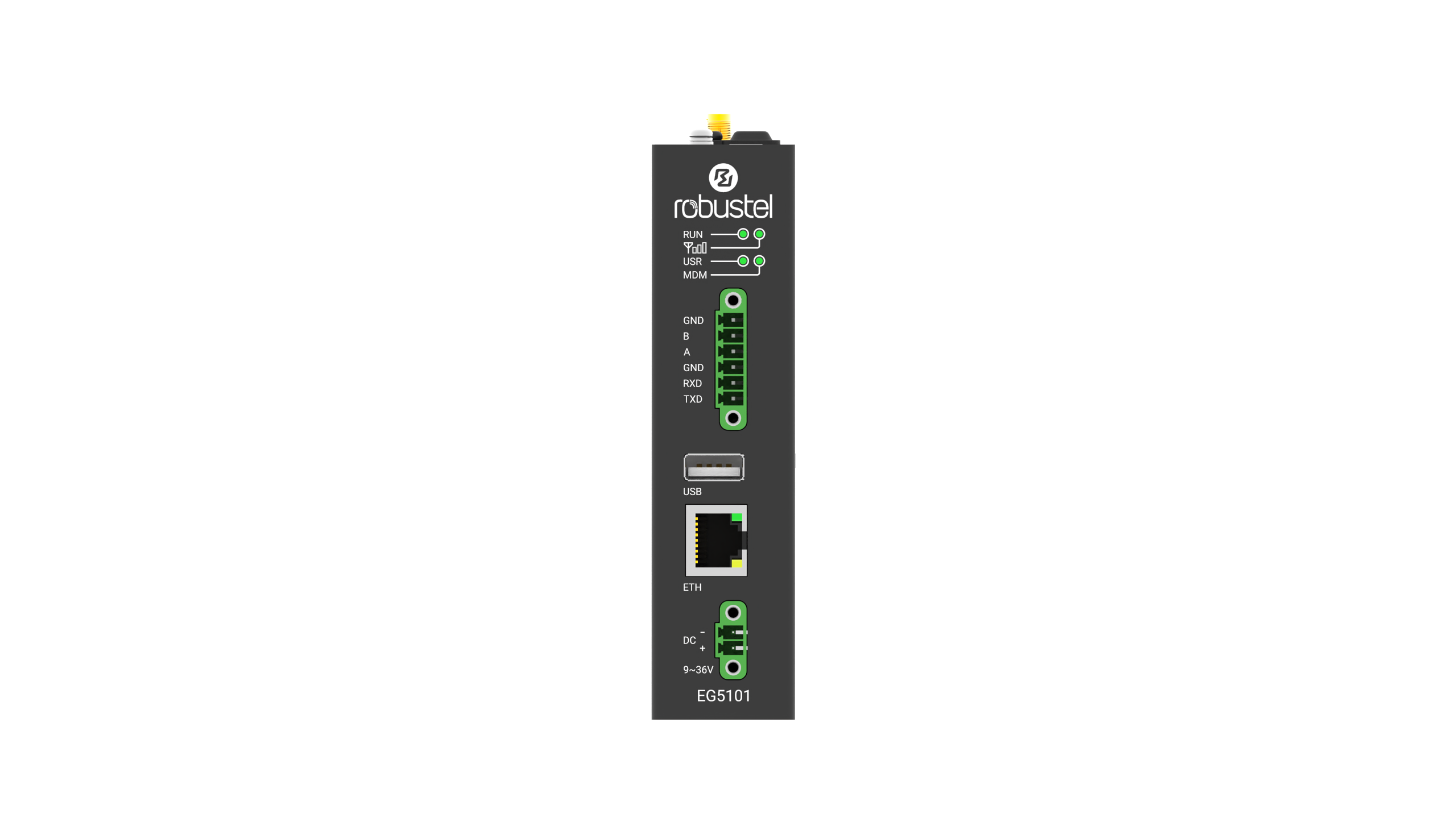

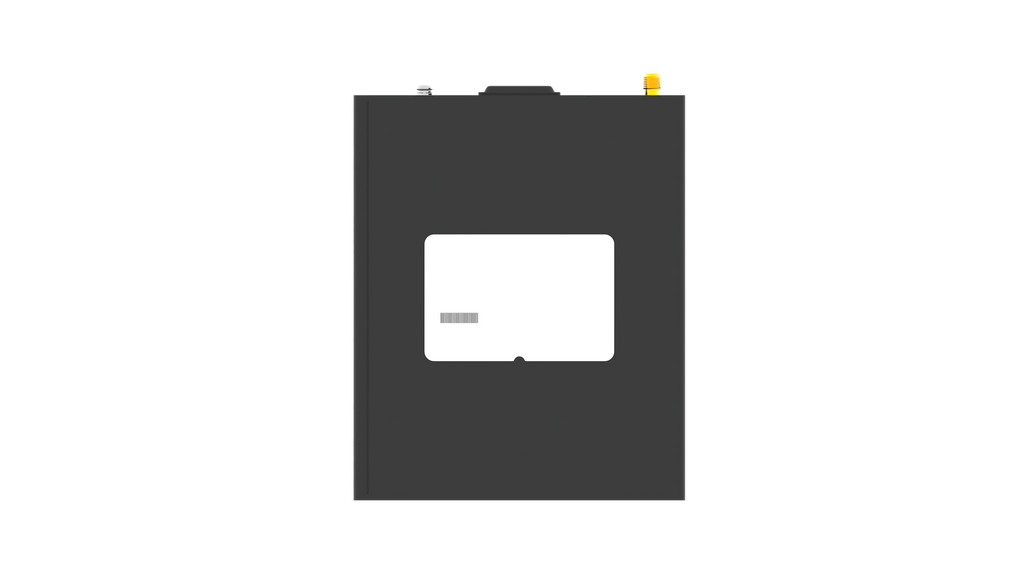

Robustel EG5101-B-4E-A31EU (I.MX6 ULL, 1GB/ 8GB Flash, 4G LTE)
EG5101-B-4E-A31EU
EG5101 Industrial 4G Edge Computing Gateway
The Robustel EG5101 is a new generation of industrial gateways for Edge Computing, supporting 4G CAT1 mobile networks for "backhaul" and featuring a complete Debian 11 (bullseye)-based operating system capable of supporting thousands of existing or new ARMv8-based applications (compatible with Raspberry Pi).
Robustel’s EG5101 is a new industrial Edge Computing gateway supporting a 4G Cat 1 network for cellular backhaul, with a fully fledged Debian 11(bullseye)-based operating system capable of supporting thousands of existing or new ARMv7-based applications (Raspberry Pi compatible).
EG5101 supports Docker for easy application deployment and benefits from ‘RobustOS Pro’ – Robustel’s latest router OS, with enhanced cybersecurity, an advanced GUI and a wide range of software features, including VPNs, Smart Roaming, SMS remote control and more. With a 792 MHz i.MX 6ULL CPU, EG5101 can be used as a combination of cellular router + embedded PC for IoT applications.
RCMS is Robustel’s free router monitoring service and is fully compatible with the EG5101. It allows customers to view an overview of their routers’ locations quickly and easily on a map.
Features such as data usage, signal strength, current network and much more can be viewed on a per-router basis. Over-the-air updates are supported for firmware, router configuration and applications, providing essential protection if anything is not quite right during deployment.
You can try Robustel’s free router management platform by signing up here: rcms-cloud.robustel.net
- Highly stable 4G Cat 1 network connectivity
- High-performance compute engine with 8 GB eMMCFlash for running complex customer applications
- Docker containerization supported
- 1 x RS232, 1 x RS485 for connection to industrial/legacy devices
- Dual SIM card slots for redundant communications
- Wide operating temperature range for industrial applications
- Supports C, C++, Java, Python, Node.js etc. for users to develop their own applications
- More than 50,000 applications from the Debian repository are currently available
- Wireguard/IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN+ and more VPN options
- Supports RCMS – Robustel’s router/gateway management platform for effective management of large device estates
| Hardware System | |
| CPU | i.MX 6ULL, 792 MHz |
| RAM | 512MB DDR3/1G DDR3 |
| Flash | 8 GB eMMC |
| Cellular interface | |
| Number of antennas | 1 |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
| Ethernet Interface | |
| Ports | 1 xRJ45, 10/100 Mbps |
| Magnetic isolation | 1 KV |
| Serial Interface | |
| Type | 1 x RS232, 1 x RS485 |
| Connector | 6-pin 3.5 mm terminal block with lock |
| ESD protection | 8 KV Air, 4 KV Contact |
| Baud rate | 300 bps to 115200 bps |
| Signal | RS232: TXD, RXD, GND RS485: Data+ (A), Data- (B), GND |
| Others | |
| Reset button | 1 x RST |
| USB | 1 x USB 2.0 (host), Type A, 5V, 500mA |
| LED indicators | 1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI |
| Watchdog | External |
| Software (Basic features of RobustOS Pro) | |
| Network protocols
| PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, HTTPs, DNS, ARP, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE |
| Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote management | Web, CLI, SMS |
| Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU Gateway |
| Others | Smart Reboot, Data Guard, Smart Roaming |
| SDK | |
| Operating System | RobustOS Pro (Based on Debian 11 (bullseye)) |
| Supported programming
language | C, C++, Python, Java, Node.js etc.
(for users to develop their own applications) |
| Debian repository available | |
| Flash available for SDK | 6 GB |
| RAM available for SDK | 256MB/768 MB |
| App Center (Available Apps for RobustOS Pro) | |
| Apps* | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic route, Modbus Master, etc. |
| *Available on request. For more Apps, please visit www.robustel.com. | |
| Power Supply and Consumption | |
| Connector | 2-pin 3.5 mm terminal block with lock |
| Input voltage | 9 ~ 36V DC |
| Power consumption | Idle: 56mA @ 12V |
| Data link: 431mA(peak) @ 12V | |
| Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Aluminum, 374g |
| Dimensions | 134.8 * 105 * 32 mm |
| Installation | Desktop installation, wall mounting and 35 mm DIN rail mounting |
| Operating temperature | -20 ~ +70 °C |
| Storage temperature | -40 ~ +85 °C |
| Relative humidity | 5 ~ 95% RH |
| Regulatory and Type Approvals (*In progress) | |
| Environmental | RoHS2.0* |
| EMI | EN 55032 Conducted Emission class B EN 55032 Radiated Emission class B |
| EMS | IEC 61000-4-2(ESD) Contact Level 2, Air Level 3
IEC 61000-4-3 (RS) Level 2 |
Model
| Model | PN | Cellular | RAM | Enclosure | Frequency Bands* | Country/
Region | Certification
(*In progress) |
| EEG5101-A-4E-A31EU | B130001 | 4G | 512MB DDR3 | √ | 4G:
LTE FDD: B1/B3/B5/B7/B8/B20/B28
| EU
ANZ | CE*
RCM* CB*
|
| EG5101-B-4E-A31EU | B130002 | 1GB DDR3 | √ | ||||
| EG5101P-A-4E-A31EU | B130003 | 512MB DDR3 | – | ||||
| EG5101P-B-4E-A31EU | B130004 | 1GB DDR3 | – |
