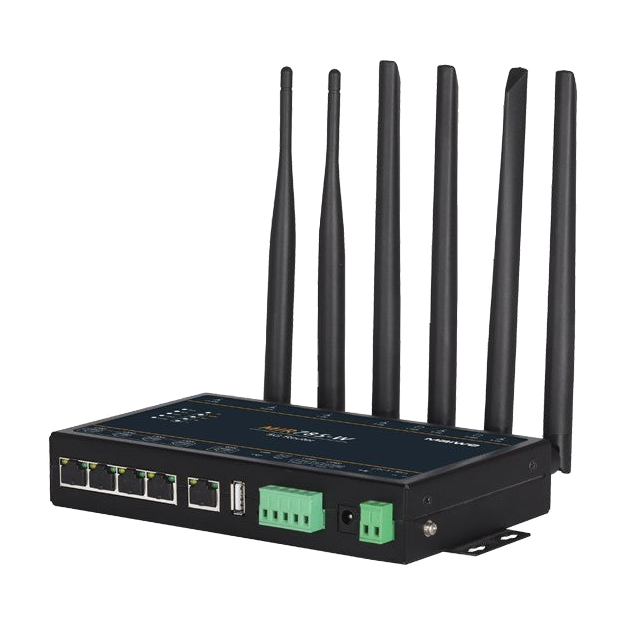

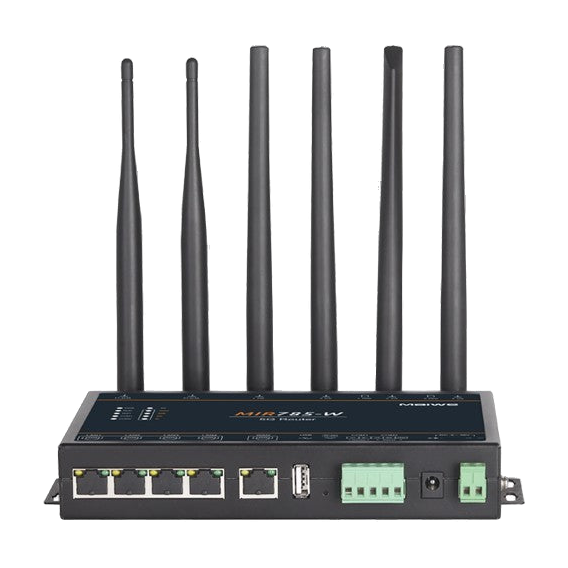

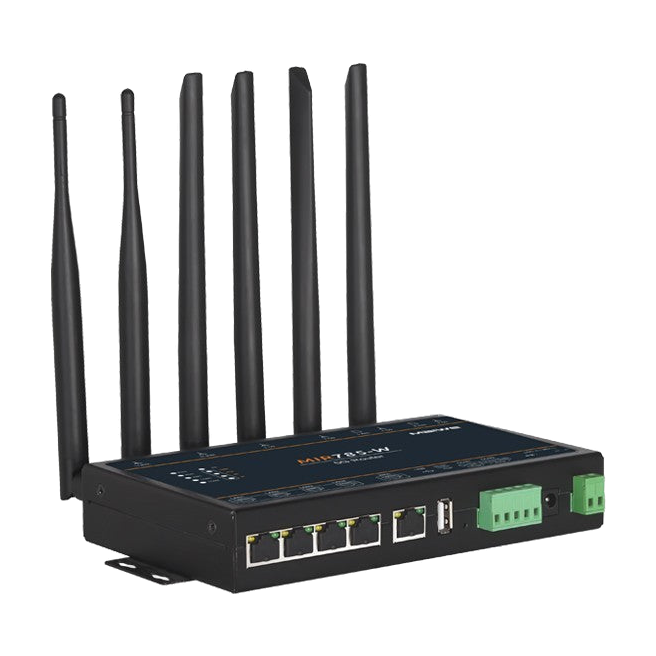

Router 5G MIR785-W (Wi-Fi 6, 4* GLAN, RS-232, RS-485)
MIR785-W
Dual-band Gigabit Wi-Fi 6 industrial 5G router
- Supports 4 wired LAN ports and 1 wired WAN port, all supporting 10/100/1000Mbps speeds
- Supports 2.4GHz and 5.8GHz dual-band Wi-Fi, with both bands supporting the next-generation Wi-Fi 6 standard
- Supports OFDMA+MU-MIMO technology and NSA and SA dual-mode 5G networks, with backward compatibility with 4G and 3G
- Supports a 5G communication module with an M.2 interface, allowing customers to replace it easily
- Supports transparent data transmission from two RS485 and RS232 serial ports to the network
The MIR785-W is a dual-band Gigabit WiFi 6 industrial 5G router newly launched by MAIWE. Its concurrent dual-band speed reaches up to 1775Mbps, providing faster wireless performance and a longer transmission range, and it supports NSA and SA dual-mode 5G networks. It supports one RS485 interface, one RS232 interface and 5 Gigabit Ethernet interfaces, enabling mutual transparent transmission between RS485 and RS232, cellular data and Ethernet. It provides a convenient, fast networking solution for user equipment, making it an excellent choice for industrial networks.
Features and Benefits
-Supports 4 wired LAN ports and 1 wired WAN port, all supporting 10/100/1000Mbps speeds;
-Supports 2.4GHz and 5.8GHz dual-band Wi-Fi, with both bands supporting the next-generation Wi-Fi 6 standard;
-Supports OFDMA+MU-MIMO technology and NSA and SA dual-mode 5G networks, with backward compatibility with 4G and 3G;
-Supports a 5G communication module with an M.2 interface, allowing customers to replace it easily;
-Supports transparent data transmission from two RS485 and RS232 serial ports to the network;
-Supports next-generation Peanut Shell intranet penetration and DDNS dynamic domain name resolution;
-Supports multiple VPN virtual private network protocols (PPTP, L2TP, GRE, OpenVPN, IPSec) and VPN encryption;
-Uses the openwrt open architecture to support secondary development by users;
-Supports python, provides a USB2.0 interface for connecting external USB storage and supports Edge computing.
| Product model | MIR785-W |
| Power | |
| Operating voltage | DC9-36V |
| Operating current | 878mA@12v |
| Network port | |
| LAN | 4 x 10/100/1000Mbps auto-negotiating Ethernet ports, with MDI/MDIX support and automatic switching between straight-through and crossover connections |
| WAN | 1 x 10/100/1000Mbps auto-negotiating Ethernet port, with MDI/MDIX support and automatic switching between straight-through and crossover connections, switchable between WAN/LAN |
| Isolation protection | 1.5KV |
| Serial port | |
| No. | 1*RS-232+1*RS-485 |
| Rate | 300~230400bps |
| Antenna | |
| Number of antennas | 4 |
| Interface | SMA interface (outer thread, inner hole) |
| SIM | |
| SIM card | Voltage:3V/1.8V; |
| Supported number | Supports dual SIM cards in single-standby mode |
| Wi-Fi | |
| Wireless standard | Wi-Fi6, the 6th generation of wireless networking technology |
| 2.4GHz 802.11b/g/n/ax | |
| 5.8GHz 802.11a/n/ac/ax | |
| Antenna | 2 |
| Antenna interface | SMA interface (outer thread, inner hole) |
| Wi-Fi rate | 2.4GHz:574Mbps, 5GHz:1201Mbps |
| Wireless | |
| Network standard | Mobile/Unicom/Telecom 5G, 4G and 3G networks |
| Operating frequency | 5G NR NSA :n41/n77/n78/n79 |
| 5G NR SA*:n1/n2/n3/n5/n7/n8/ n12/n20/ | |
| n25/n28/n38/n40/n41/n48/n66/ | |
| n71/n77/n78/n79 | |
| LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/ | |
| B14/B17/B18/B19/B20/B25/B26/ | |
| B28/B29/B30/B32/B66/B71 | |
| LTE-TDD :B34/B38/39/B40/B41/B42/B43/ | |
| B48LAA B46 | |
| WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 | |
| MIMO DL: 4 x4, UL: 2 x2 | |
| GNSS: GPS/GLONASS/BeiDou | |
| (Compass)/Galileo | |
| Transmission rate | 5G SA Sub-6 :DL 2.1 Gbps/UL 900 Mbps |
| 5G NSA Sub-6 :DL 2.5 Gbps/UL 650 Mbps | |
| LTE:DL 1.0 Gbps/UL 200 Mbps | |
| WCDMA:DL 42 Mbps/UL 5.76 Mbps | |
| Other specifications | |
| Dimensions | 185.0×112.0×33.0mm(L*W*H) |
| Operating temperature | -40℃~75℃ |
| Storage temperature | -40～85℃/5%～95% RH |
| Software | |
| User configuration | Web |
| Functions | *DNS domain name resolution |
| *Wi-Fi supports WPA/WPA2, WPA3 and other encryption methods | |
| *Supports operator-dedicated APN/VPDN network cards | |
| *Port mapping function | |
| *Traffic rate-limiting function with QoS support | |
| *DHCP, static routing, PPPoE and static IP functionality | |
| *Supports transparent serial-to-network transmission: TCP Server/TCP Client/UDP Server/UDP Client and other transmission protocols | |
| *Network diagnostics: supports Ping, Traceroute and Tcpdump (network packet capture tool), etc. | |
| *Supports local system logging, remote logging, scheduled saving of local logs, etc. | |
| *Supports upgrades through the Web interface, etc. | |
| *Supports simultaneous operation over multiple wired and wireless networks, link backup, dual-mode backup, wired and wireless backup, etc. | |
| *Watchdog function, automatic detection of network disconnection, automatic restart after a dial-up failure and one-key restoration of the factory-default configuration | |
| *Supports immediate and scheduled restarts | |
| *Supports transparent serial-to-network transmission: TCP Server/TCP Client/UDP Server/UDP Client and other transmission protocols | |
| *Supports the new-generation Peanut Shell intranet penetration function | |
| *Supports dynamic DNS domain-name mapping | |
| *Supports VPN Client (PPTP/L2TP/OPENVPN/GRE/IPSEC) | |
| *Supports VPN Server (PPTP/L2TP/IPSEC) | |
| *Supports the SNMP protocol and a network management platform | |
| *Supports the LLDP link discovery protocol | |
| *Supports GPS and Beidou positioning | |
