Router LTE UR32-L04EU (4G, 2*GLAN, RS232)
Price excludes VAT
185.00€
Sale price
Price excludes VAT
185.00€
Regular price
Total with VAT (23%): 227.55€
Shipping calculated at checkout.
UR32-L04EU

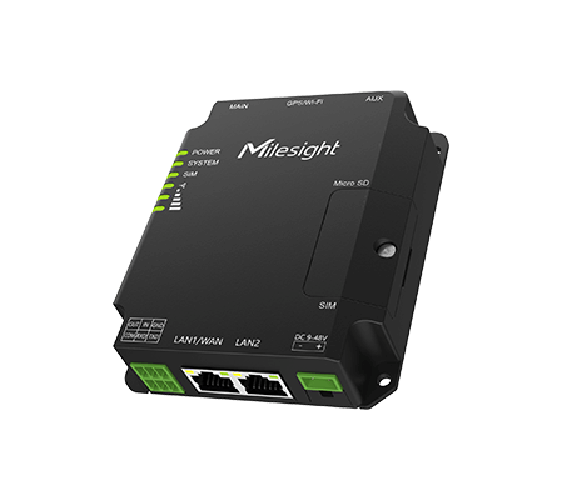

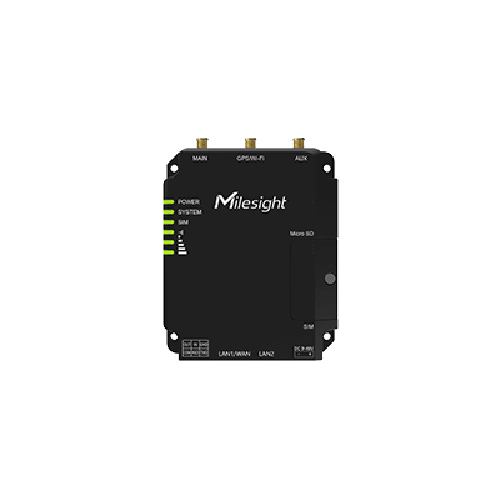

Milesight UR32 4G Industrial Cellular Router
With its new look and compact size, the UR32 is specifically designed to be low-cost and highly efficient. Its pocket-sized design allows it to fit easily into small cabinets or machines where space is extremely limited.
Equipped with 2 Fast Ethernet ports and 1 RS232 interface, the UR32 can connect to a wide range of field assets. With a built-in LTE CAT4 modem, it supports dual SIM backup for robust and reliable cellular communication. Its rugged enclosure and wide operating temperature range (-40°C to +70°C) also make it ideally suited to most M2M applications in harsh environments.
- Compact and rugged design
- Optional PoE; Wi-Fi/GPS (alternative)
- Supports Modbus RTU/TCP
- 1 digital input and 1 digital output
- OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE
Videos
| Capabilities | CPU | 528 MHz, 32-bit ARM Cortex-A7 | ||||
| Flash | 128 MB | |||||
| Memory | 128 MB DDR3 | |||||
| Built-in | Watchdog | |||||
| GPS | GPS + GLONASS | |||||
| Micro SD | Supports Micro SD cards up to 128 GB | |||||
| Interfaces | SIM slots | 2 | ||||
| Ethernet ports | 2 × 10/100 Mbps | |||||
| Serial port | 1 x RS232 (optional RS485) | |||||
| DI/DO | 1 × DI + 1 × DO | |||||
| Antenna connectors | 2 x cellular connectors 1 x GPS/Wi-Fi connector | |||||
| Maintenance | Management | Web, CLI, SMS, Watchdog, on-demand dial-up | ||||
| Multilevel authorization | Multiple levels of user authorization | |||||
| Network | Network protocols | IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH | ||||
| AAA | RADIUS, TACACS+, LDAP, local authentication | |||||
| Firewall | Anti-DDoS, SPI, ACL, DMZ, port mapping, MAC binding | |||||
| Wi-Fi (optional) | IEEE 802.11b/g/n | |||||
| Serial port | Transparent (TCP client/server, UDP), Modbus Gateway (Modbus RTU to Modbus TCP), Modbus Master | |||||
| Reliability | VRRP, WAN failover, Dual SIM backup | |||||
| VPN | OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE | |||||
| Hardware | Power input | 9 ~ 48 VDC | ||||
| Power output (optional) | 2 × 802.3af/at PoE PSE | |||||
| Ingress protection | IP30 | |||||
| Housing & Weight | Metal, 271g (0.60 lb) | |||||
| Dimensions | 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in) | |||||
| Mounting | Desktop, wall or DIN rail mounting | |||||
| Other | Operating temperature | -40°C to +70°C (-40℉ to +158℉); reduced cellular performance above 60°C | ||||
| Storage temperature | -40°C to +85°C (-40℉ to +185℉) | |||||
| Relative humidity | 0% to 95% (non-condensing) at 25°C/77℉ | |||||
| Certifications | RoHS, CE, FCC, AT&T (UR32) | |||||
| Frequency band | E | LTE: B1/B3/B5/B7/B8/B20/B38/B40/B41 | 3G: B1/B5/B8 | GSM: B3/B8 | ||
| AF | LTE: B2/B4/B5/B12/B13/B14/B66/B71 | 3G: B2/B4/B5 | / | |||
| AU | LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40 | 3G: B1/B2/B5/B8 | GSM: B2/B3/B5/B8 | |||
