Sku: UR32-L04EU-P-W
Product Type: Routers LTE
Vendor: Milesigh

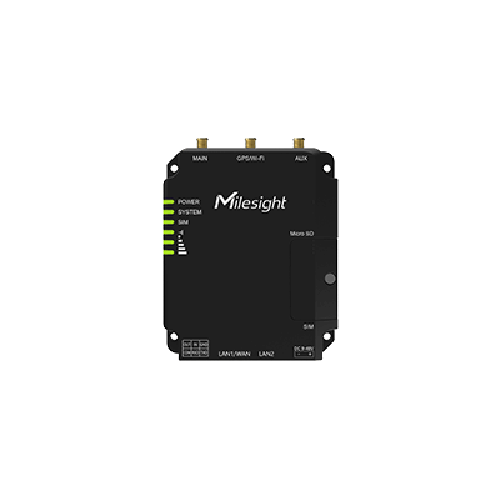

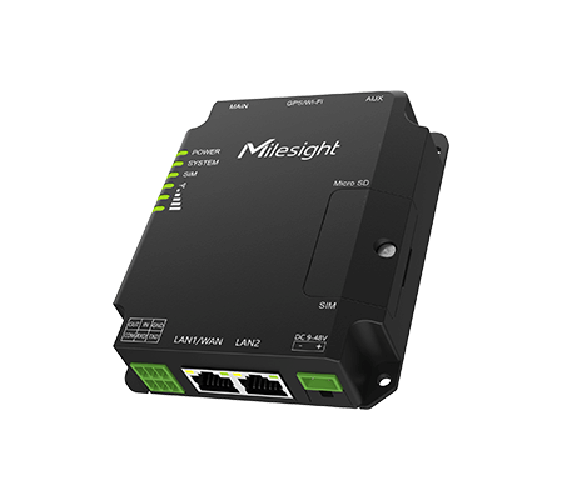

Milesight UR32 4G Industrial Cellular Router

With a brand new look and compact size, UR32 is specially designed to be LOW-COST and HIGHLY-EFFICIENT. The pocket-sized design allows it to easily fit into small cabinets or machines when space is extremely limited.

Equipped with 2 fast Ethernet ports and 1 RS232 interface, UR32 can connect with diverse field assets. With a built-in LTE CAT4 modem, it supports dual SIM backup for robust, reliable cellular communication. Also, its rugged enclosure and wide operating temperature range (-40°C to +70°C) make it perfectly suit most M2M applications in the harsh environment.

  • Compact and rugged design
  • PoE is optional; Wi-Fi/GPS (alternative)
  • Supports Modbus RTU/TCP
  • 1 digital input and 1 digital output
Capabilities CPU 528 MHz, 32-bit ARM Cortex-A7
Flash 128 MB
Memory 128 MB DDR3
Built-in Watchdog
Micro SD Supports micro SD card up to 128 GB
Interfaces SIM Slots 2
Ethernet Ports 2 × 10/100 Mbps
Serial Port 1 x RS232 (optional RS485)
DI/DO 1 × DI + 1 × DO
Antenna Connectors
2 x Cellular Connectors
1 x GPS/Wi-Fi Connectors
Maintenance Management Web, CLI, SMS, Watchdog, On-demand Dial Up
Multilevel Authority
Multiple Levels of User Authority
Network Network Protocols IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
RADIUS, TACACS+, LDAP, Local Authentication
Firewall Anti-DDoS, SPI, ACL, DMZ, Port Mapping, MAC Binding
Wi-Fi (Optional)
IEEE 802.11b/g/n
Serial Port Transparent (TCP Client/Server, UDP),
Modbus Gateway (Modbus RTU to Modbus TCP), Modbus Master
Reliability VRRP, WAN Fail-over, Dual SIM Backup
Hardware Power Input
9 ~ 48 VDC
Power Output (Optional)
2 × 802.3af/at PoE PSE
Ingress Protection
Housing & Weight
Metal, 271g (0.60 lb)
108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
Desktop, Wall or DIN Rail Mounting
Others Operating Temperature
-40°C to +70°C (-40℉ to +158℉) Reduced cellular performance above 60°C
Storage Temperature
-40°C to +85°C (-40℉ to +185℉)
Relative Humidity
0% to 95% (non-condensing) at 25°C/77℉
RoHS, CE, FCC, AT&T (UR32)
Frequency Band

E LTE: B1/B3/B5/B7/B8/B20/B38/B40/B41 3G: B1/B5/B8 GSM: B3/B8
AF LTE: B2/B4/B5/B12/B13/B14/B66/B71 3G: B2/B4/B5 /
AU LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40 3G: B1/B2/B5/B8 GSM: B2/B3/B5/B8
