Router LTE UR32L-L04EU-P (4G, 2* GLAN, PoE)
Price excludes VAT
168.00€
Sale price
Price excludes VAT
168.00€
Regular price
Total with VAT (23%): 206.64€
Shipping calculated at checkout.
UR32L-L04EU

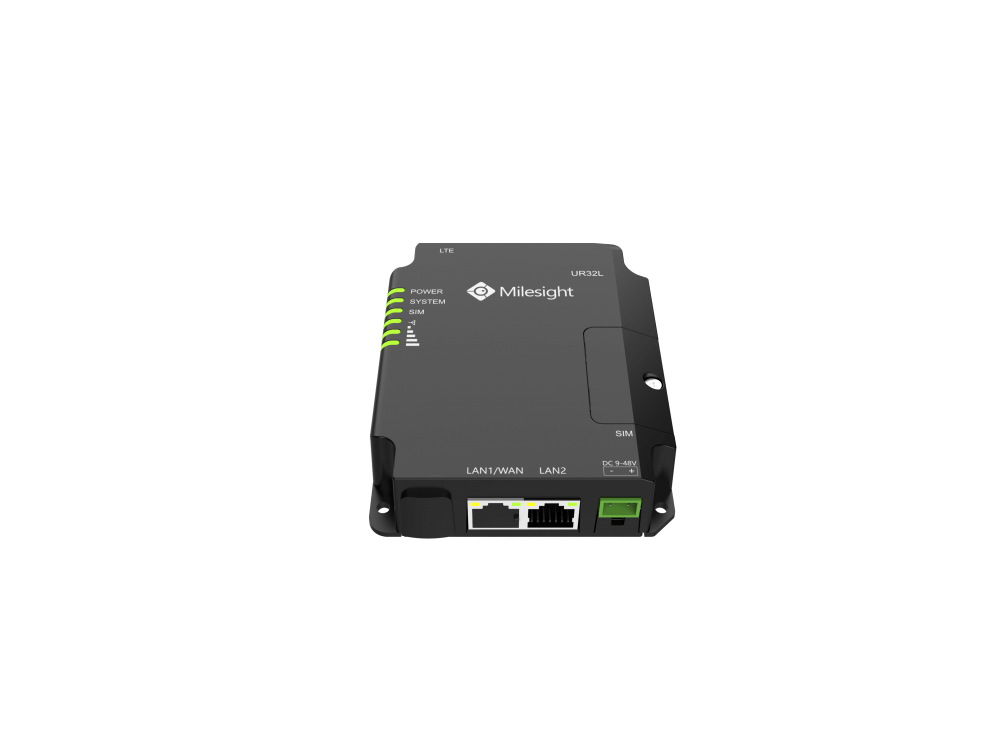

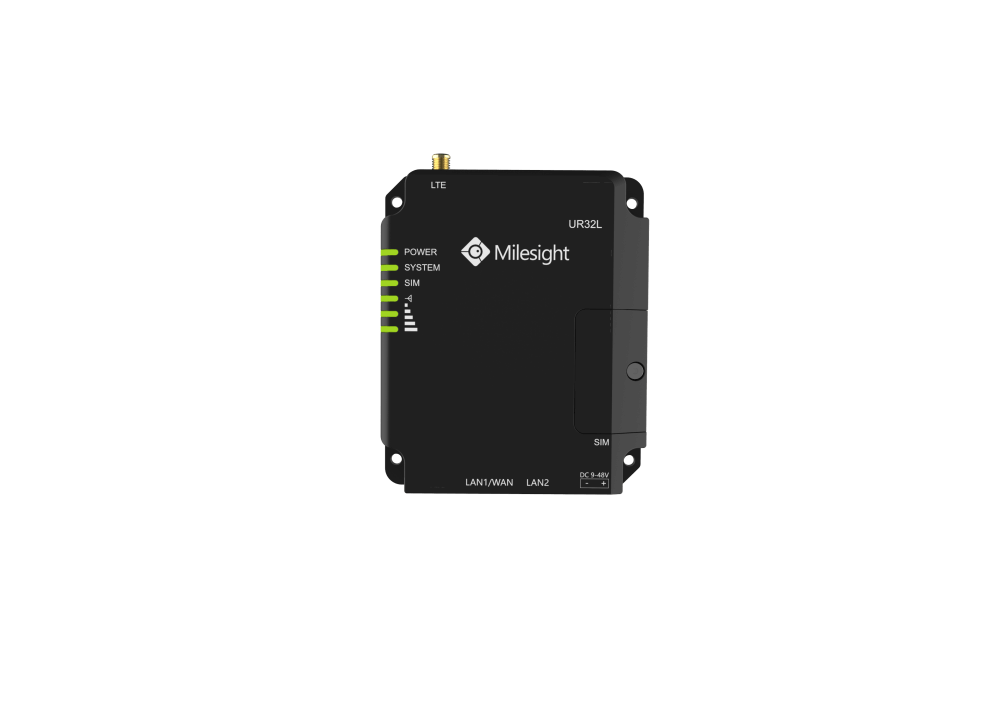

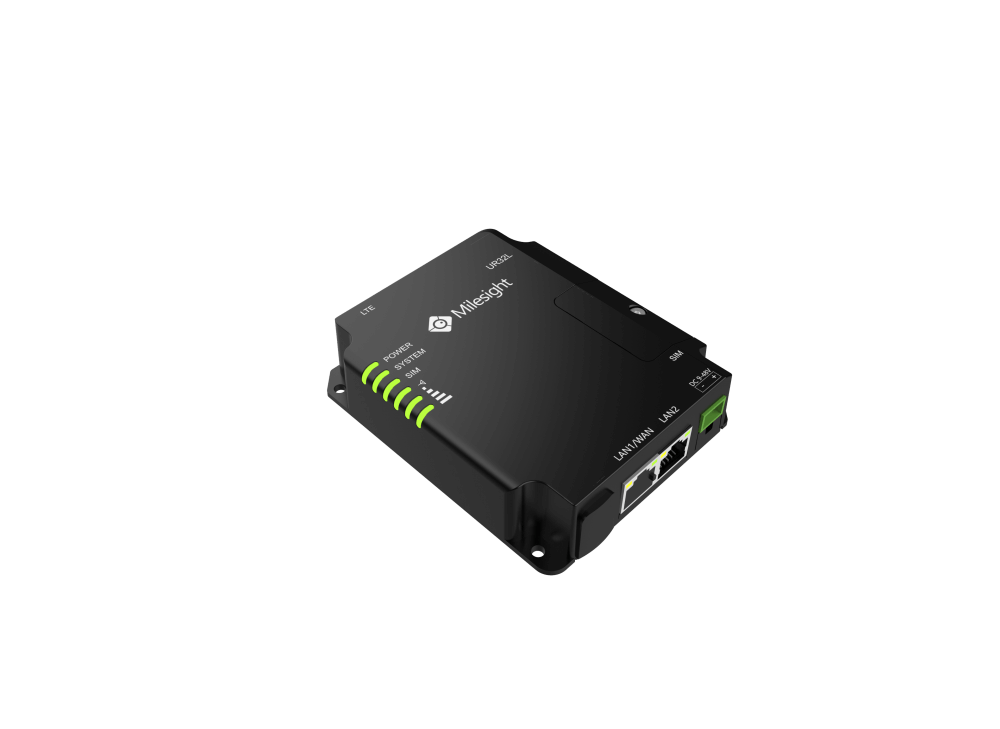

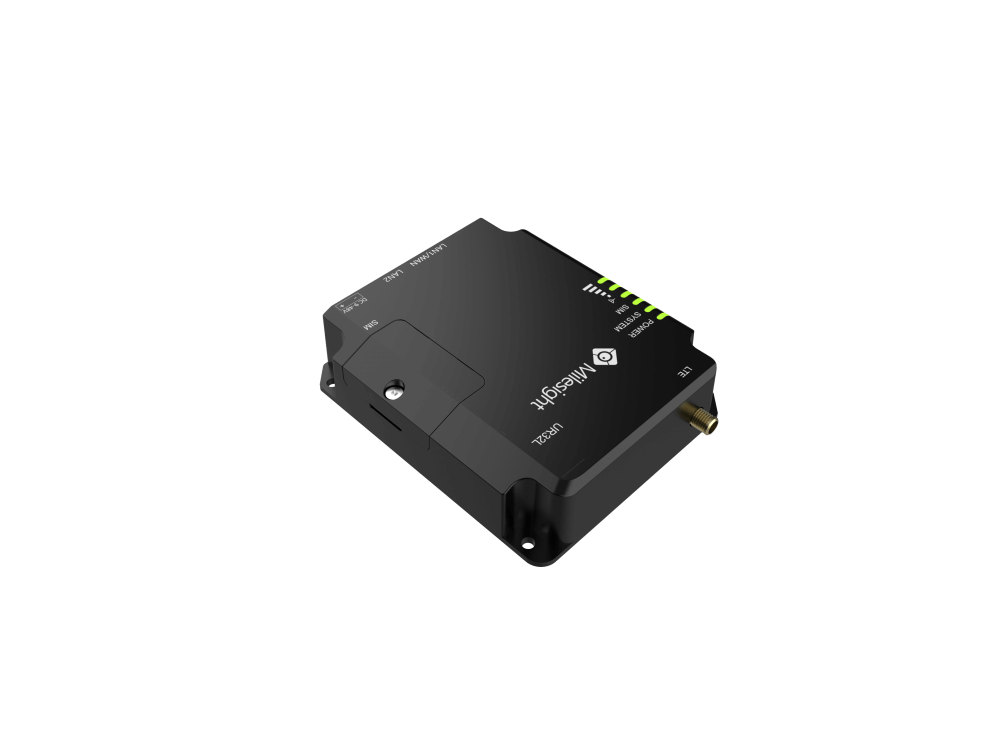

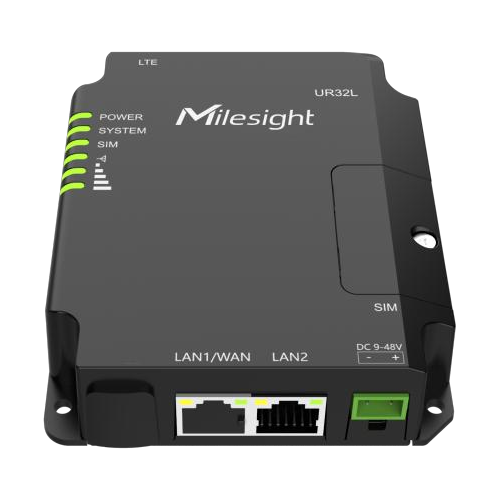

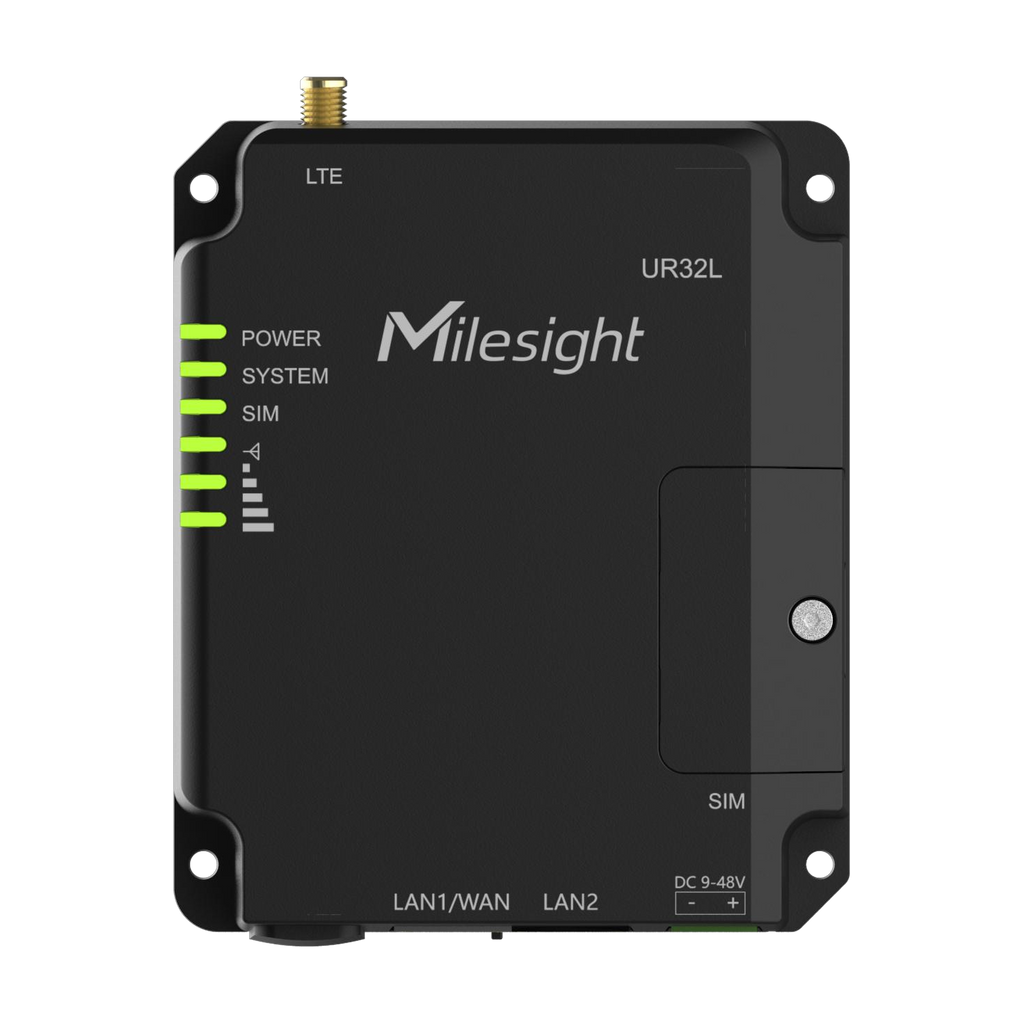

Milesight UR32L 4G Lite Industrial Cellular Router
The UR32L is a cost-effective industrial cellular router with embedded intelligent features designed for a wide range of M2M/IoT applications. Support for global WCDMA and 4G LTE carriers makes this drop-in connectivity solution highly effective in helping operators maximize uptime. The UR32L also has 2 Fast Ethernet ports, providing users with uninterrupted Internet access.
By integrating watchdog and multi-link failover detection, the UR32L provides stable communications. Combined with DeviceHub and MilesightVPN, the R32L enables easy and efficient network management. Easy deployment and comprehensive remote device management make the UR32L versatile for most IoT/M2M applications.
Heavy-Duty Cast Aluminum Casing
- Industrial-Grade Design
- -40°C to 70°C Operating Temperature
- Compact Size for Installation in Limited Spaces
Global 4G LTE Network
- 150 Mbps Downlink & 50 Mbps Uplink
- Global 4G/3G Frequency Band Compatibility
Advanced Routing Features
- Stateful Firewall VPN
- VPN (OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE)
- SNMP v1/v2c/v3
- ...
DeviceHub
Remote Management Platform
- Remote Configuration
- Bulk Firmware Upgrade
- Location Tracking
- Device Status Monitoring
| Hardware System | CPU | ARM Cortex-A7，528 MHz |
| Memory | 128 MB DDR3 RAM and 128MB Flash | |
| Cellular Interface | Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| SIM Slots | 1（Mini SIM-2FF） | |
| Ethernet Interface | Number | 1 × WAN + 1 × LAN or 2 × LAN |
| Property | 1（Mini SIM-2FF） | |
| Mode | Full or half-duplex (Auto-Sensing) | |
| PoE | 2 × 802.3 af/at PoE PSE on LAN Ports (Optional) | |
| Software | Network Protocols | IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH, etc. |
| VPN | DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE | |
| Security | Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering (IP&Domain), IP Passthrough | |
| Management | Web, CLI, SMS, On-demand dial-up, SNMP v1/v2/v3, DeviceHub | |
| AAA | Radius, Tacacs+, LDAP, Local Authentication | |
| Multilevel Authority | Multiple Levels of User Authority | |
| Reliability | VRRP, WAN Failover | |
| Power Supply | Power Connector | 2-pin 5.08 mm Terminal Block |
| Input Voltage | 9-48 VDC, with Surge Protection and Reverse Polarity Protection | |
| Physical Characteristics | Ingress Protection | IP30 |
| Housing | Metal | |
| Dimensions | 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in) | |
| Installation | Desktop, wall or DIN rail mounting | |
| Environmental | Operating Temperature | -40°C to +70°C (-40℉ to +158℉), with reduced cellular performance |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) | |
| Ethernet Isolation | 1.5 kV RMS | |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
