Switch ATEX LMX-1202G-SFP (10*10/100/1000Tx + 2*100/1000 SFP)

LMX-1202G-SFP

LMX-1202G-SFP-T (EoT: -40~75C)

12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, with 10*10/100/1000Tx + 2*100/1000 SFP

Antaira’s LMX-1202G-SFP is a 12-port industrial Gigabit managed Ethernet switch equipped with 10*10/100/1000Tx Fast Ethernet ports and two dual-rate (100/1000X) SFP slots. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Layer 2 network management software. It supports Jumbo Frame and high bandwidth for data transmission and provides sufficient port capacity for any Edge connectivity solution.

The LMX-1202G-SFP has a compact form-factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C or -40°C to 75°C (LMX-1202G-SFP-T module). It also provides high EFT and ESD protection for industrial networking applications in factory automation, ITS, power/utility, water and wastewater, or any other outdoor or harsh environment.

• ATEX Certificate
• Supports 10*10/100/1000Tx Fast Ethernet Ports and 2*100/1000 SFP Slots
• Network redundancy support: RSTP/MSTP and G.8032 ERPS (recovery time <50ms)
• Configuration: Web Console, Telnet, and CLI Commands
• Supports IGMP v1/v2, up to 256 groups
• Supports QoS (IEEE802.1p) and CoS/ToS
• Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
• System Warning Settings for Automatic E-mail Notifications
• Redundant Power Input Design – 12~48VDC
• Housing: Metal, IP 30 Rated; DIN-Rail and Wall-Mount Support
• Standard Operating Temperature: -10°C to 70°C / EOT -40°C to 75°C
• 5-Year Warranty

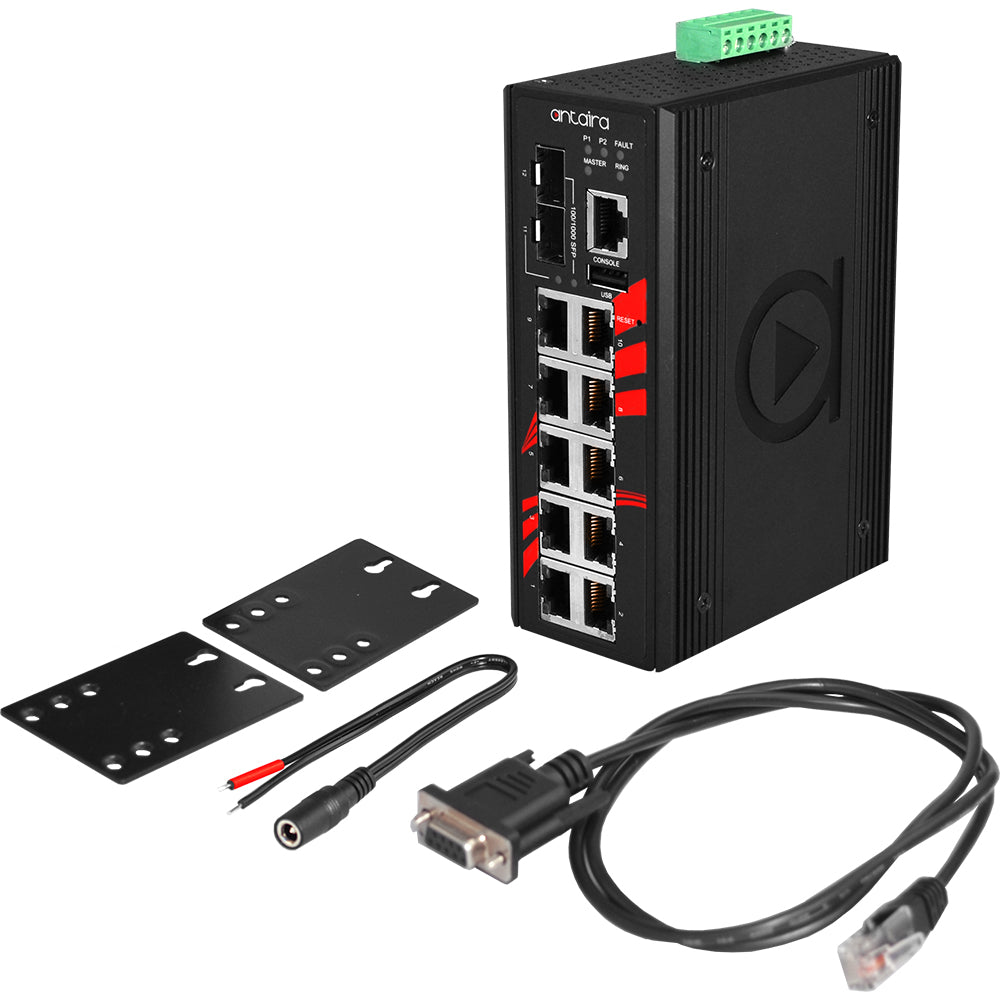

Included

• 1 - LMX-1202G-SFP
• 1 - DC Cable - 18 AWG & DC Jack 5.5 x 2.1mm
• 1 - RJ45 to DB9 Serial Console Cable
• 2 - Wall-mounting brackets and screws
