Switch Industrial LMX-0600-V2 (6* 10/100 BaseTx)

LMX-0600-V2

LMX-0600-V2-T (EoT: -40~75C)

6-Port Industrial Managed Ethernet Switch with 5*10/100Tx; EOT: -40~75C - Version 2 Hardware

Antaira's LMX-0600-V2 series is a 5-port industrial managed Ethernet switch equipped with 6*10/100Tx Fast Ethernet ports. This series is a fully manageable industrial Ethernet switch supplied with standard Light Layer 3 network management software and supports a user-friendly Web console interface for easy configuration.

The LMX-0500-V2 series is IP30-rated, DIN-rail mountable, and available in two models with wide operating temperature ranges: standard temperature range (STD: -10°C to 70°C) or extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for industrial networking applications in factory automation, ITS, power/utilities, water and wastewater, and other outdoor or harsh environments.

Version 2 hardware is compatible with the latest Light Layer 3 firmware, which enables static routing between VLANs.

• Supports 6*10/100Tx Fast Ethernet Ports
• Network redundancy support: RSTP and G.8032 ERPS (recovery time <50ms)
• Configuration: web console, Telnet, and CLI commands
• Supports IGMP v1/v2, up to 256 groups
• Supports QoS (IEEE802.1p) and CoS/ToS
• Supports IEEE802.1Q VLAN and SNMP v1/v2c
• System alert settings for automatic e-mail notifications
• Redundant power input design — 12~48VDC
• Housing: IP30-rated metal; DIN-rail and wall-mount support
• Operating temperature — STD: -10 to 70C / EOT: -40 to 75C
• 5-year warranty

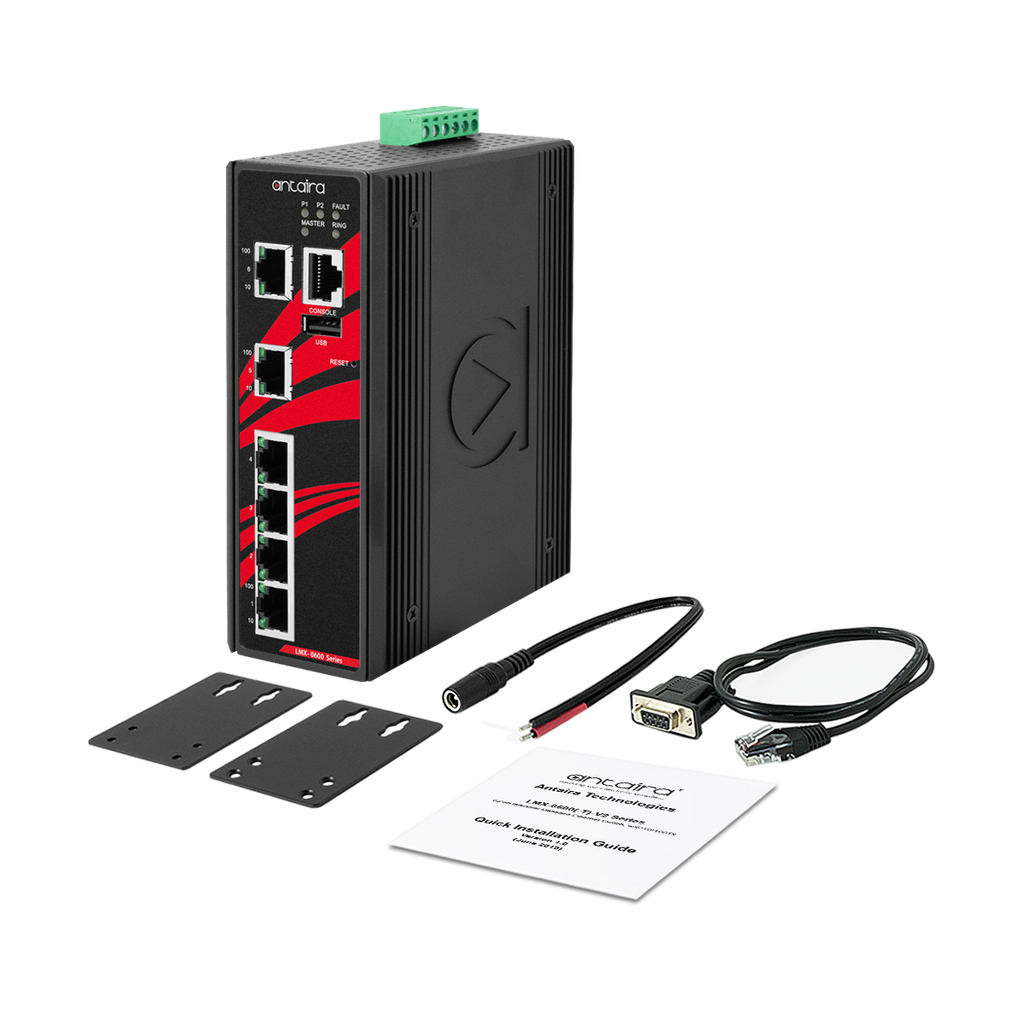

Included
