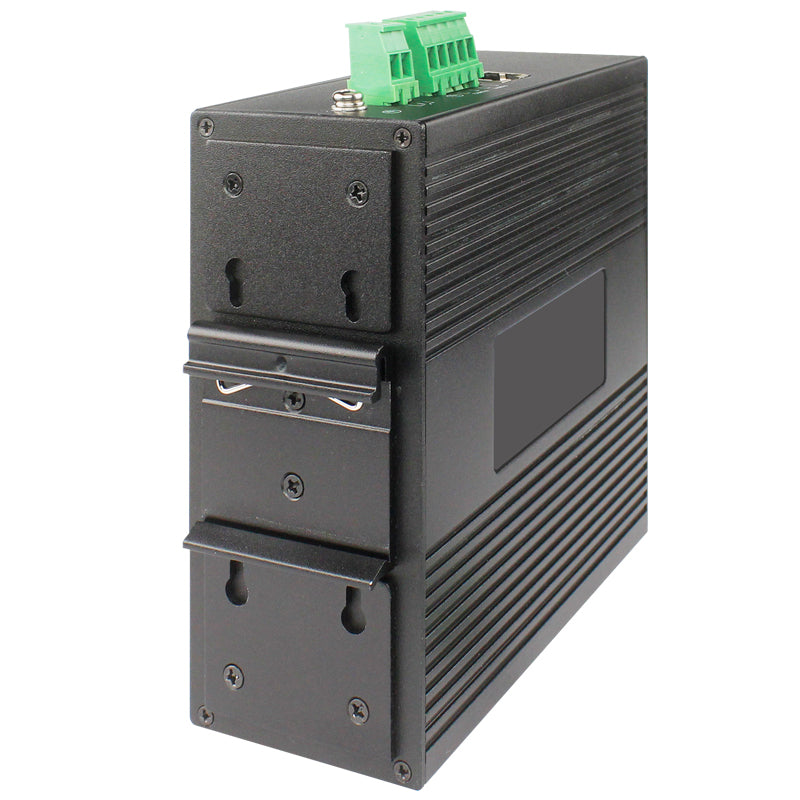

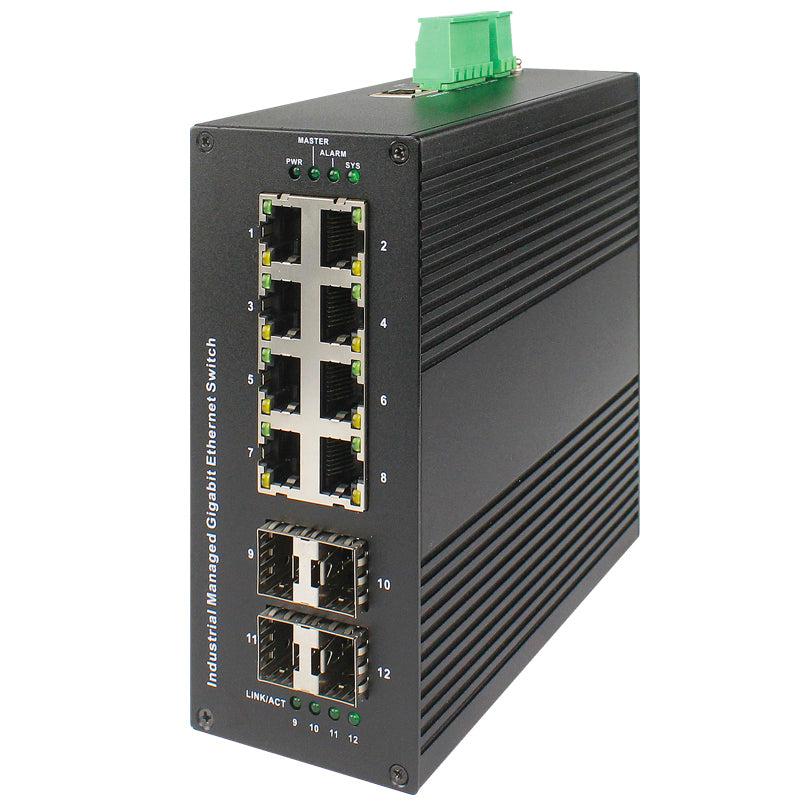

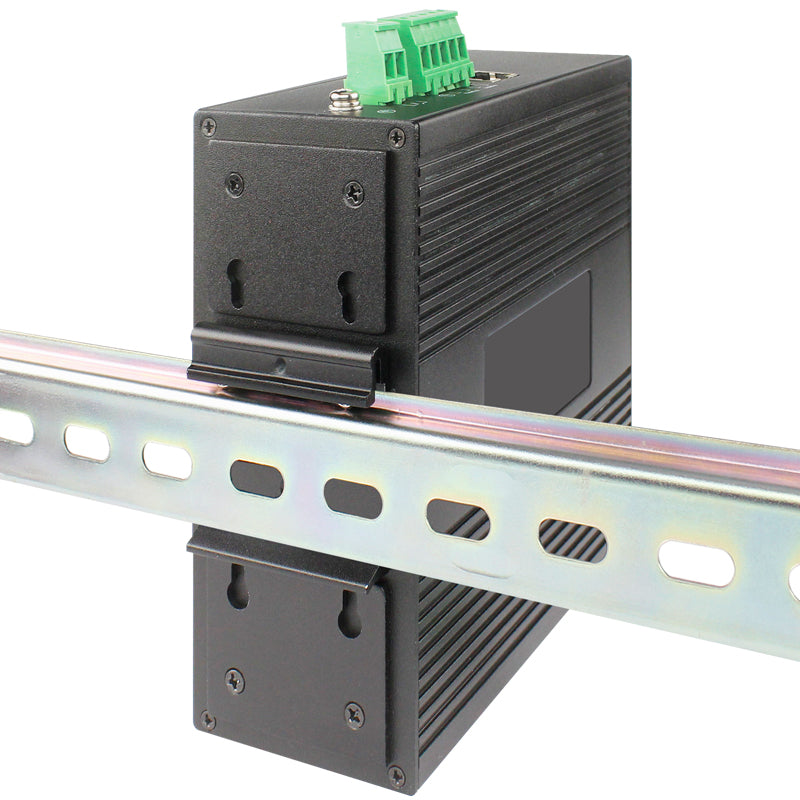

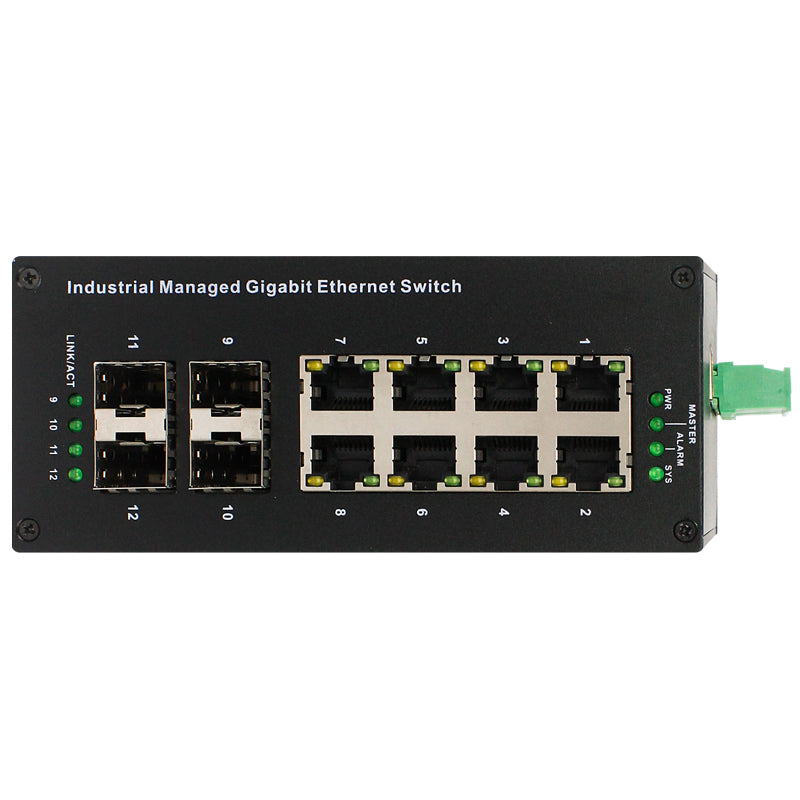

Switch JDL108GP-4F-M (8*10/100/1000Tx + 4*SFP)

Chip

– LAN chip: Broadcom

Dimensions

– 140 * 138 * 60mm

Safety

– CE, FCC, ROHS

I/O Port

– 8 * 10/100/1000BaseT(X)
– 4 * 1000BaseSFP
– Console: RS-232(RJ45)
– LED: power, port speed, port connection

Management

– WEB interface support

Standards and protocols

– IEEE802.3 10BaseT IEEE802.3u 100BaseT/ 100BaseFX,IEEE802.3z1000BaseX, IEEE802.3ab 1000BaseT(X), IEEE802.3x Flow control IEEE802.1d STP IEEE802.1w RSTP IEEE802.1s MSTP IEEE802.1p QoS IEEE802.1ad QinQ

Network Interface / Cabling Specifications

– 10BASE-T: Category 3 or higher unshielded/shielded twisted pair (≤ 100 m)
– 100BASE-TX: Category 5 or higher unshielded/shielded twisted pair (≤ 100 m)
– 1000BASE-T: Category 5 or higher unshielded/shielded twisted pair (≤ 100 m)

PoE Support

– PoE standard: IEEE802.3af, IEEE802.3at, each port provides 15.4W, maximum 30W
– Pin definition: V + (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6)
– PoE management: supports port-based PoE status display and PoE switch control

Power Input / Consumption

– 12-36VDC
– Power input reverse-connection protection: supports reverse connection
– Power interface: 5pin terminals

Operating Temp.

– – 40°C ~ +75°C

Cooling Method

– Fanless design

MTBF

– 100,000 HR

Warranty

– 3 years
