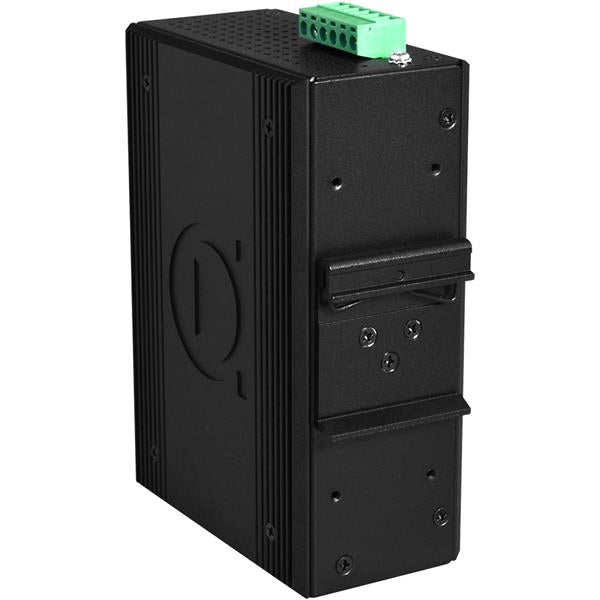

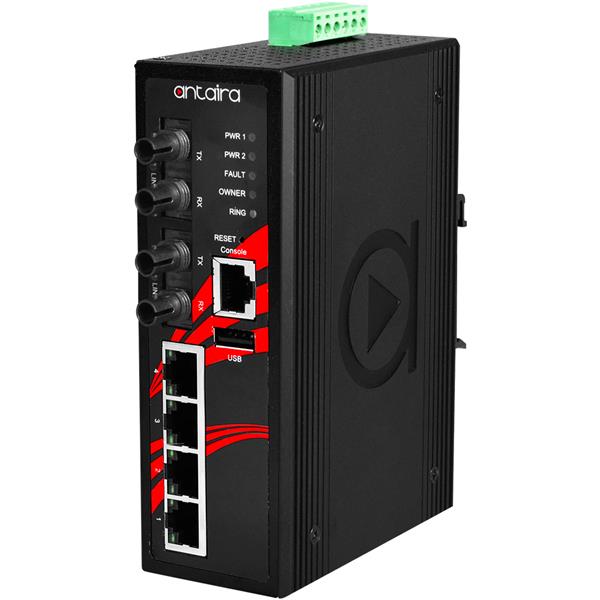

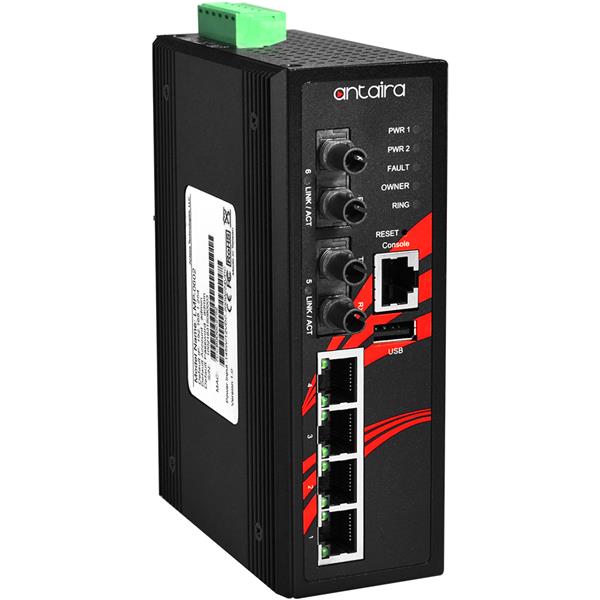

Switch LMX-0602-ST-M (4*10/100Tx + 2*100Fx ST, MM 2Km)

LMX-0602-ST-M

6-Port Industrial Managed Ethernet Switch with 4*10/100Tx + 2*100Fx Multi-mode 2Km, ST Connector

Antaira’s LMX-0602-ST-M is a 6-port industrial managed Ethernet switch equipped with 4*10/100Tx Fast Ethernet ports and 2*100Fx ST fiber connectors with Multi-mode 2Km support. It is a fully manageable Layer 2 Ethernet switch with a preloaded, user-friendly web management console. It supports ring network redundancy through the market-standard open ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol, with a network recovery time of <50ms. Its advanced network filtering and security functions, IGMP, VLAN, QoS, SNMP, port locking, RMON, ModbusTCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.

The LMX-0602-ST-M is a high-performance industrial managed Ethernet switch with a compact design, IP30 rating, DIN-rail or wall mounting, and a standard operating temperature range from -10°C to 70°C. It provides high EFT and ESD protection for industrial networking applications in power/utilities, water and wastewater, oil/gas/mining, factory automation, ITS-transportation, security surveillance, and other outdoor or harsh environments.

• 4*10/100Tx RJ45 Ports and 2*100Fx ST Fiber Ports with Multi-Mode 2Km
• Supports Network Redundancy: STP/RSTP/MSTP and G.8032 ERPS (Recovery Time <50ms)
• Supports IPv4/IPv6 and DHCP Option 66/67/82
• Supports the Modbus/TCP Protocol for Device Management and Monitoring
• Configuration: Web Console, Telnet, and CLI Commands
• IGMP v1/v2 for Multicast Traffic Filtering
• QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
• IEEE802.1Q VLAN for Easy Network Planning
• Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
• Port Lock Function for Preventing Unauthorized Access Based on MAC Address Blocking
• Automatic Exception Warnings via E-mail and Relay Output
• Supports the RMON Function for Efficient Network Monitoring
• Supports Port Mirroring for Online Diagnostics
• Standard Operating Temperature: -10°C to 70°C
• 5-Year Warranty

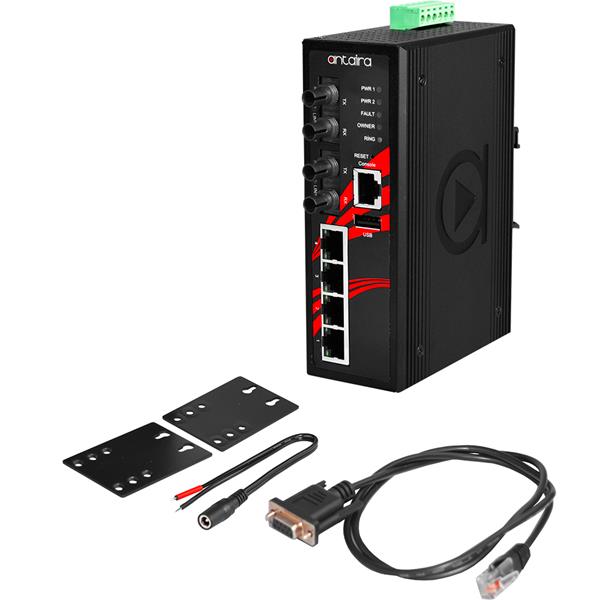

Included
