Switch LMX-0800G (8*10/100/1000Tx) Layer 3

LMX-0800G

LMX-0800G-T (EoT: -40~75C)

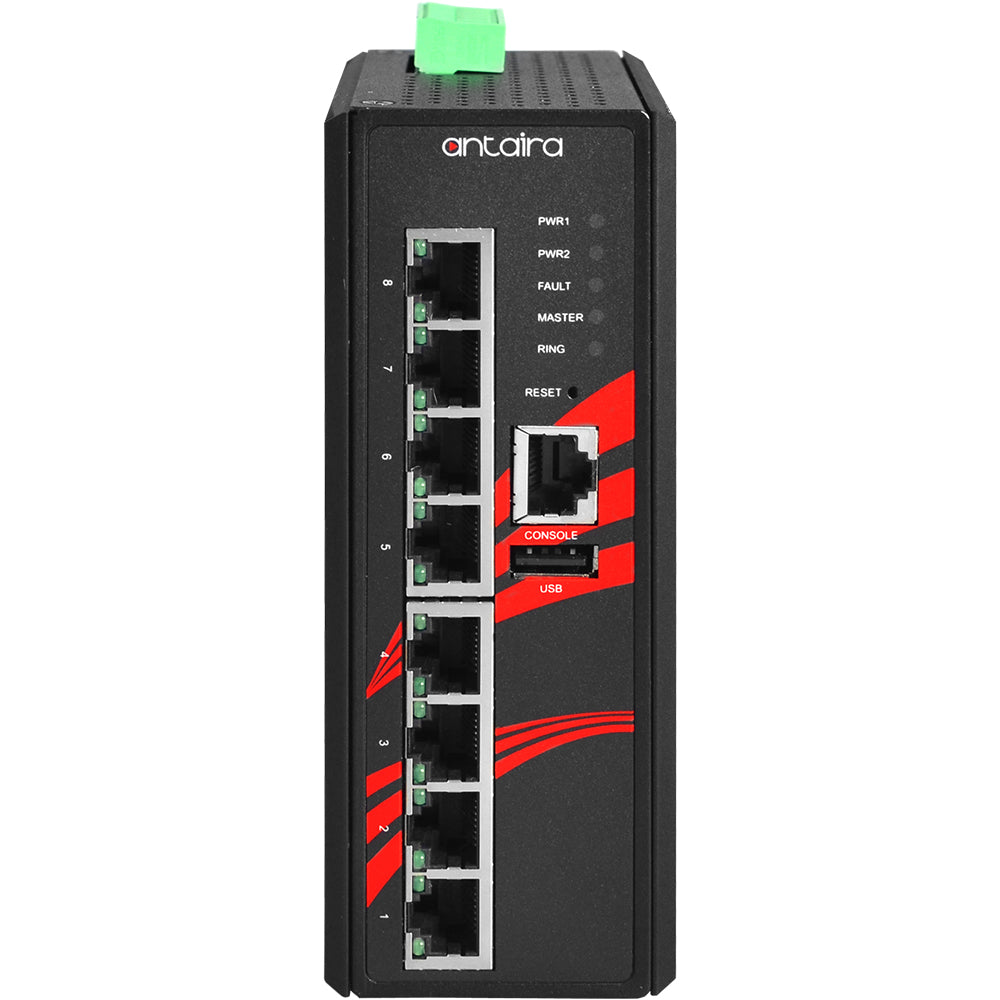

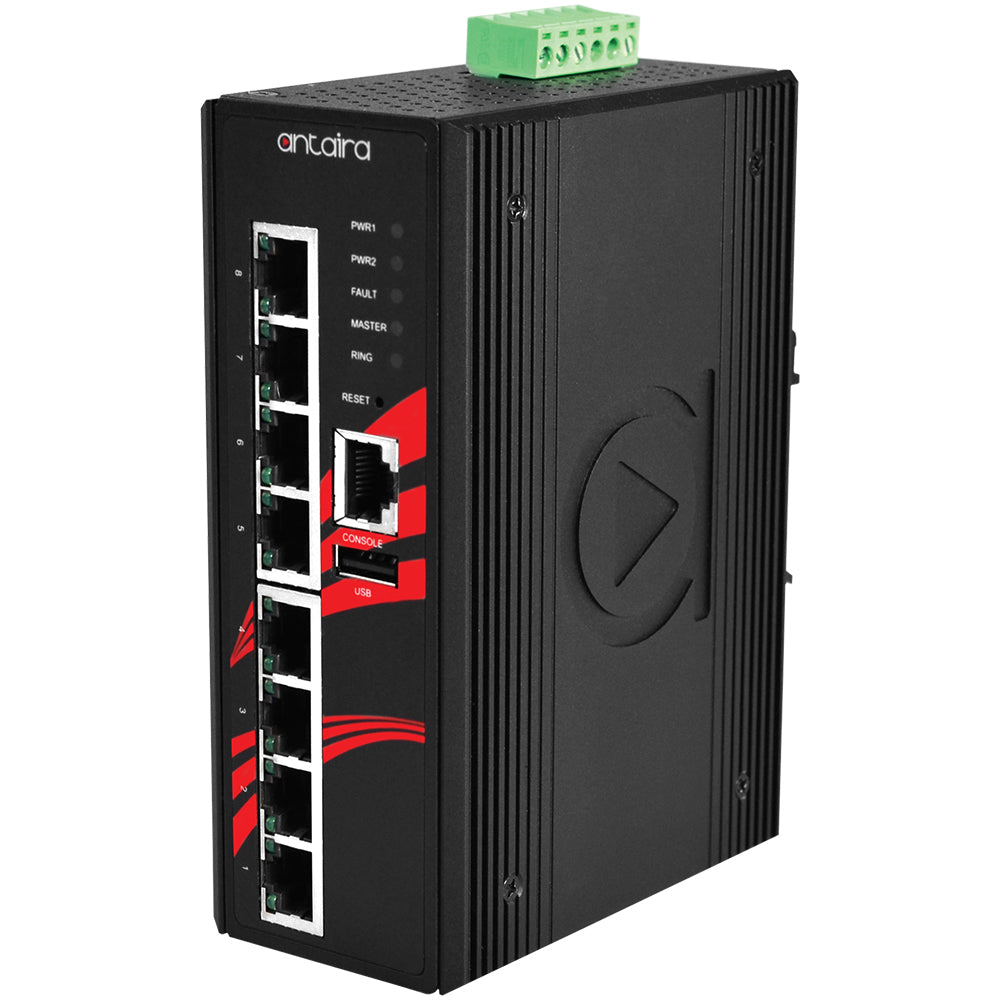

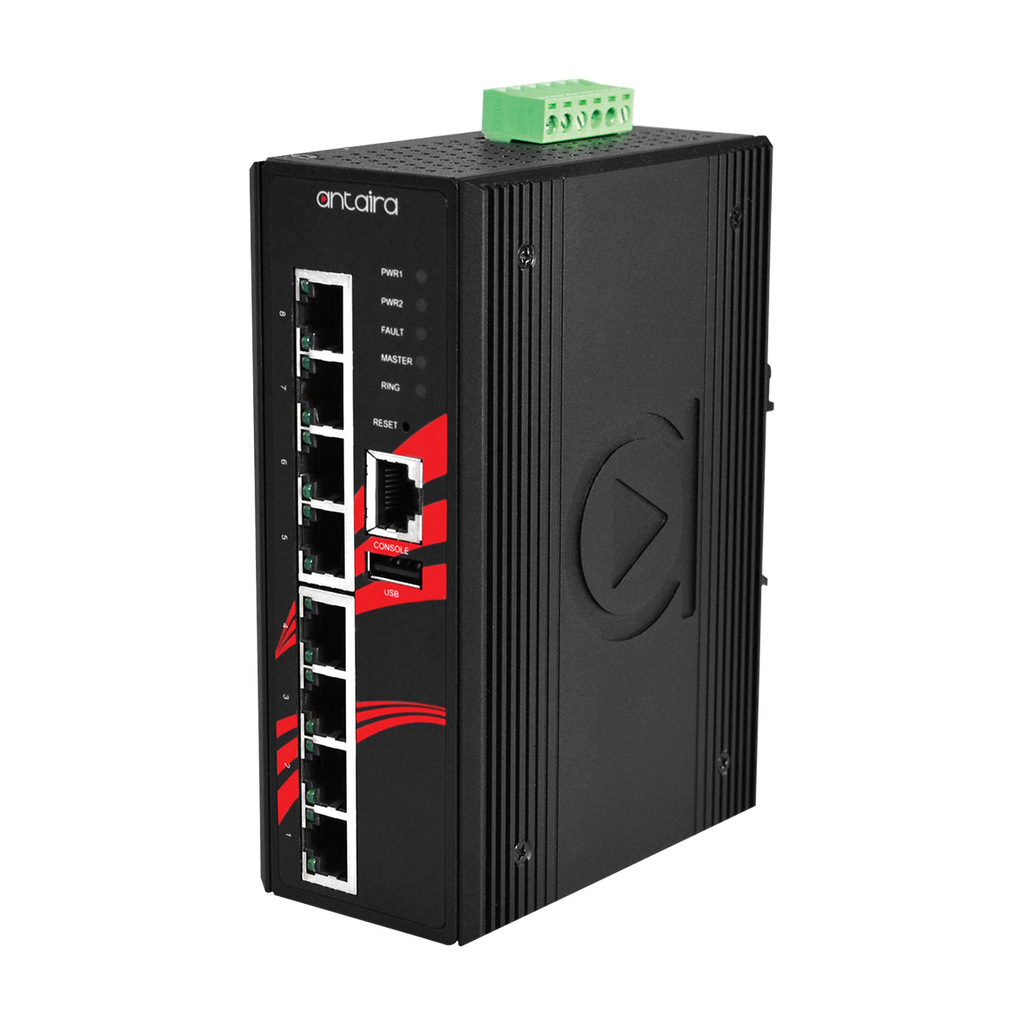

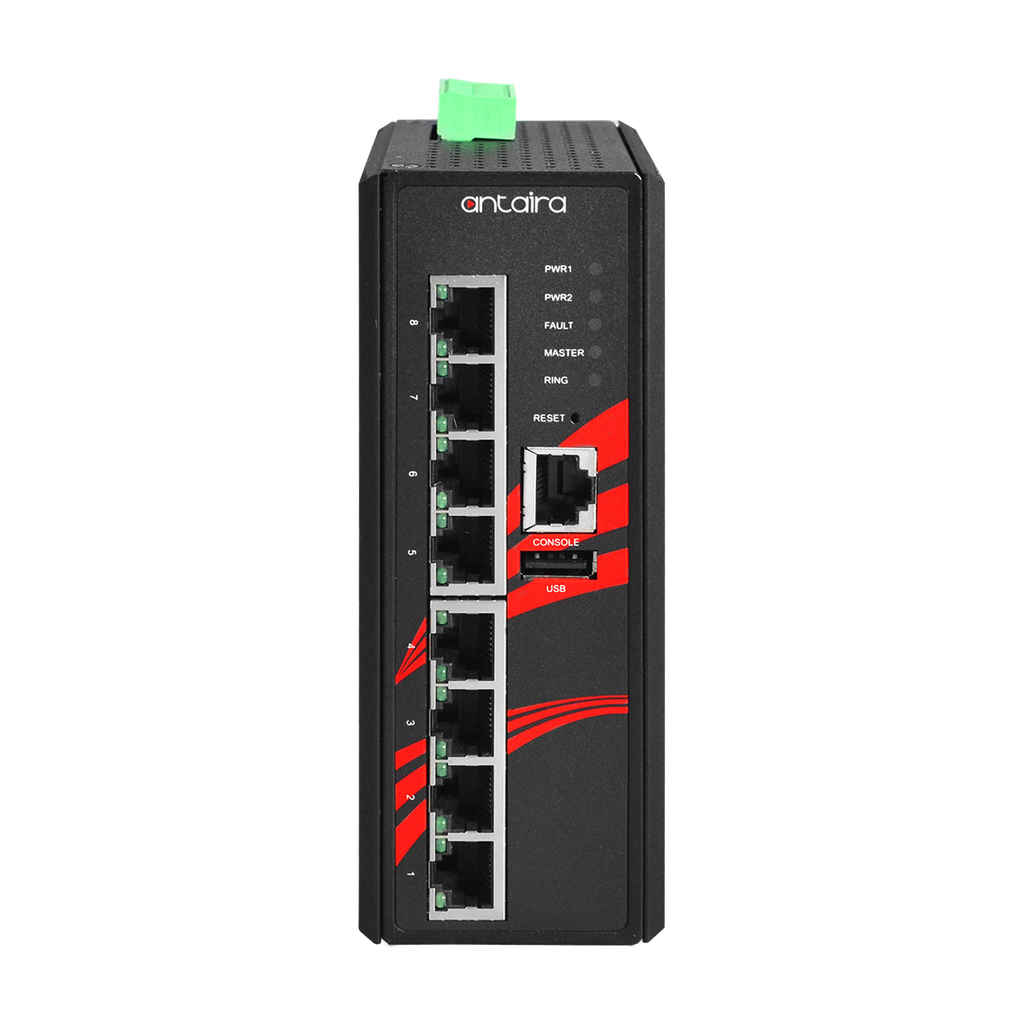

8-port industrial Gigabit Light Layer 3 managed Ethernet switch with 8*10/100/1000Tx ports

Antaira’s LMX-0800G is an 8-port industrial Gigabit Light Layer 3 managed Ethernet switch equipped with 8*10/100/1000Tx Gigabit ports. This model is a fully manageable industrial Ethernet switch preloaded with standard Light Layer 3 network management software.

The LMX-0800G features a compact form factor, an IP30 rating, DIN-rail mounting, and support for a standard operating temperature range of -10°C to 70°C or an EOT range of -40°~75°C (LMX-0800G-T model). It also provides high EFT and ESD protection for industrial networking applications in factory automation, ITS, power/utilities, water and wastewater, security, or any other outdoor or harsh environment.

• Supports 8*10/100/1000Tx Gigabit ports
• Network broadcast storm protection
• Supports network redundancy: RSTP/MSTP and G.8032 ERPS (recovery time <50ms)
• Configuration: Web console, serial console, and CLI commands
• Supports IGMP v1/v2
• Supports QoS (IEEE 802.1p) and CoS/ToS
• Supports IEEE 802.1Q VLAN and SNMP v1/v2c/v3
• Redundant 12~48VDC power input design with a built-in relay output for port failure alarms
• System warning settings for automatic e-mail alerts

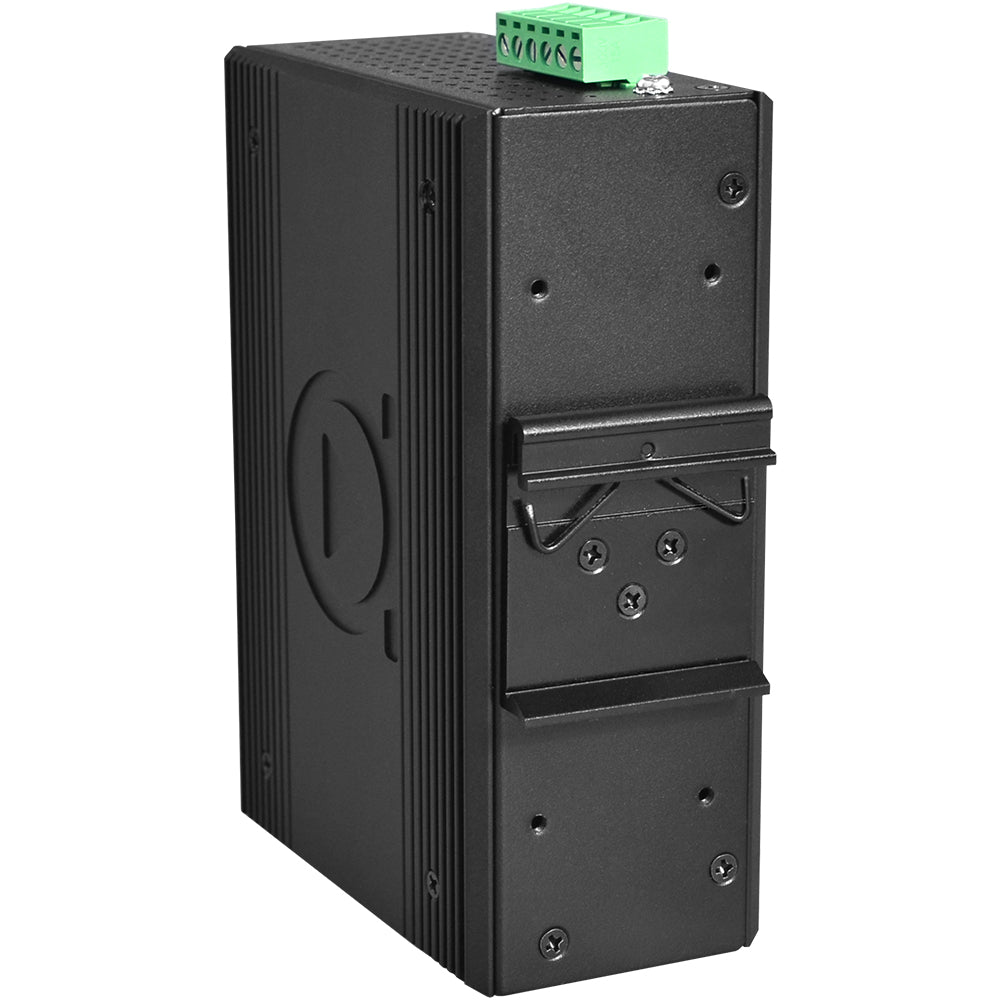

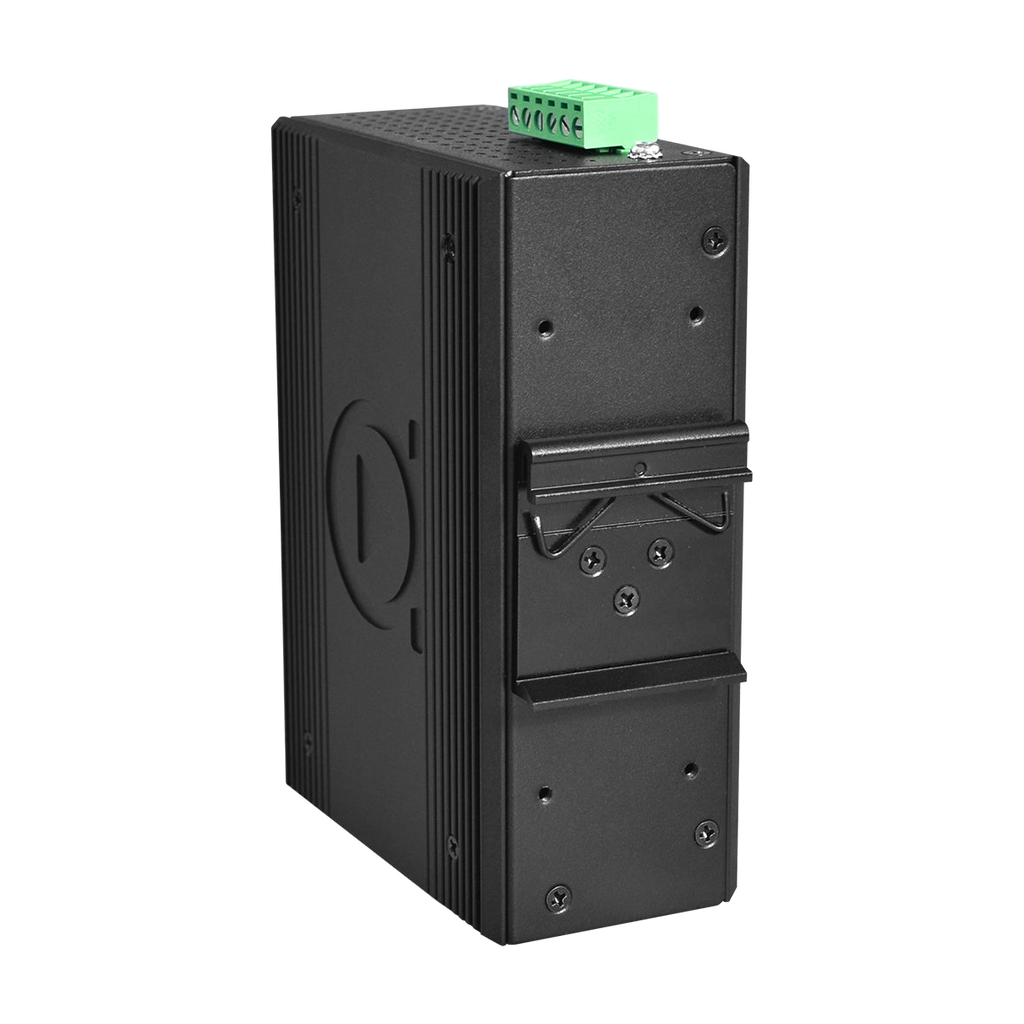

• DIN-rail and wall-mount support
• Operating temperature range — STD: -10° to 70° C / EOT: -40°~75°C
• 5-year warranty

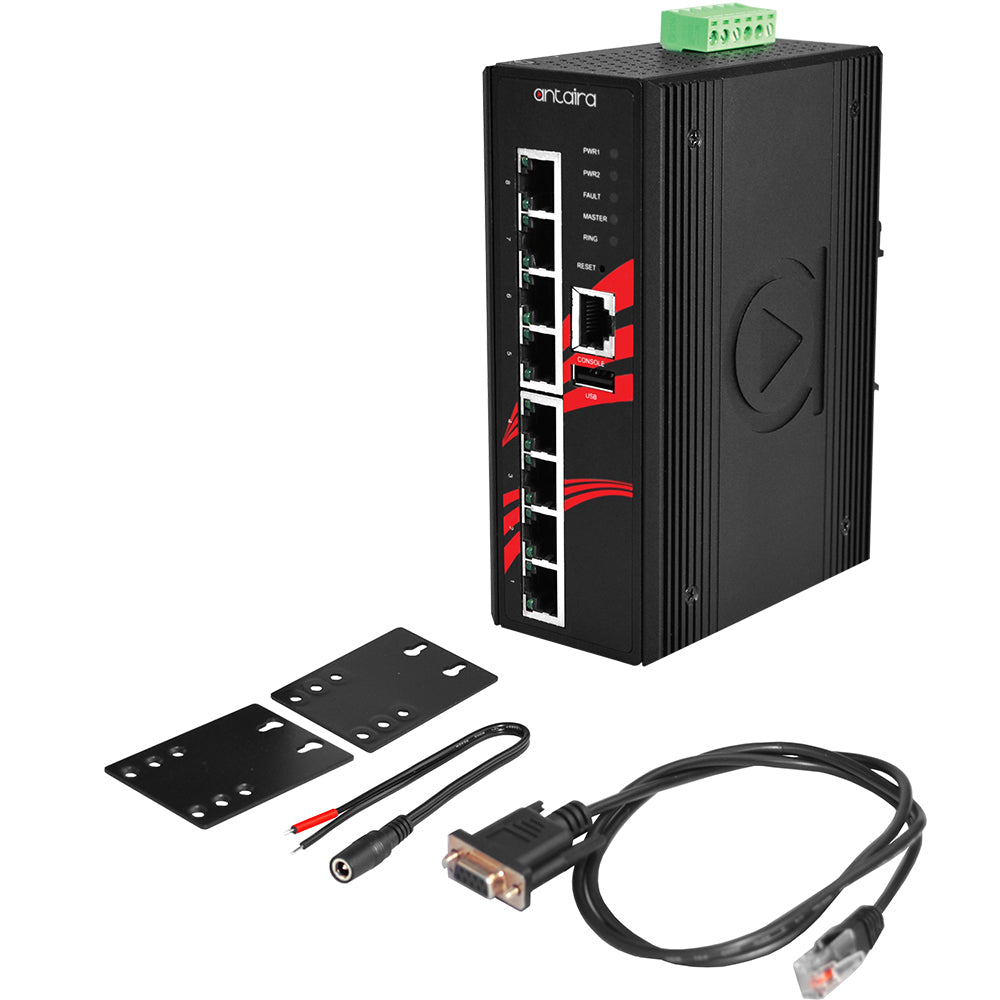

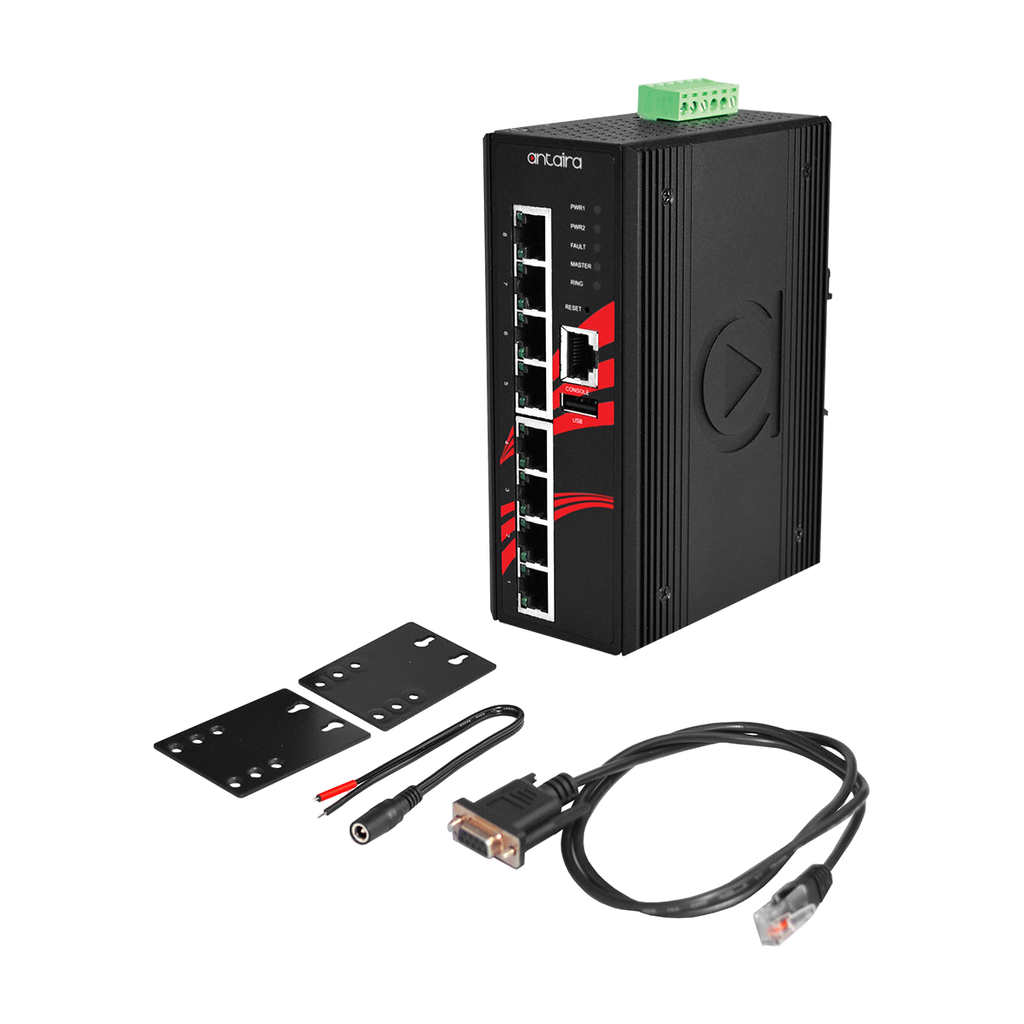

Included

• 1 - DC cable –18 AWG to DC jack 5.5x2.1mm
• 1 - LMX-0800G
• 1 - RJ45-to-DB9 serial console cable
• 2 - Wall-mounting brackets and screws
