Switch LMX-0802-ST-S3 (6*10/100BaseTx + 2* 100Fx ST, SM 30Km)

LMX-0802-ST-S3

LMX-0802-ST-S3-T (EoT: -40~75C)

8-Port Industrial Managed Ethernet Switch with 6*10/100Tx Ports + 2*100Fx (ST) Single-Mode 30Km Fiber Ports

Antaira’s LMX-0802-ST-S3 is an 8-port industrial managed Ethernet switch equipped with 6*10/100Tx Fast Ethernet ports and 2*100Fx single-mode ST fiber ports. This model is a fully manageable industrial Ethernet switch supplied with standard Layer 2 network management software.

The LMX-0802-ST-S3 features a compact form factor, an IP30 rating, DIN-rail mounting, and support for a standard operating temperature range of -10°C to 70°C or -40°C to 75°C (model LMX-0802-ST-S3-T). It also provides high EFT and ESD protection for industrial networking applications in factory automation, ITS, power/utilities, water and wastewater, security, or other outdoor/harsh environments.

• Network Broadcast Storm Protection
• Supports 6*10/100Tx Fast Ethernet Ports + 2*100Fx Single-Mode ST Fiber Ports
• Supports network redundancy: RSTP/MSTP and G.8032 ERPS (recovery time <50ms)
• Configuration: Web console, serial console, and CLI commands
• Supports IGMP v1/v2
• Supports QoS (IEEE 802.1p) and CoS/ToS
• Supports IEEE 802.1Q VLAN and SNMP v1/v2c/v3
• Redundant 12~48VDC power input design with a built-in relay output for port failure alarms
• System warning settings for automatic e-mail alerts
• DIN-rail and wall-mount support
• Operating Temperature Range - STD: -10° to 70° C / EOT: -40° to 75° C
• 5-year warranty

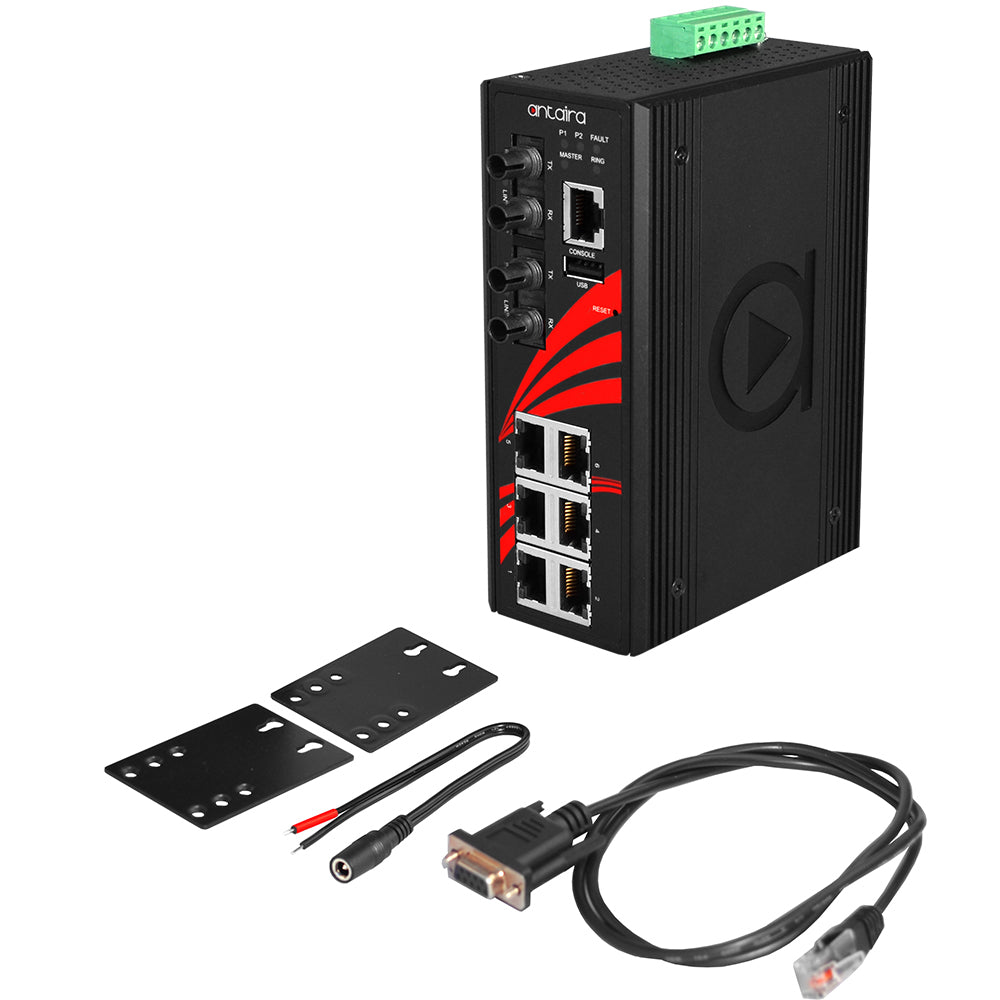

Included

• 1 - LMX-0802-ST-M
• 2 - Wall-Mounting Brackets and Screws
• 1 - 18 AWG DC Cable to 5.5x2.1mm DC Jack
• 1 - RJ45-to-DB9 Serial Console Cable
