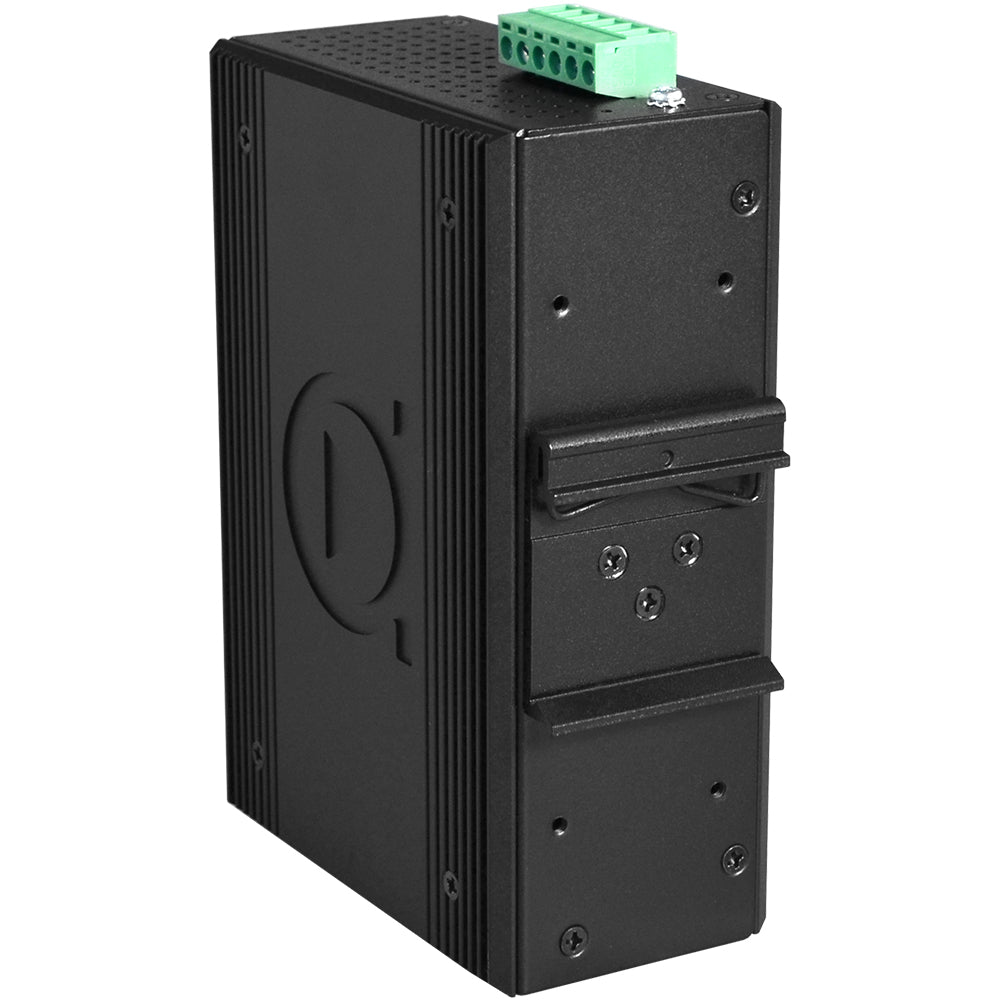

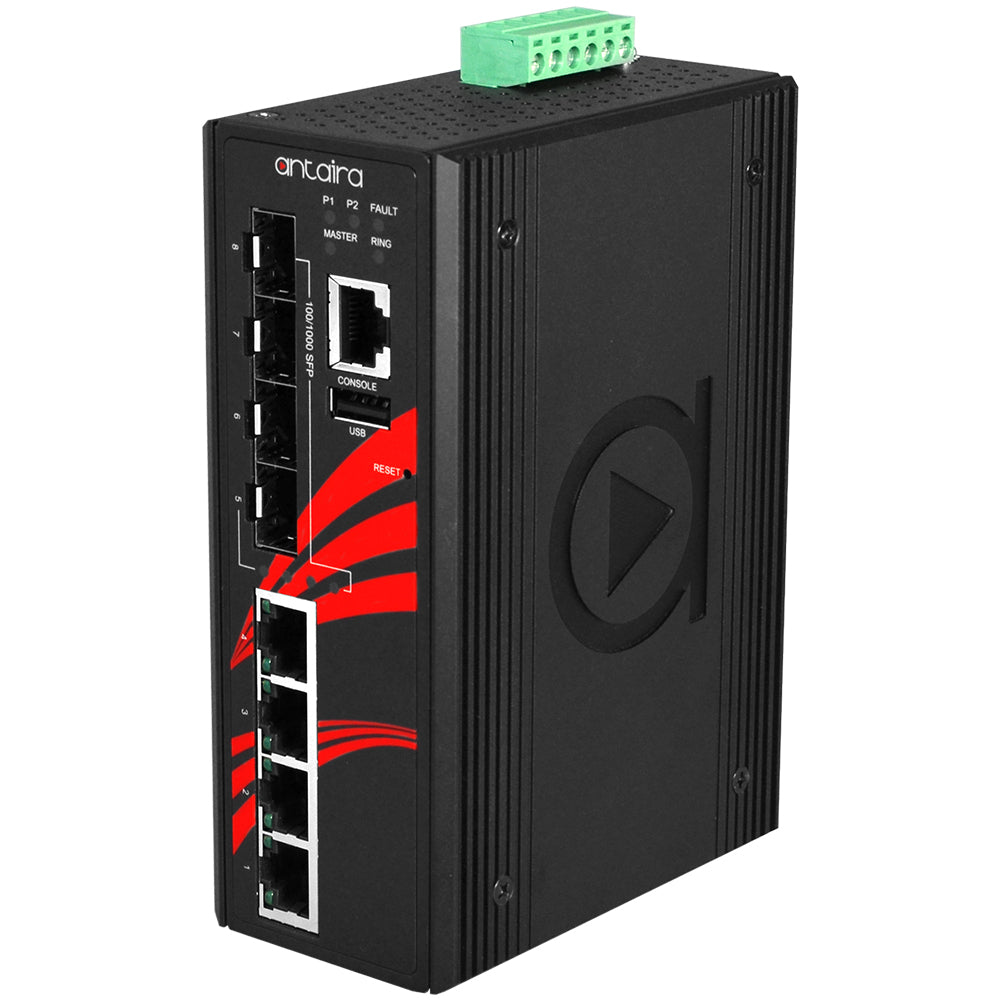

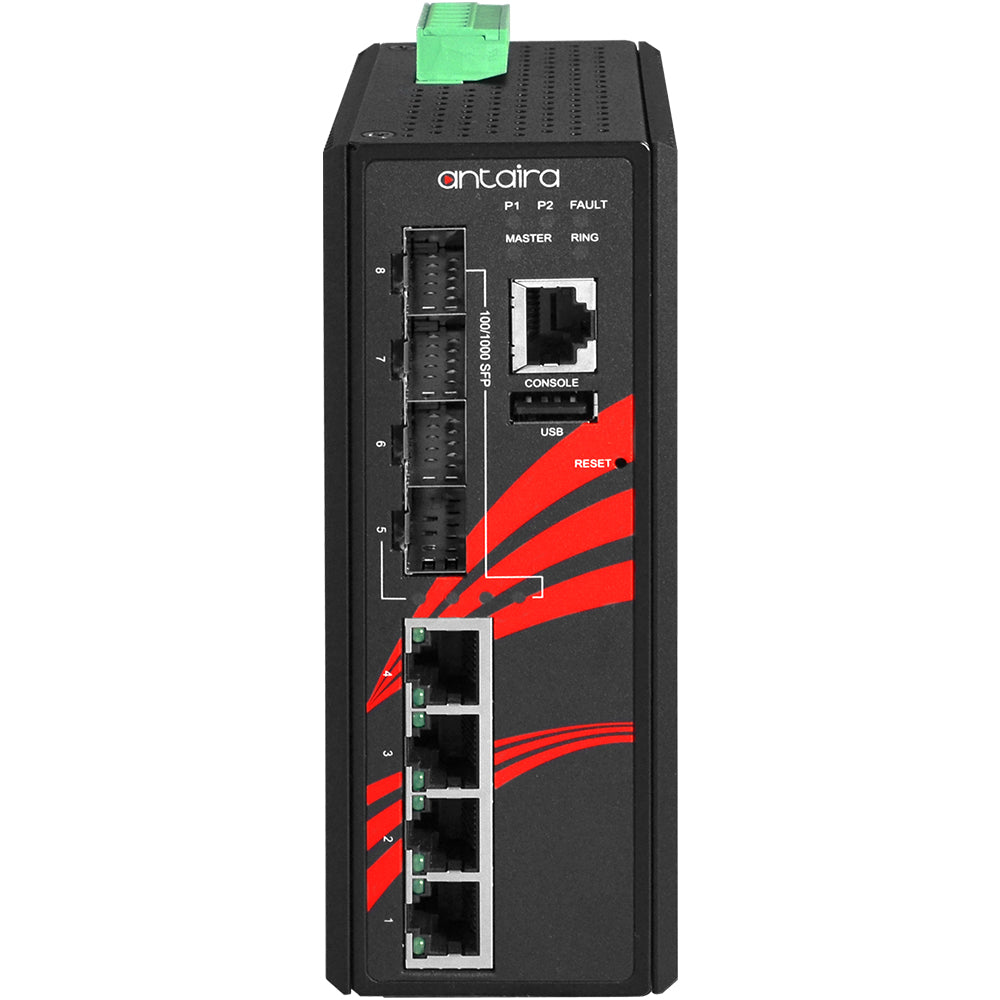

Switch LMX-0804G-SFP (4*10/100/1000Tx + 4*100/1000Fx SFP)

LMX-0804G-SFP

LMX-0804G-SFP-T (EoT: -40~75C)

8-port industrial Gigabit Light Layer 3 managed Ethernet switch with 4*10/100/1000Tx ports + 4*100/1000Fx SFP fiber slots.

Antaira’s LMX-0804G-SFP is an 8-port industrial Gigabit Light Layer 3 managed Ethernet switch equipped with 4*10/100/1000Tx Gigabit ports and 4*100/1000Fx SFP ports. This model is a fully manageable industrial Ethernet switch supplied with standard Light Layer 3 network management software.

The LMX-0804G-SFP features a compact form factor, an IP30 rating, DIN-rail mounting, and support for a standard operating temperature range of -10°C to 70°C or -40°C to 75°C (model LMX-0804G-SFP-T). It also provides high EFT and ESD protection for industrial networking applications in factory automation, ITS, power/utilities, water and wastewater, security, or other outdoor/harsh environments.

• Network Broadcast Storm Protection
• Supports 4*10/100/1000Tx Gigabit Ports + 4*100/1000Fx SFP Slots
• Supports network redundancy: RSTP/MSTP and G.8032 ERPS (recovery time <50ms)
• Configuration: Web console, serial console, and CLI commands
• Supports IGMP v1/v2
• Supports QoS (IEEE 802.1p) and CoS/ToS
• Supports IEEE 802.1Q VLAN and SNMP v1/v2c/v3
• Redundant 12~48VDC Power Input Design + Built-in Relay Output for Port Failure Alarm
• System warning settings for automatic e-mail alerts
• DIN-rail and wall-mount support
• Operating Temperature Range - STD: -10° to 70°C / EOT: -40º to 75ºC
• 5-year warranty

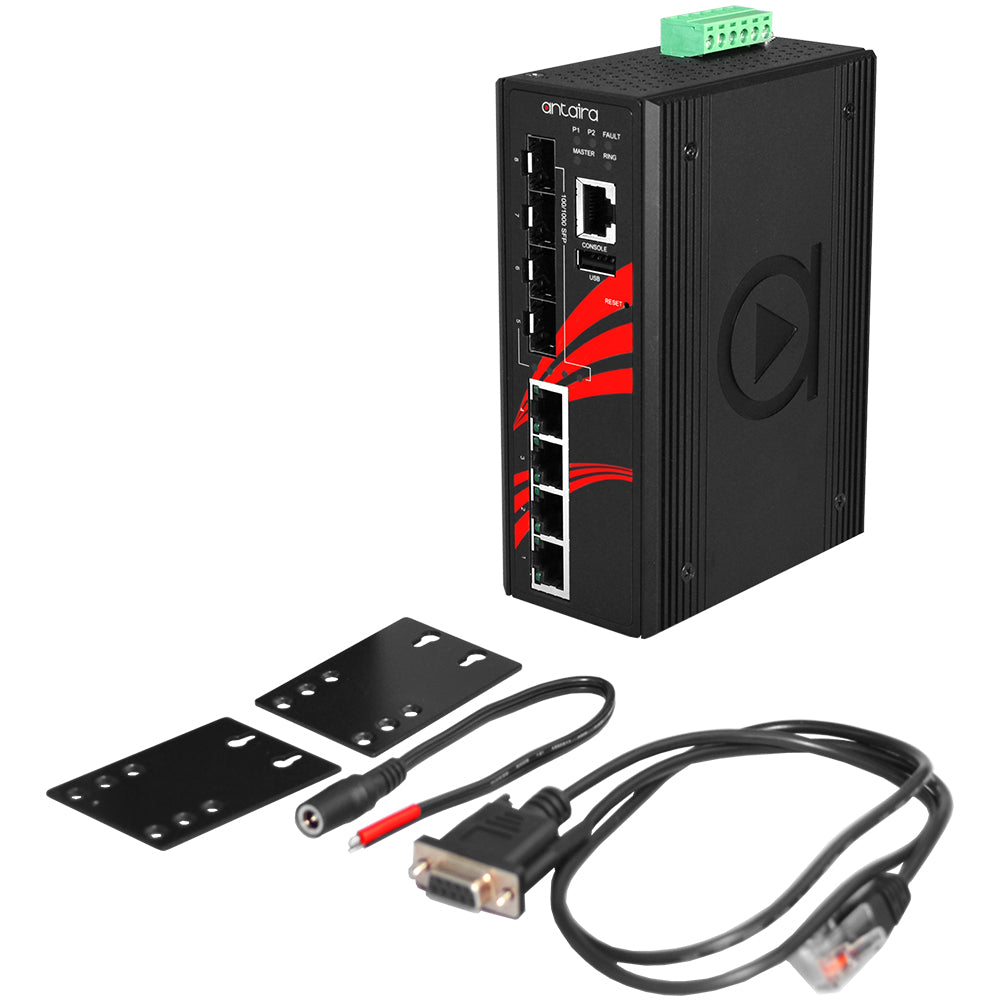

Included

• 1 - DC cable –18 AWG to DC jack 5.5x2.1mm
• 1 - LMX-0804G-SFP-T
• 1 - RJ45-to-DB9 serial console cable
• 2 - Wall-mounting brackets and screws
