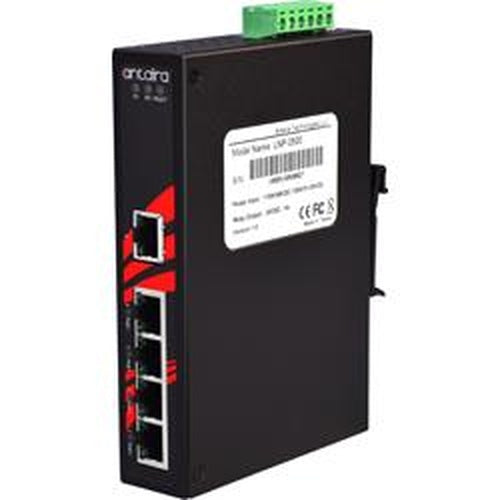

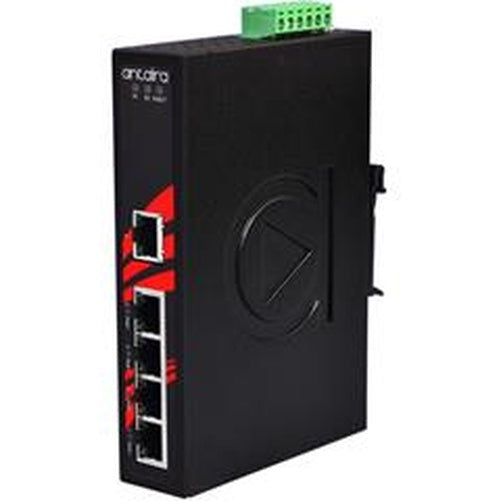

PoE+ Switch LNP-0500-24-T (4*10/100Tx ports at 30W per port + 1*10/100Tx port)
Antaira's LNP-0500 is an intelligent 5-port unmanaged industrial Ethernet switch supporting IEEE-802.3at (Power-over-Ethernet Plus) on ports 1 to 4. It features a redundant -12 ~ 36VDC power input. It can also be used as power sourcing equipment (PSE); in this configuration, the LNP-0500 centralizes power delivery and provides up to 30 watts of power per port. The LNP-0500 can power powered devices (PD) compliant with IEEE 802.3af or 802.3at, eliminating the need for an additional power supply. It supports IEEE 802.3 / 802.3u / 802.3x with 10 / 100BTx, full / half duplex and automatic MDI / MDI-X detection, providing a cost-effective solution for industrial Ethernet networks. In addition, network storm protection and the internal relay warning function alert network administrators when power failures or port interruptions occur.

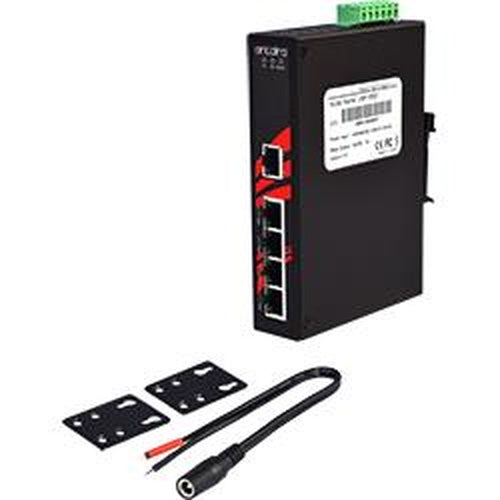

Included
- LNP-0500-24
- Mounting brackets
LNP-0500-24
- Network storm protection
- 4-port PoE+ function compatible with IEEE 802.3at, with 30W / port
- 1-port Fast Ethernet 10 / 100Tx
- Supports automatic MDI / MDI-X functionality
- 2K MAC address table
- Surge protection: supports 2.000 VDC
- ESD protection: supports 6.000 VDC
- Redundant power input design - 12 ~ 36VDC
- 1 built-in relay output for port interruption alarm
- Rugged IP30 aluminum enclosure design
- Supports DIN-rail and wall mounting
- Operating temperature range — STD: -10° to 70° C
- 5-year warranty
