Switch PoE+ LNP-1002C-SFP-T (8*10/100Tx + 2* GB Combo)

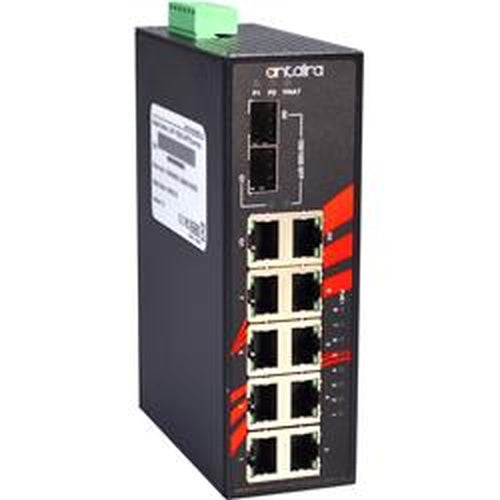

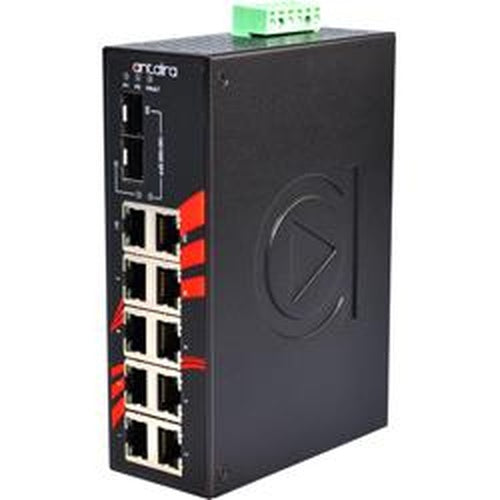

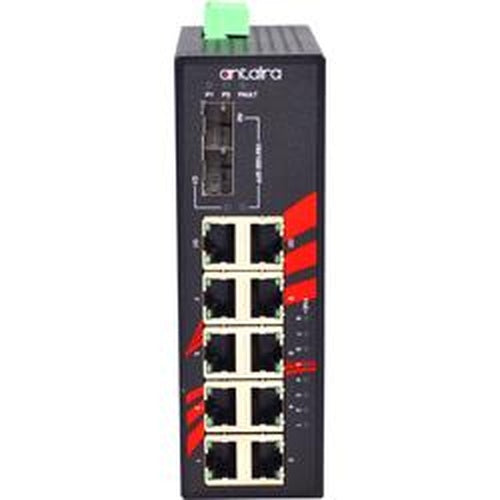

Antaira's LNP-1002C-SFP is an unmanaged industrial PoE+ Gigabit Ethernet switch with an IP30 rating and DIN-rail mounting. Each unit incorporates eight 10 / 100Tx Fast Ethernet ports compliant with IEEE 802.3at (power-over-Ethernet plus) and two Gigabit combo ports, with two 10/100 / 1000Tx Fast Ethernet ports and dual-rate SFP slots (100/1000) , making it ideal for applications requiring high bandwidth and long-distance communication.
This product series provides high EFT and ESD protection against unregulated voltage and is suitable for harsh environments. It supports power redundancy through a dual power-input design with reverse-polarity protection. In addition, the built-in relay alarm function alerts maintenance personnel when power failures occur. It is an ideal solution for harsh environments and industrial applications.
The LNP-1002C-SFP series includes two models: one with a standard operating temperature range of -10 to 70 ° C and another with an extended operating temperature range of -40 to 75 ° C. It is designed to meet specific requirements in industrial automation, outdoor applications and environments with adverse climatic conditions.
Included
1 - LNP-1002C-SFP
2 - Wall-mounting brackets and screws
1 - DC cable –18 AWG and DC jack 5.5x2.1mm
LNP-1002C-SFP
- Supports IEEE 802.3at PoE on 8/10 / 100Tx, 802.3at +, with 30W per port, + 2 Gigabit combo ports
- Supports automatic MDI / MDI-X functionality
- Non-blocking switching architecture
- 8K MAC address table
- Surge protection: supports 2,000 VDC
- ESD protection: supports 6,000 VDC
- Redundant power-input design: 48 ~ 55VDC
- 1 built-in relay output for power-failure warning
- Rugged IP30 metal enclosure design

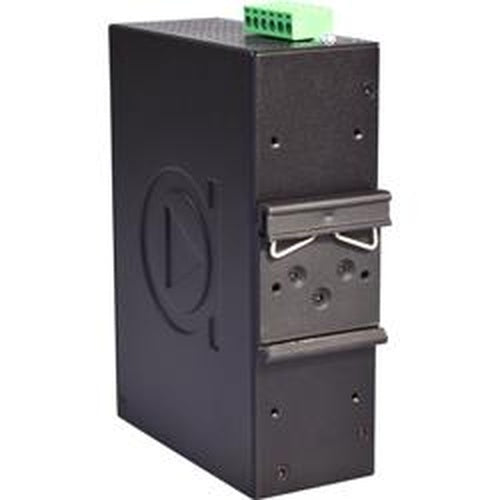

- Supports DIN-rail and wall mounting
- STD operating temperature range: -10° to 70° C
- 5-year warranty
