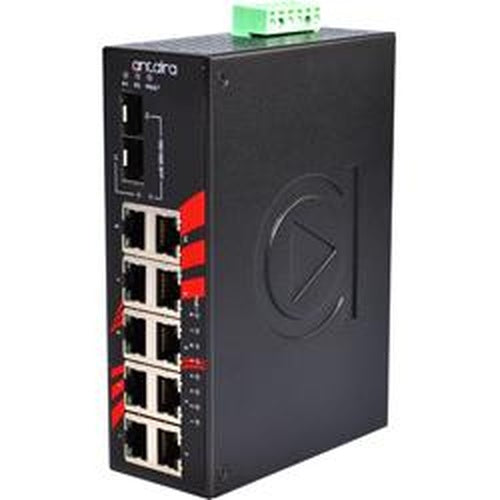

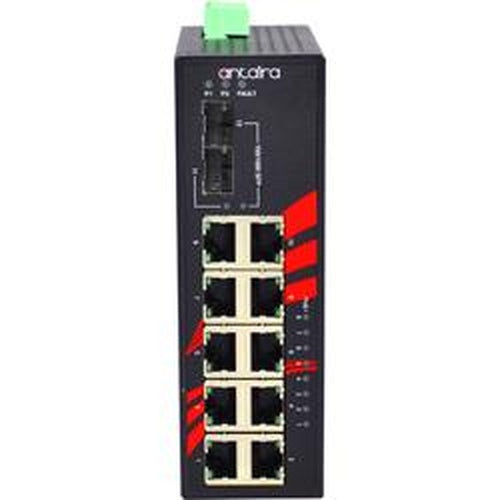

Switch PoE+ LNP-1202G-SFP-T (10*10/100/1000Tx + 2*SFP)
Antaira's unmanaged industrial PoE + Gigabit Ethernet switch LNP-1202G-SFP features an IP30 rating and DIN-rail mounting. The unit is designed with 10 Gigabit Ethernet ports, of which 8 ports support IEEE 802.3at (PoE +), with a maximum of 30 W / Port; it also includes two dual-rate SFP slots (100/1000), making it ideal for applications requiring high bandwidth and long-distance communication.
This product provides high EFT and ESD protection against voltage fluctuations and is suitable for harsh environments. It supports power redundancy through a dual power input design with reverse-polarity protection. In addition, the built-in relay warning function alerts maintenance personnel when power failures occur.
The LNP-1202G-SFP has an operating temperature range of -10 to 70 ° C and is specifically designed to meet specialized requirements in industrial automation, outdoor applications or harsh climatic environments.

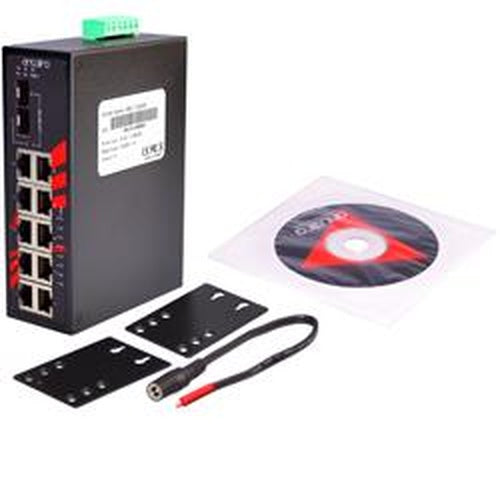

Included
1 - LNP-1202G-SFP
2 - Wall-mounting brackets and screws
1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
LNP-1202G-SFP
- Supports 8 * 10/100 / 1000Tx ports (30W / port), 2 * 10/100 / 1000Tx ports + 2 * 100/1000 SFP ports
- Supports automatic MDI / MDI-X functionality
- Store-and-forward switching architecture
- 24 Gbps backplane (switching fabric)
- 8K MAC address table
- Supports 9.6Kbytes jumbo frames
- Surge protection: supports 2,000 VDC
- ESD protection: supports 6,000 VDC
- Redundant power input: 48 ~ 55VDC
- 1 integrated relay output for power failure detection
- Rugged IP30 metal enclosure design

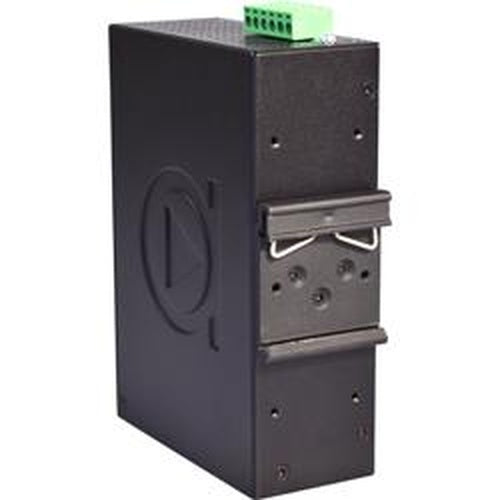

- Supports DIN-rail and wall mounting
- Operating temperature range: -10 ° to 70 ° C
- 5-year warranty
