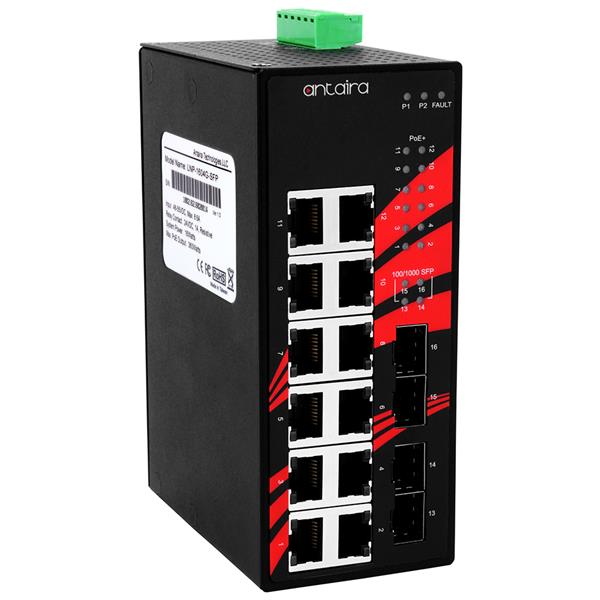

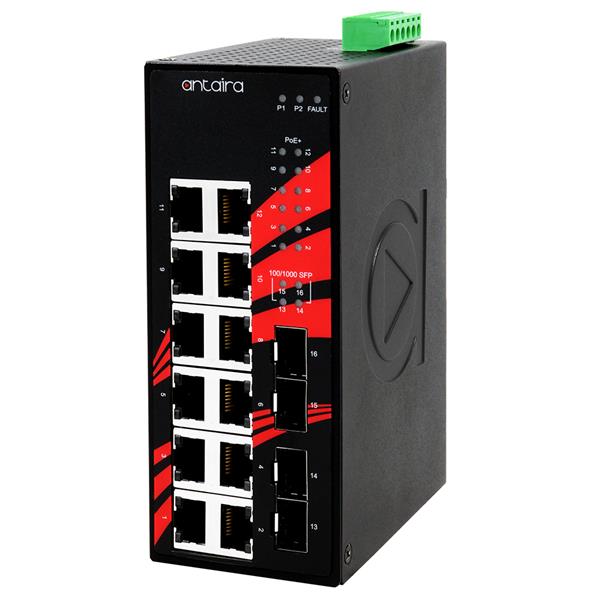

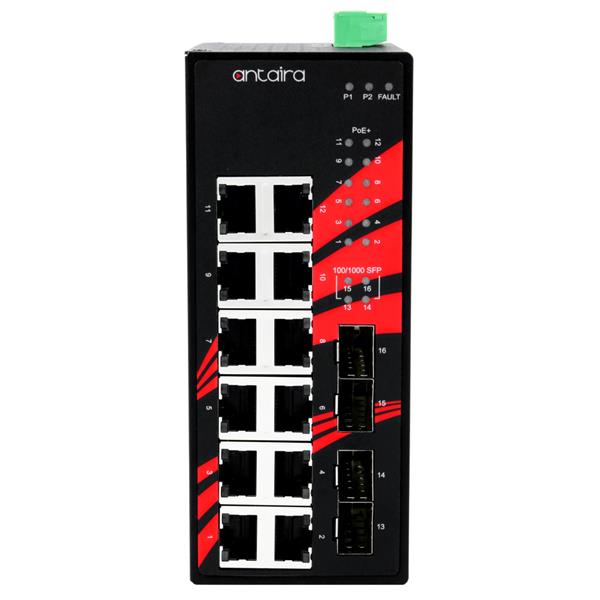

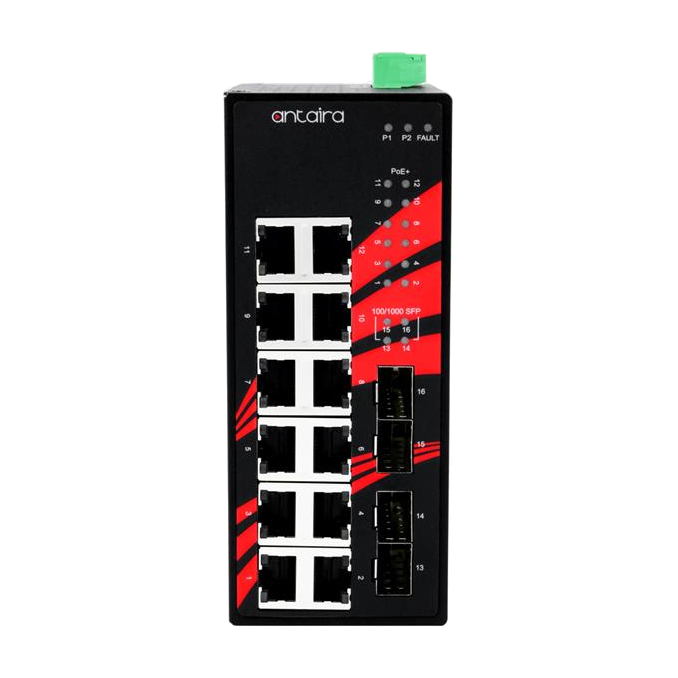

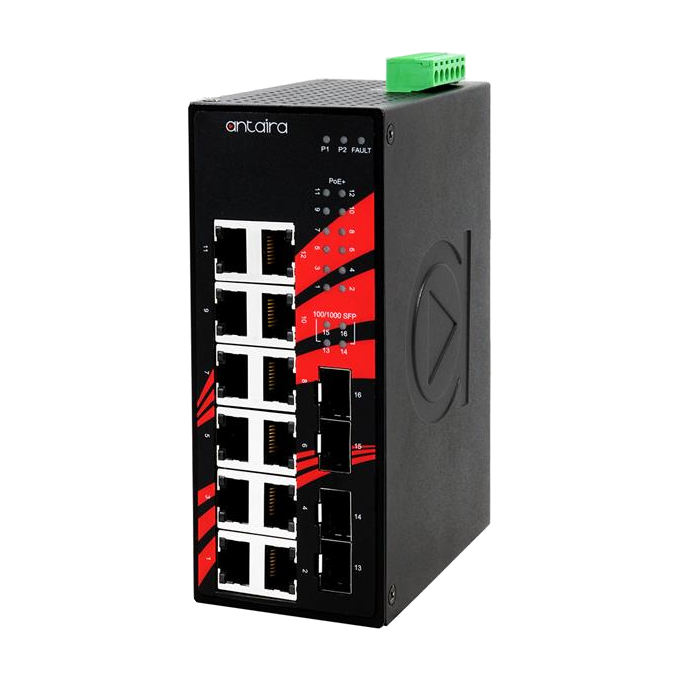

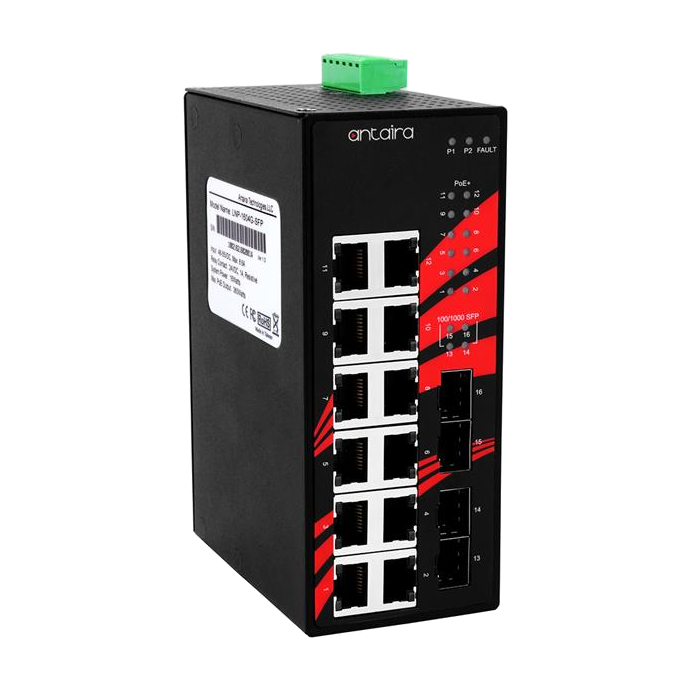

Switch PoE+ LNP-1604G-SFP-T (12*10/100/1000Tx + 4*SFP)
The Antaira Technologies LNP-1604G-SFP series comprises unmanaged industrial PoE + Gigabit Ethernet switches with twelve 10/100 / 1000TX RJ45 ports supporting the IEEE 802.3af / PoE / PoE + standards and delivering up to 30 watts per port. The device also features four dual-rate SFP slots (100/1000) for fibre connections. It has an IP30-rated design with DIN-rail and wall-mounting options. It is ideal for applications requiring high-density port connectivity, high-power PoE outputs, ample network bandwidth and multiple Gigabit fibre connections. The LNP-1604G-SFP series is well suited to industrial applications such as security video surveillance, GigE machine vision, process-control automation and intelligent transportation. This product series provides high EFT and ESD protection with redundant 48 ~ 55VDC power-input support. Two extended operating temperature models are available for environments from -10 to 70 ° C.
Included
1 - LNP-1604G-SFP
2 - Wall-mounting brackets and screws
1 - DC cable –18 AWG and DC jack 5.5x2.1mm
1 - Quick Installation Guide
LNX-2602G-SFP
Supports 12 * 10/100 / 1000Tx ports compliant with IEEE 802.3at PoE + (PSE: 30W / port), + 4 * 100/1000 SFP slots
Store-and-forward switching architecture
8K MAC address table
Jumbo Frame support: 12.2 KBbytes
Surge protection: supports 2,000 VDC
ESD protection: supports 6,000 VDC
Redundant power-input design: 48 ~ 55VDC
1 built-in relay output for power-failure warning
Rugged IP30 metal enclosure design

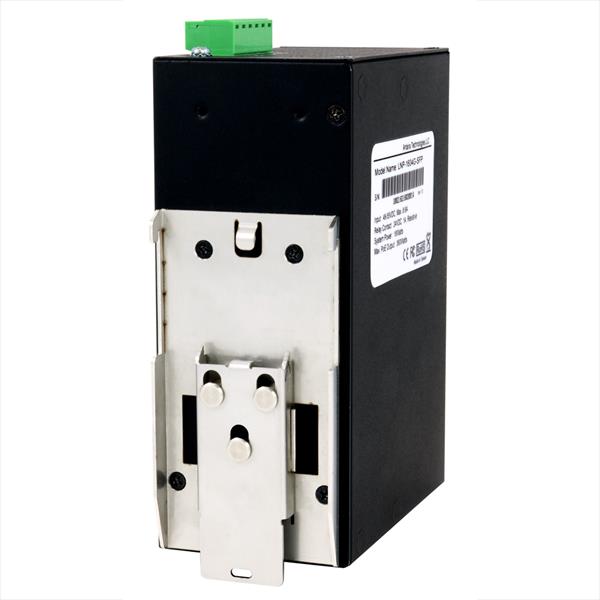

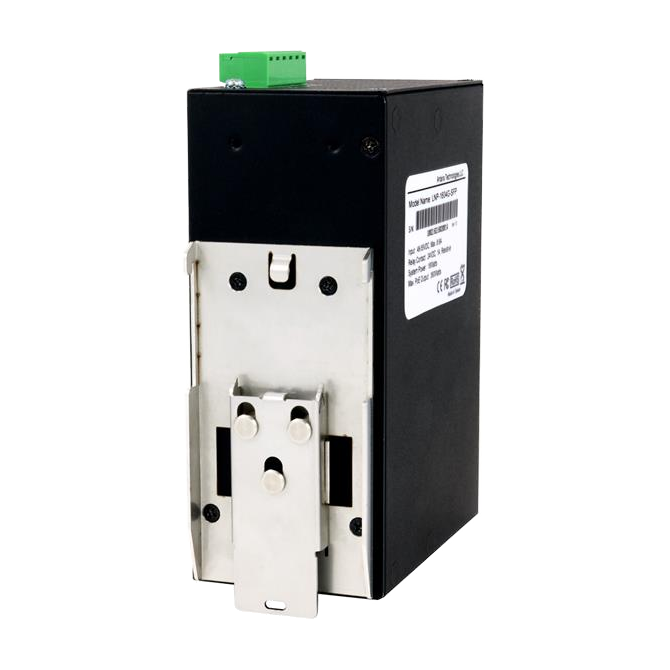

Supports DIN-rail and wall mounting
Operating temperature range — STD: -10 ° to 70 ° C
5-year warranty
| Jumbo Frame | 12,2 Kb |
| Input voltage | 48~55VDC, redundant input |
| Fiber port | 4*100/1000 SFP slots |
| Power consumption | 16W; (376W with full PSE load) |
| Operating temperature | STD: -10° to 70°C |
| Storage Temperature | -40°C ~ 85°C |
| EMS | EN61000-4-2,3,4,5,6,8 EN61000-6-2,4 |
| Free fall / Shock / Vibration | IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6 |
| IEEE | IEEE 802.3 10BaseTx Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3ab 1000BaseTx IEEE 802.3z |
| Warranty | 5 years |
| Dimensions | 59 x 99 x 142 mm (W*D*H) |
