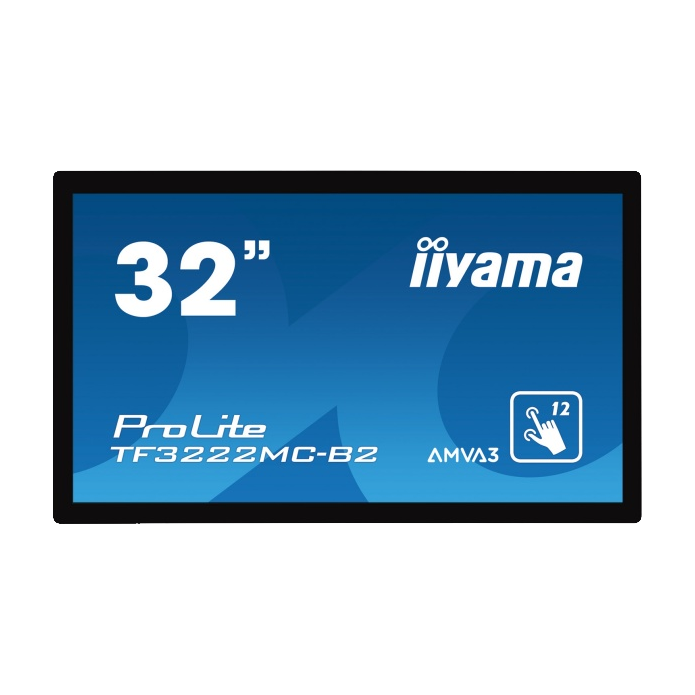

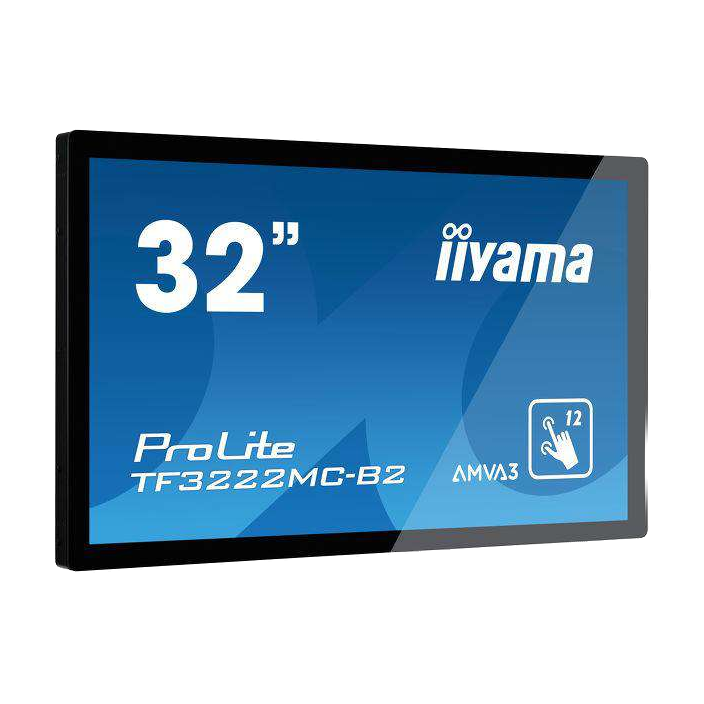

32' TF3222MC-B2 Open Frame Monitor
32” 12pt Open Frame touch monitor with an eye-catching slim bezel and high brightness
With 1920x1080 Full HD resolution and Projective Capacitive 12 point touch technology, the ProLite TF3222MC-B2 delivers seamless and accurate touch response. Featuring AMVA3 LED LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it an ideal display for Interactive Digital Signage. Its high brightness (500cd/m²) ensures crisp, clear images and excellent information delivery, even in brightly lit environments. In addition to its superb image quality, the screen features a rugged bezel, making it suitable for demanding environments. The Open Frame ProLite TF3222MC-B2 is the ideal solution for Interactive Digital Signage, Instore Retail, Kiosks, Gaming and Interactive Presentations.
| Operating time | 20/7 |
| Glass thickness | 3mm |
| Glass hardness | 7H |
| Water and dust protection | IP54 (front) |
| Housing (bezel) | metal |
| OSD key lock | yes |

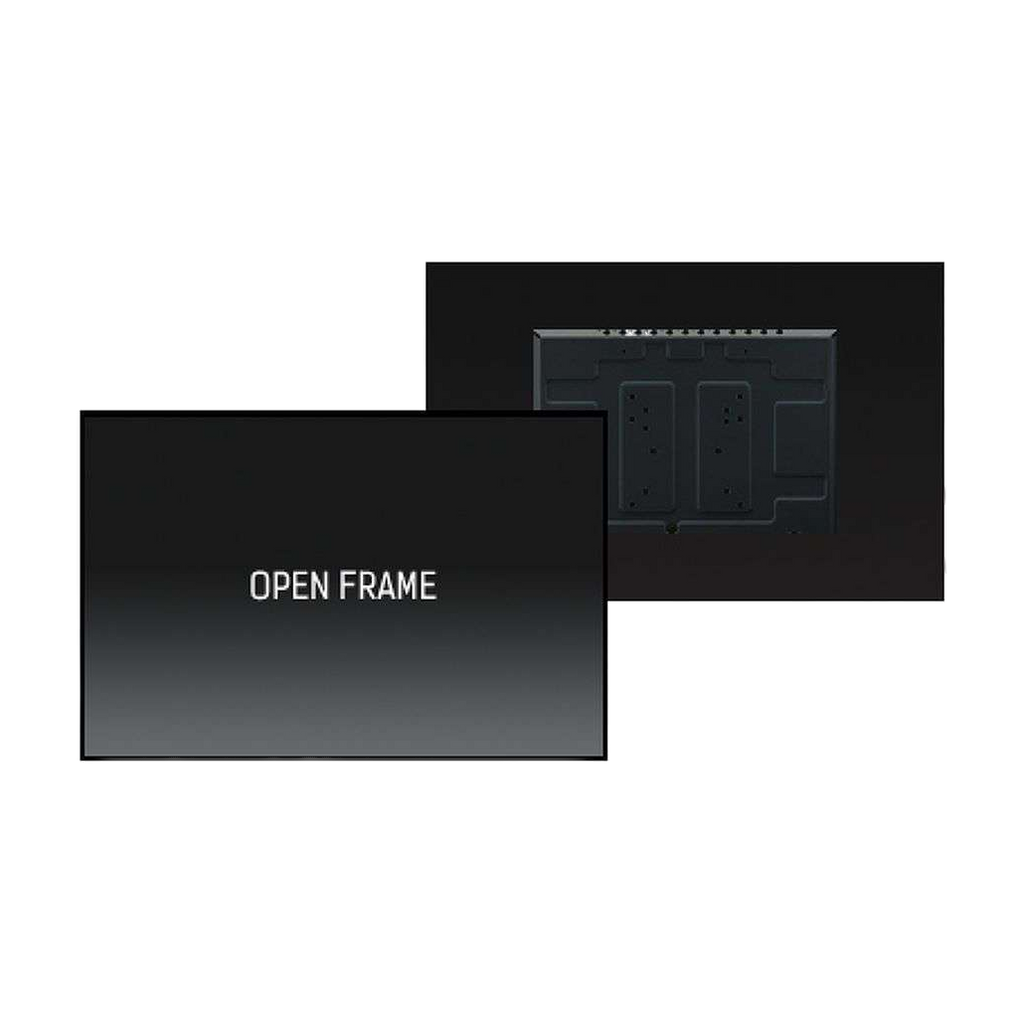

| Design | Open Frame |
| Diagonal | 31.5", 80cm |
| Panel | AMVA3 Edge LED |
| Native resolution | 1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Brightness | 500 cd/m² typical |
| Brightness | 425 cd/m² with touch |
| Static contrast | 3000:1 typical |
| Light transmittance | 85% |
| Response time | 8ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln 8bit (6bit + Hi-FRC) |
| Horizontal Sync | 31.47 - 67.5KHz |
| Vertical Sync | 47 - 63Hz |
| Viewable area W x H | 698.4 x 392.8mm, 27.5 x 15.5" |
| Pixel pitch | 0.364mm |
| Bezel colour and finish | black, matte |
| Cables | power, VGA, USB |
| Guides | Quick start guide, safety guide |
