Y-PWR (Hot-Swap / Power Sharing 5-30V, max. 2x 10A)
Price excludes VAT
34.00€
Sale price
Price excludes VAT
34.00€
Regular price
Total with VAT (23%): 41.82€
Shipping calculated at checkout.
Y-PWR
Hot Swap, Load Sharing Controller
- Precision load sharing solution
- Hot Swap / H.A. solution
- 2 channels, 30V
- 20 A output
- 10A per channel, 15A peak
- Low-loss 3.9 MOhm / 20A MOSFETS
- Each channel can be fully blocked
- Reduces power dissipation
- No reverse DC current
- Multiple Y-PWR devices can be tied together

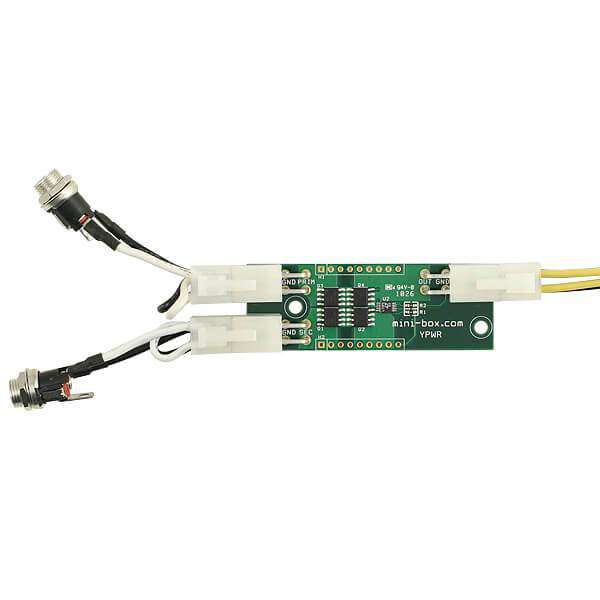

- Barrel-type and miniFIT JR cables included

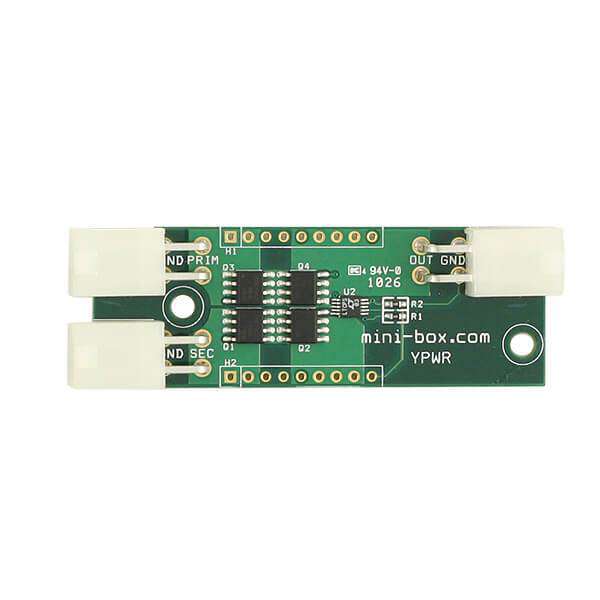

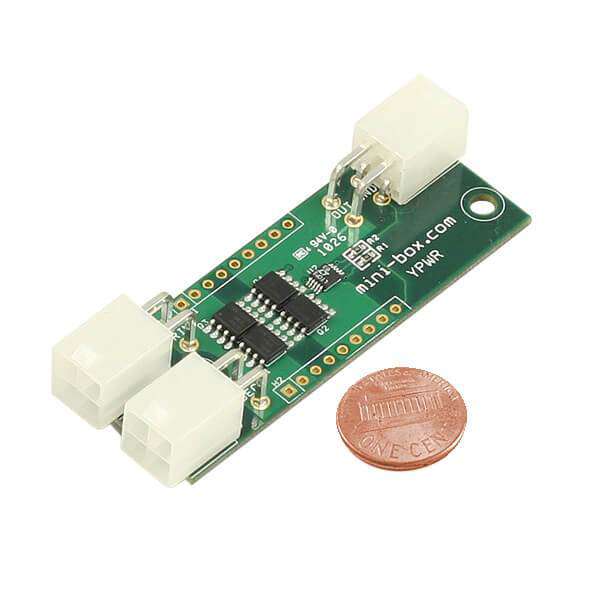

Y-PWR, Hot Swap, Load Sharing Controller
Y-PWR is a 20A, 30V ideal-diode OR. Two power sources, such as AC/DC adapters of equal voltage, can be used to combine their output power (load sharing) into a single high-power channel. This versatile device can be used as a Hot Swap, Load Sharing / High Availability or Power Path Controller, providing a low-loss, high-efficiency solution for AC/DC and/or battery power.
Usage example:
- Two 12V 90 watt adapters (higher wattage is also acceptable) can be tied together to produce a 12V 180watt output.
- Two 12V 90 watt adapters can be used as a high-availability (HA) power source solution. If one power source fails, Y-PWR automatically switches to the next available source.
- The Y-PWR board can be used to provide a smooth transition between an AC/DC wall adapter and a battery solution. The AC/DC input-source voltage must always be higher than the battery voltage. NOTE: No battery-charging solution is provided.
- For more sophisticated operation, each channel can be fully blocked via control pins, for example, under the control of a microprocessor.
- Multiple Y-PWR controllers can be tied together at their outputs to combine larger amounts of power.
